Circuit Protection Devices

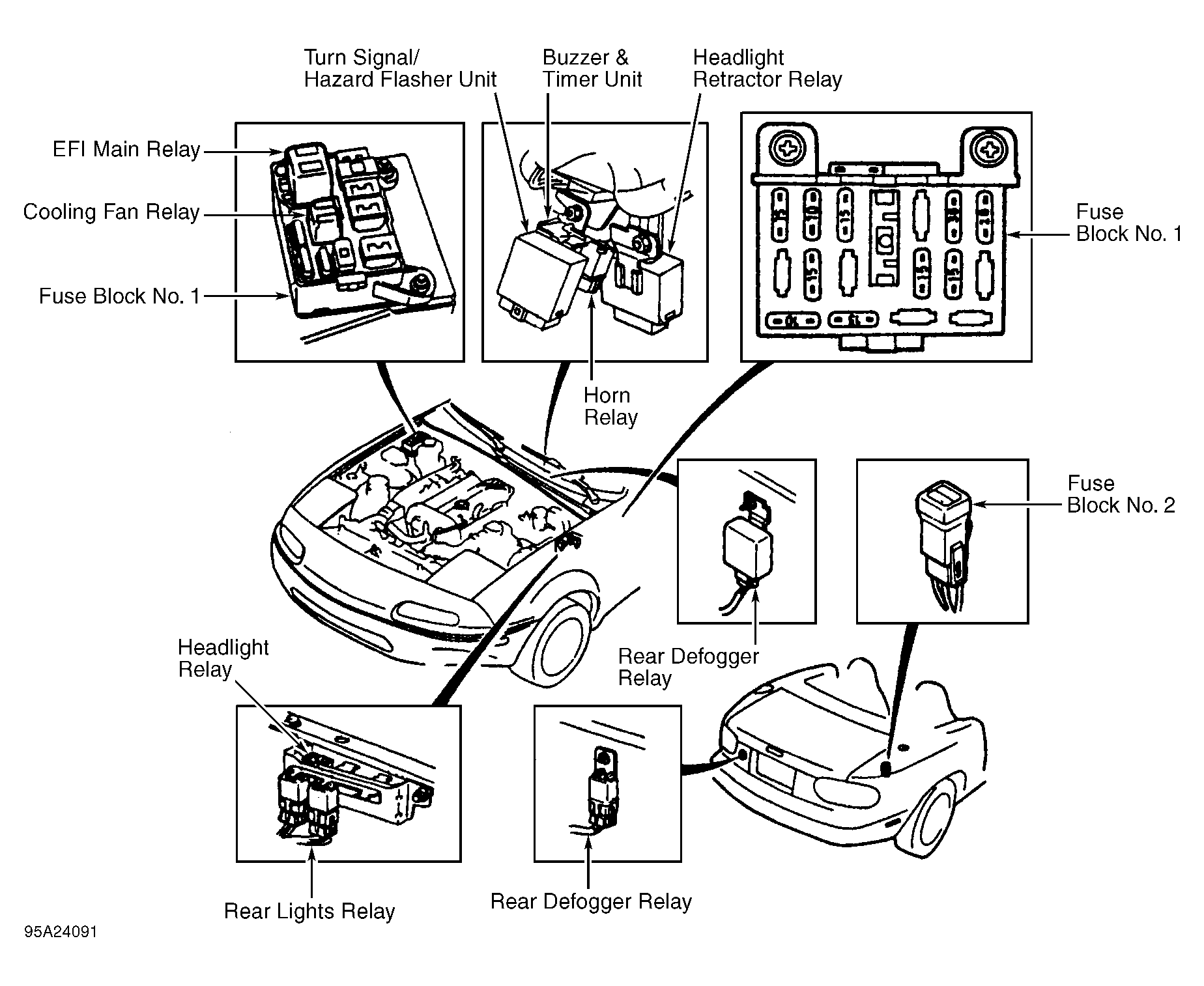

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Fuse Block No. 1 | Behind left side of dash. See Figure . |
| Fuse Block No. 2 | In right rear side of luggage compartment, behind trim panel. See Figure . |
| Fuse/Relay Block (Main) | On right rear corner of engine compartment, near firewall. |
| Heater Blower Motor Circuit Breaker | In passenger compartment fuse block. |
