Main Switch

Check continuity across specified terminals of main switch connector with main switch button held in specified position. See appropriate MAIN SWITCH CONTINUITY TEST table. SeeFig 1 . Replace main switch if continuity is not as specified.

MAIN SWITCH CONTINUITY TEST

Switch Position

Terminals No.

Off (Neutral)

1 & 2; 3 & 4 (⁽¹⁾ 5)

1 & 5; 3 & 4 (⁽¹⁾ 2)

DOWN

1 & 2; 4 & 5 (⁽¹⁾ 3)

⁽¹⁾	There should be no continuity between this terminal and any other terminal.

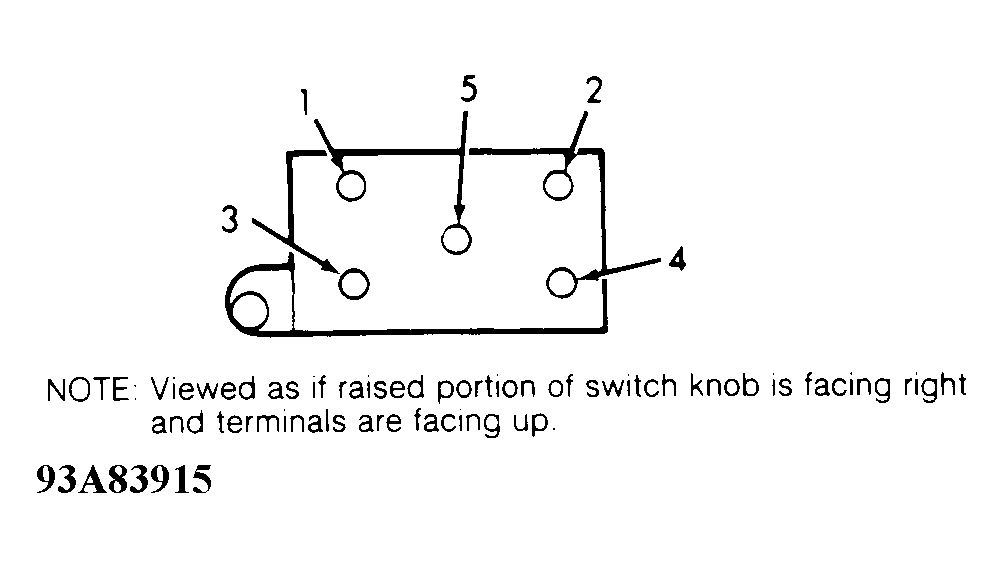

Fig 1: Main Switch & Sub-Switch Connector Terminal ID (Navajo)

Courtesy of MAZDA MOTORS CORP.
