One-Touch Module

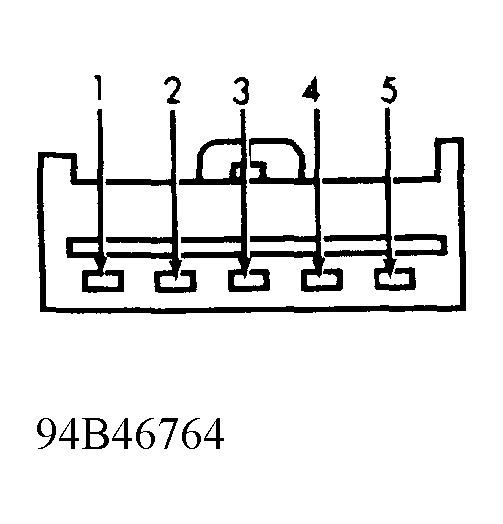

- Turn ignition switch to ACC position. Connect test light between terminals No. 5 (Black wire) and No. 3 (Light Blue/Black wire) of one-touch module connector. SeeFig 1
. Test light should illuminate. Connect test light between terminal No. 3 (Light Blue/Black wire) and the following terminals of one-touch module connector. Test light should illuminate.
- No. 1 (Red wire)
- No. 2 (White/Black wire)
- No. 4 (Yellow wire)
- Disconnect one-touch module connector. Check continuity between terminals No. 1 (Red wire) and No. 2 (White/Black wire) of one-touch module. Continuity should exist. Check continuity between terminals No. 1 (Red wire) and No. 3 (Light Blue/Black wire) of one-touch module. Continuity should not exist. Replace one-tough module if test light does not light or continuity is not as specified.
Courtesy of MAZDA MOTORS CORP.
