Main Switch

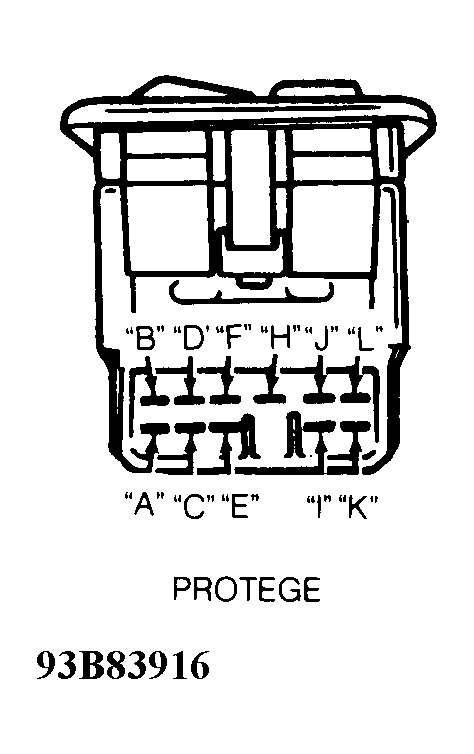

Check continuity across specified terminals of main switch connector with main switch button held in specified position. See MAIN SWITCH CONTINUITY TEST . SeeFig 1. Replace main switch if continuity is not as specified.
MAIN SWITCH CONTINUITY TEST
| Switch Position | Terminals | |
|---|---|---|
| Driver | ||
| UP | A & D; B & H | |
| Off (Neutral) | B, D & H | |
| DOWN | A & B; D & H | |
| Passenger | ||
| UP | A & J; H & L | |
| Off (Neutral) | H, J & L | |
| DOWN | H & J; A & L | |
| Left Rear | ||
| UP | A & C; E & H | |
| Off (Neutral) | C, E & H | |
| DOWN | A & E; C & H | |
| Right Rear | ||
| UP | A & K; H & I | |
| Off (Neutral) | H, I & K | |
| DOWN | A & I; H & K | |
