Cruise Control Unit

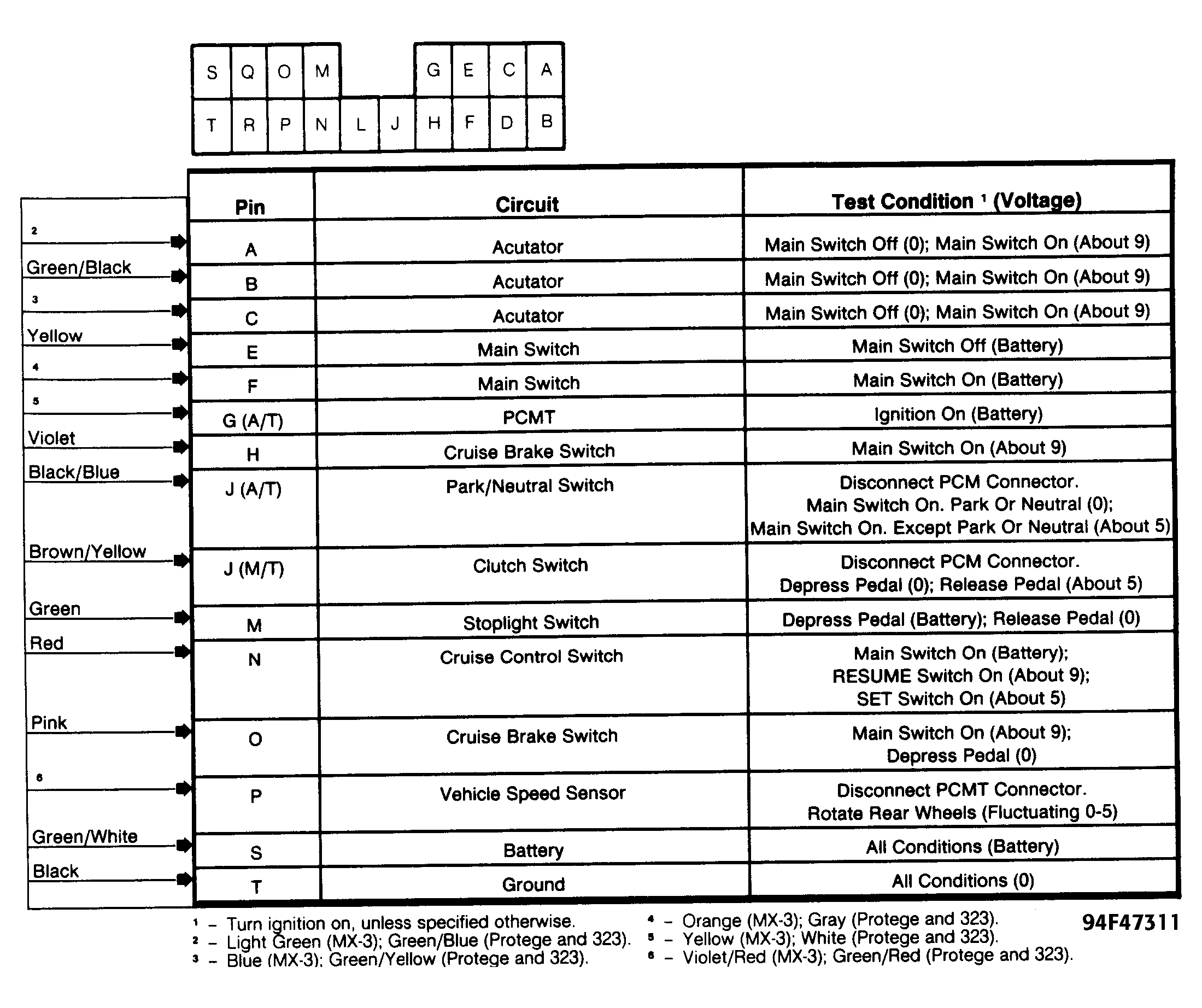

Turn ignition on. Measure voltage at cruise control unit connector terminals with electrical connector attached (backprobe terminals). SeeFigure . If voltages are not as specified, check appropriate circuit and component. If circuit and component are okay, replace cruise control unit.
