MT Engine Control System (2/3)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

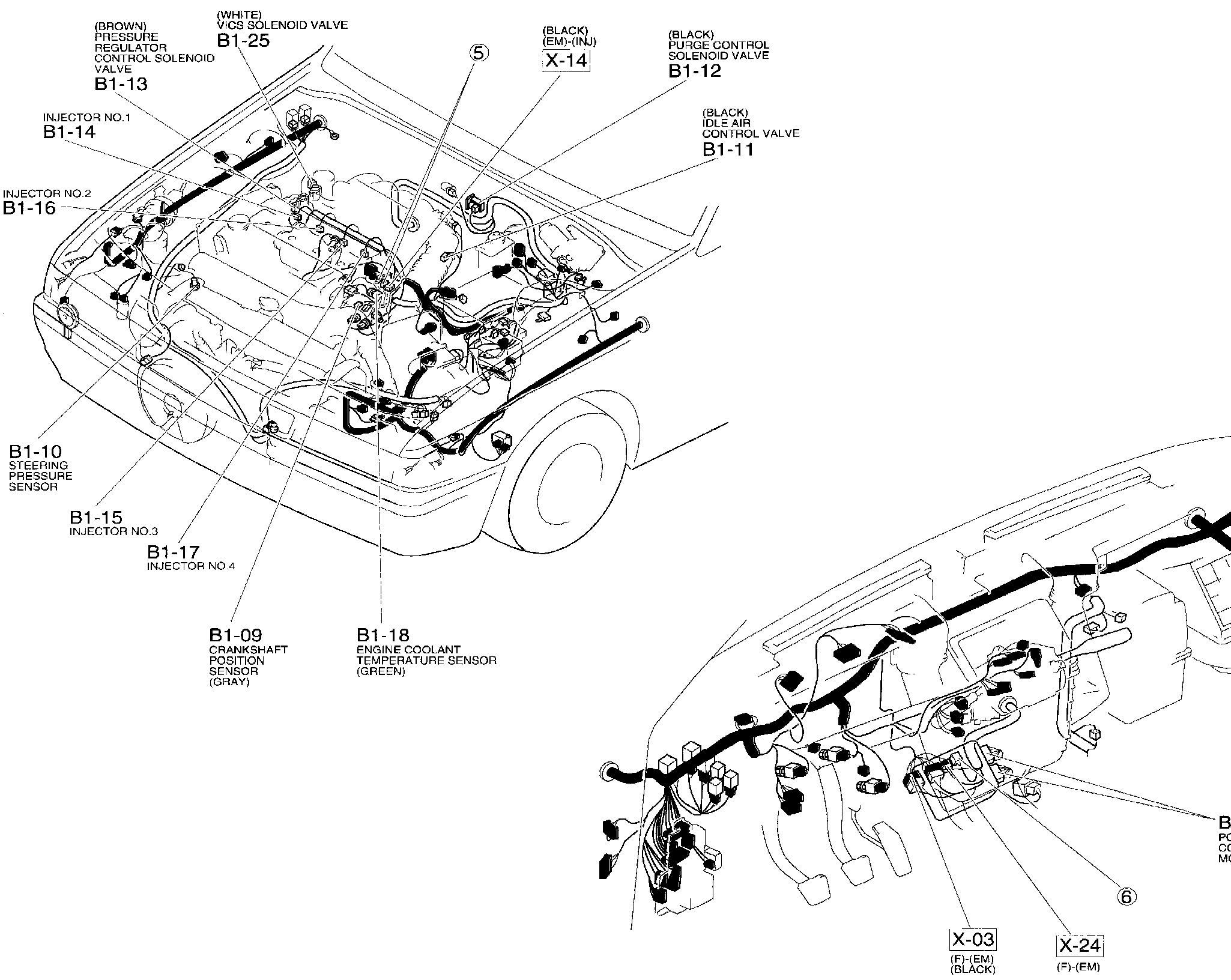

MT Engine Control System (2/3)
�~ Connector Locations:
