Torque Specifications

Intake:

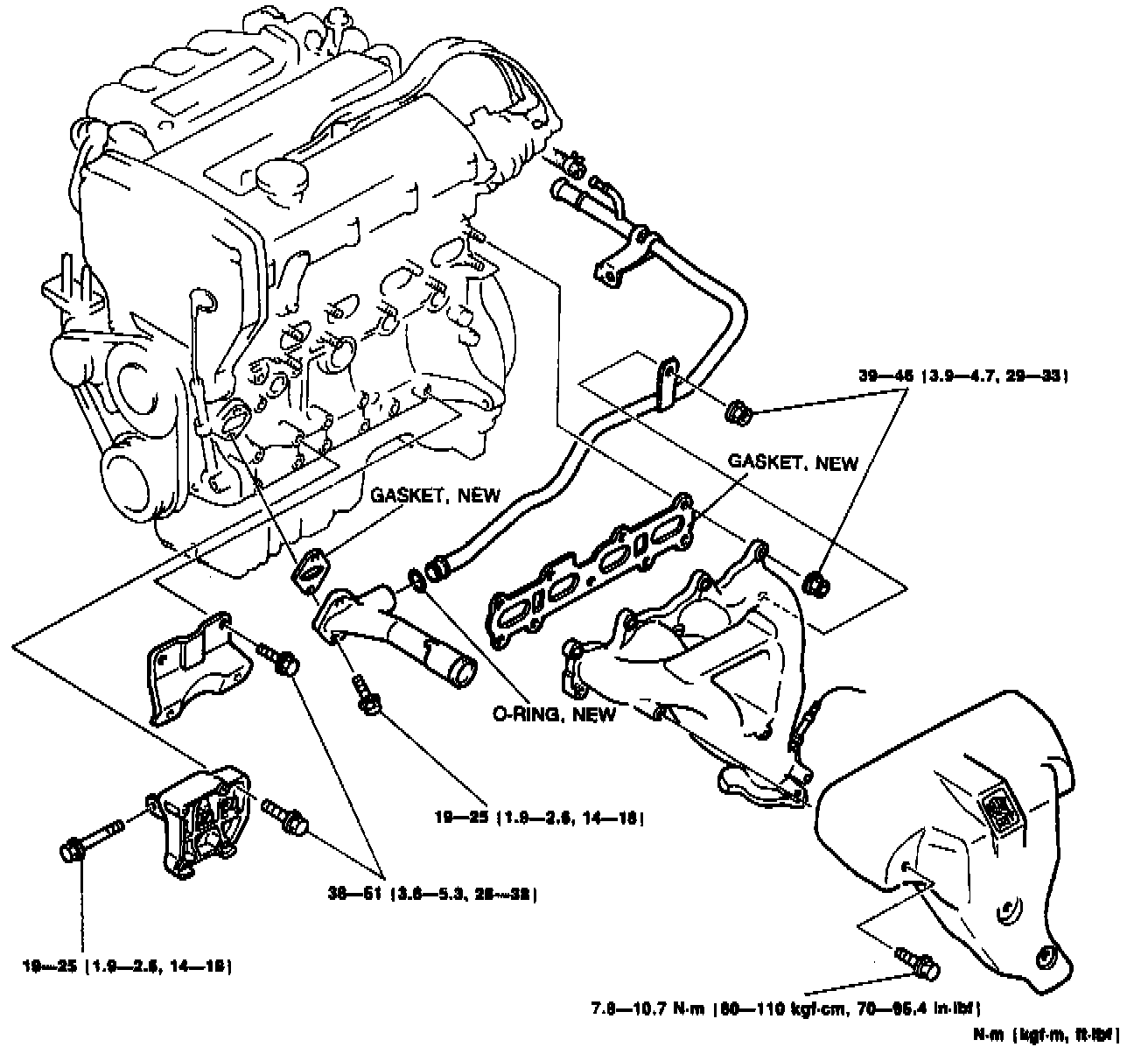

Exhaust Manifold:

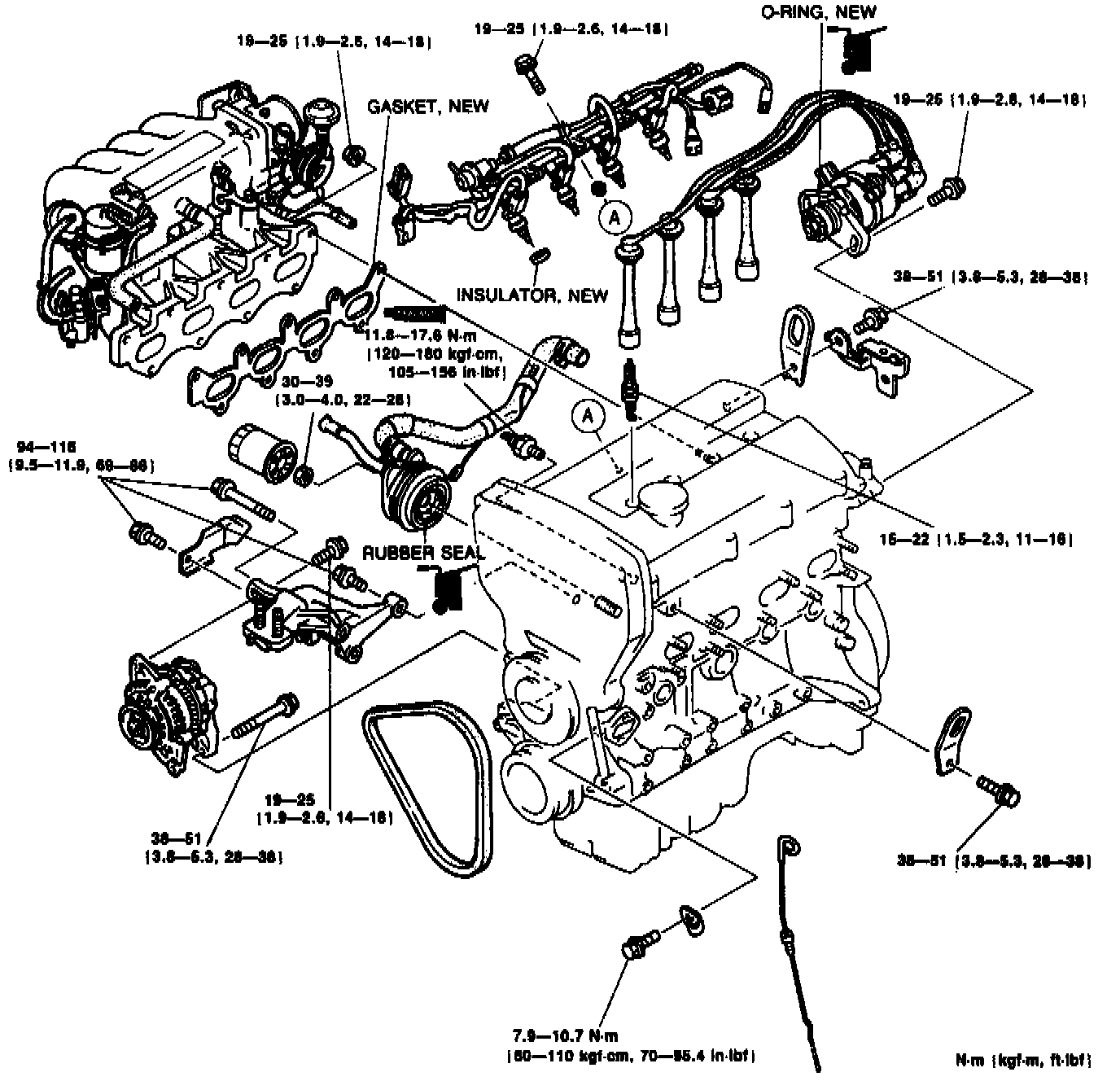

Upper Engine:

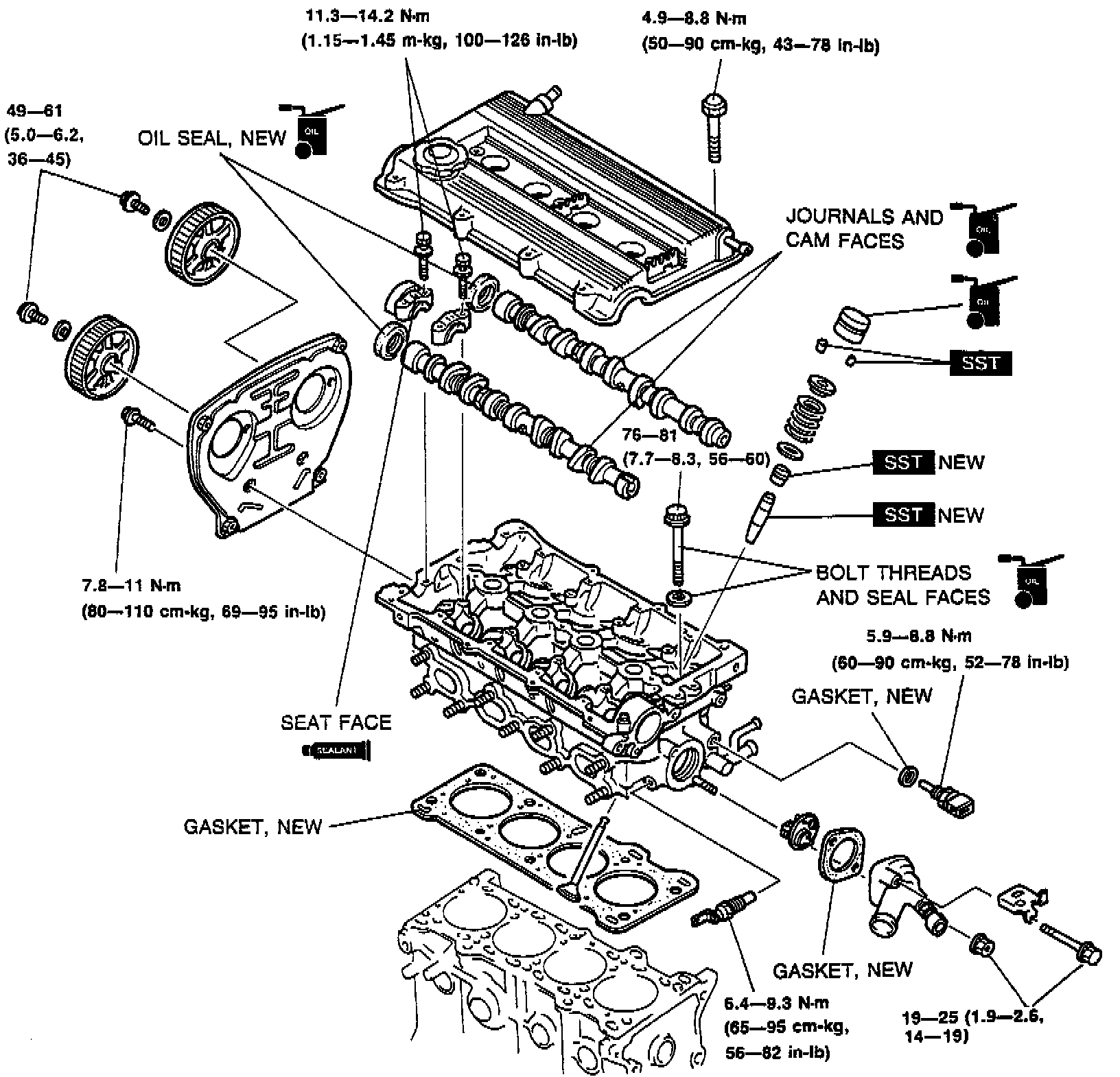

Head Bolt Torque/Sequence:






Cam Cap Torque/Sequence:
