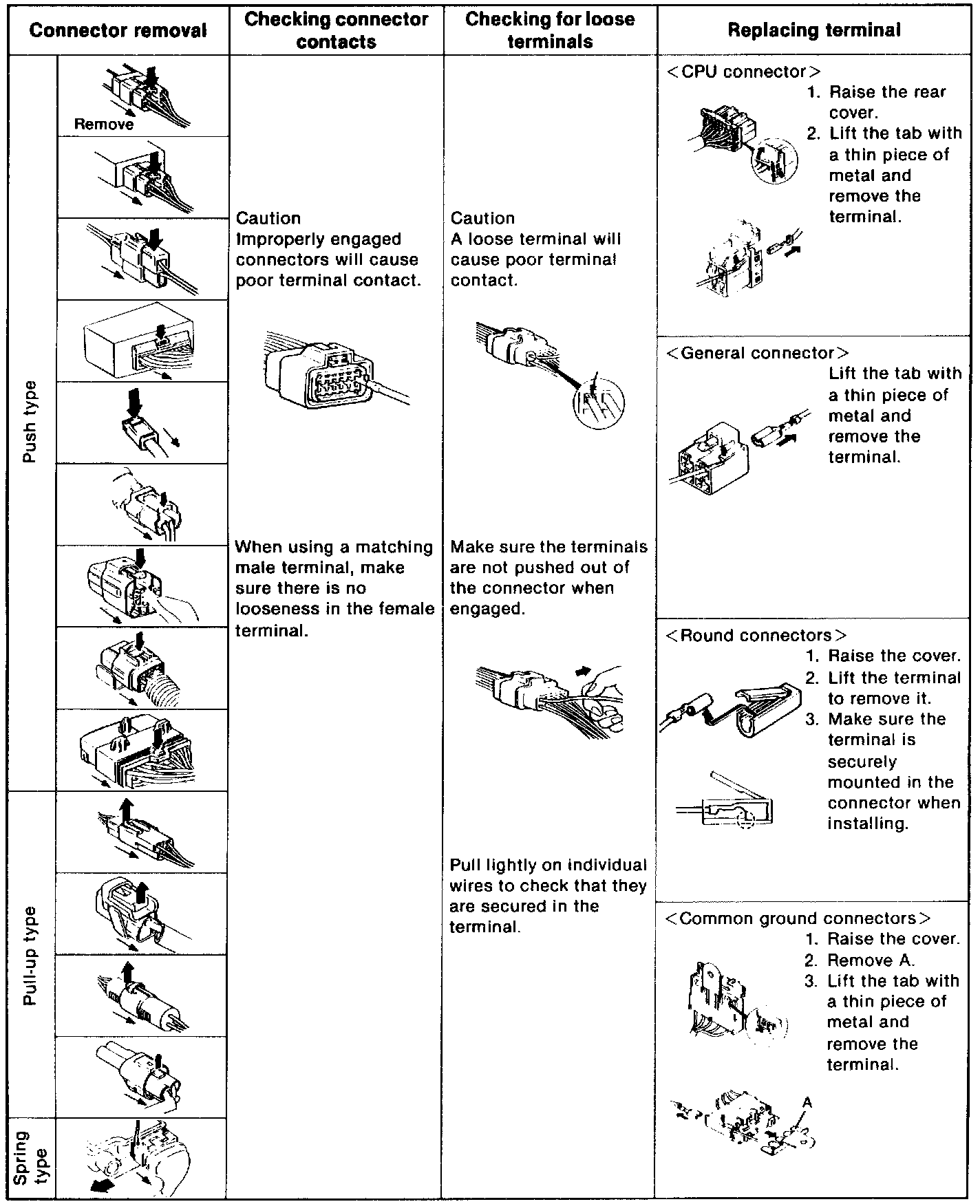

Handling Connectors

Handling Connectors:

CAUTION:
^ Be sure to grasp the connector, not the wires, when disconnecting them.
