Code 32: (Solenoid Valve - Switching)

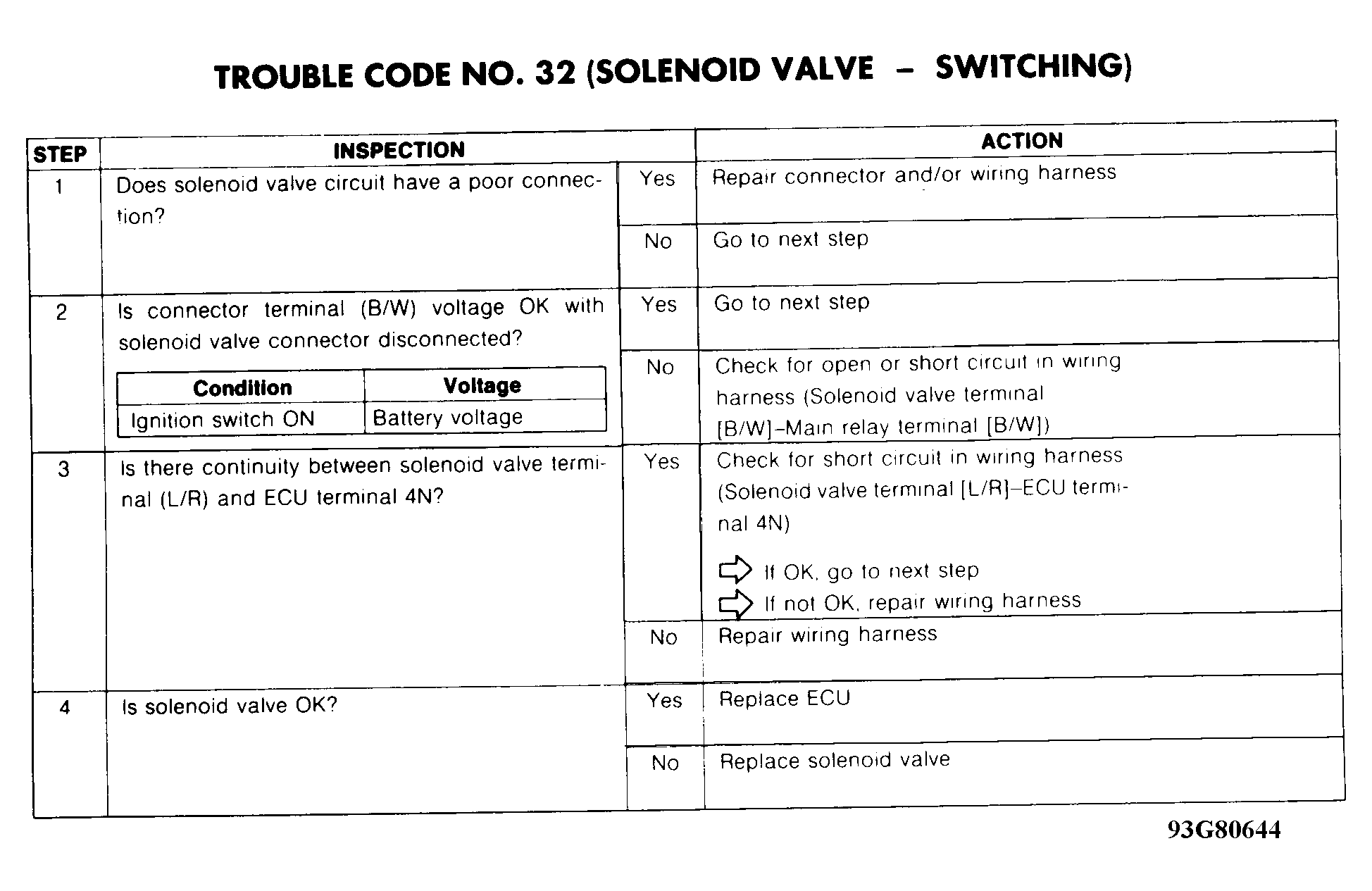

Fig 1: Trouble Code No. 32 Diagnostic Chart (Solenoid Valve - Switching)
G93G80644

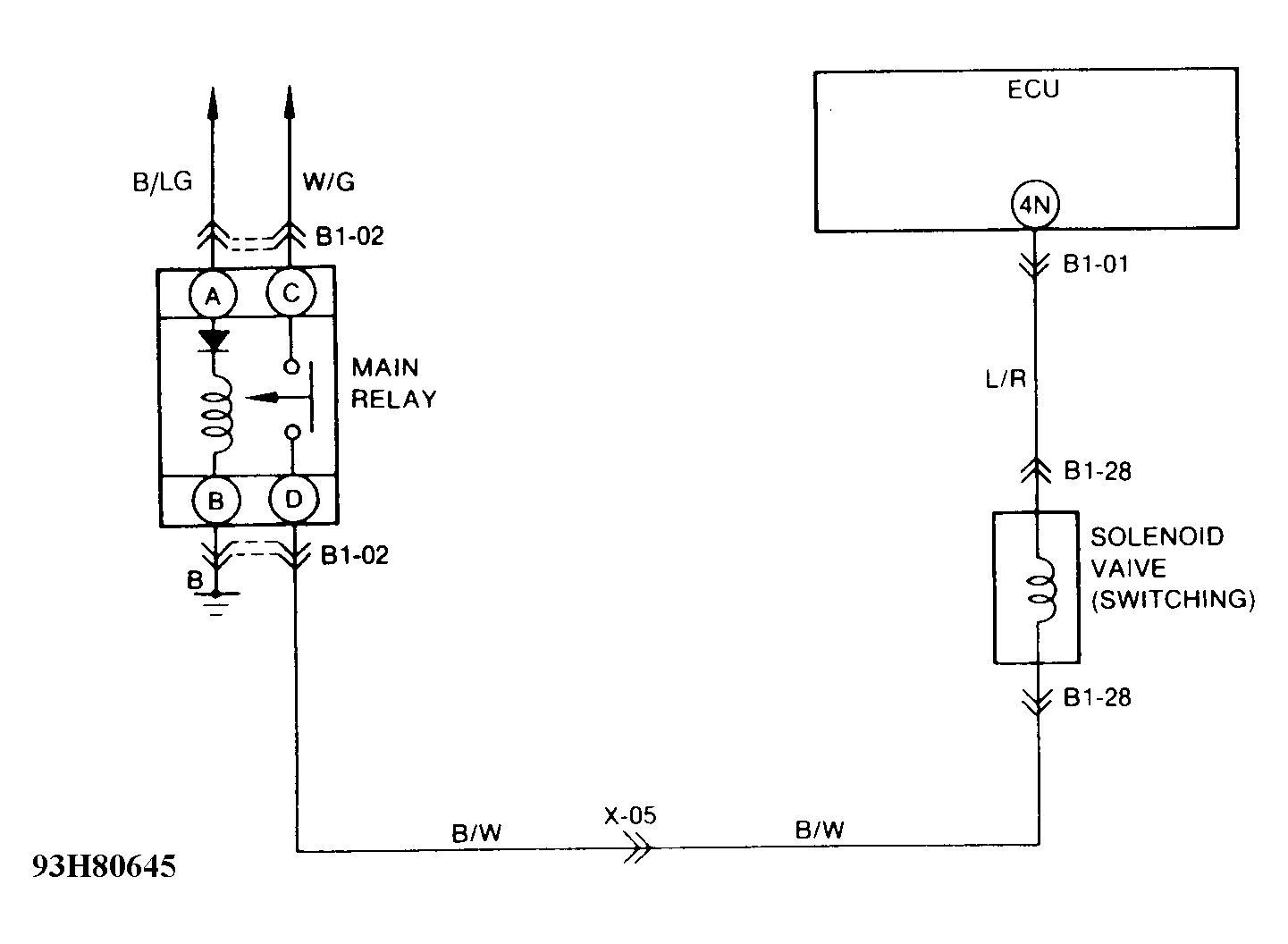

Fig 2: Trouble Code No. 32 Schematic (Solenoid Valve - Switching)
G93H80645
