Cruise Control Module: Testing and Inspection

1. Pull out cruise control module, allowing connector to remain connected.
2. Measure voltage at cruise control module terminals as indicated in Fig. 43.

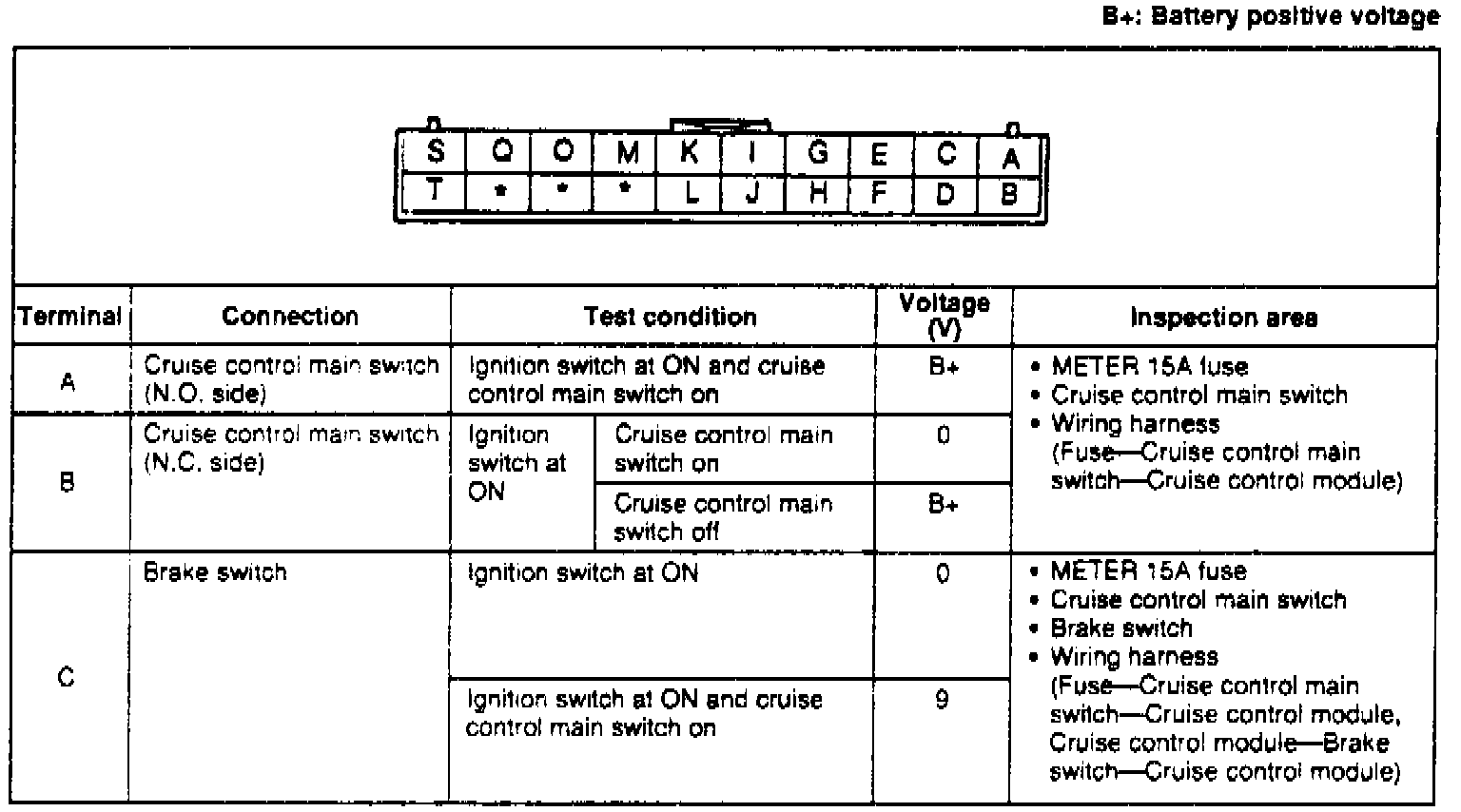

Fig. 43 Cruise Control Module Inspection (Part 1 Of 3):

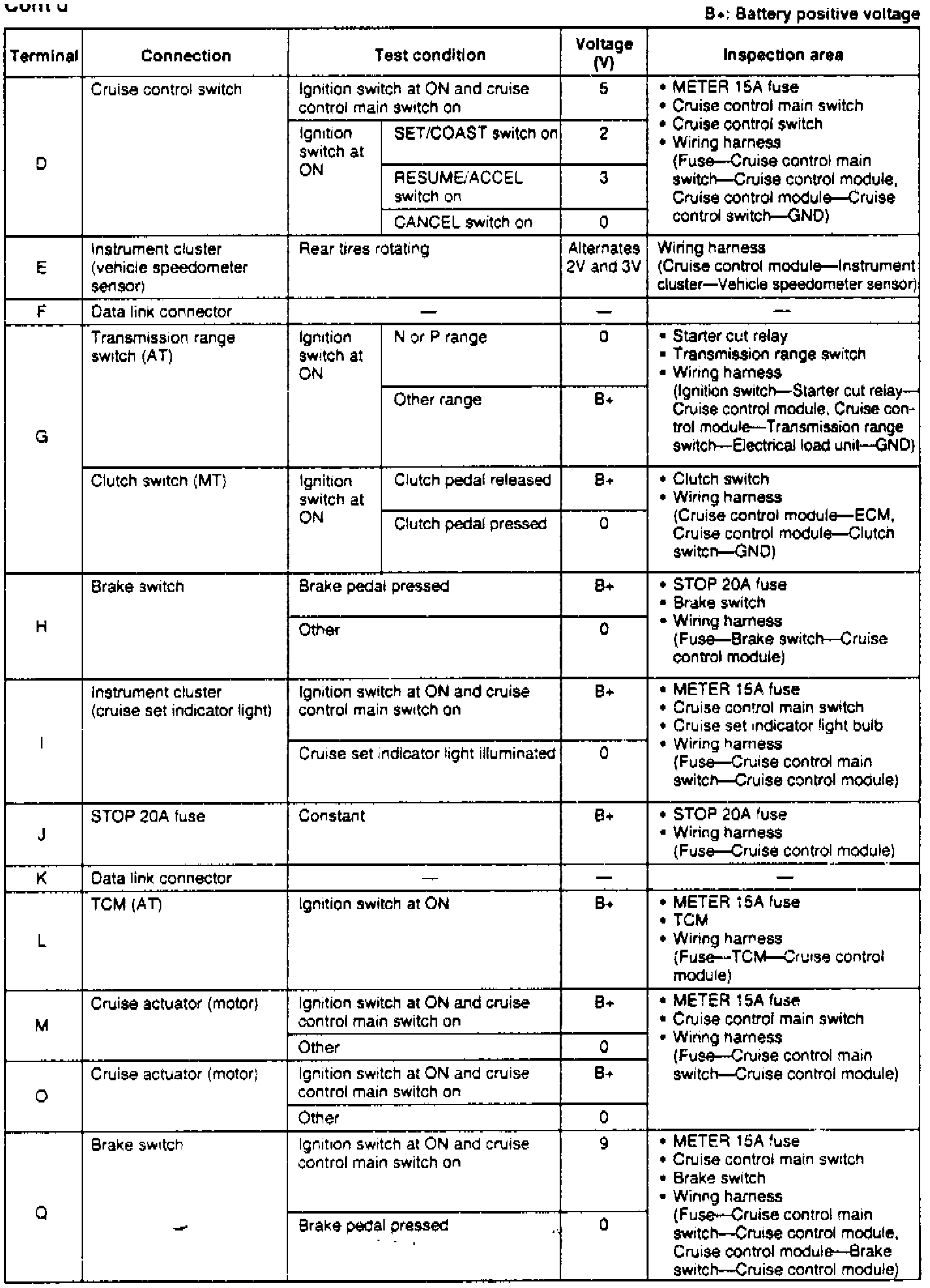

Fig. 43 Cruise Control Module Inspection (part 2 Of 3):

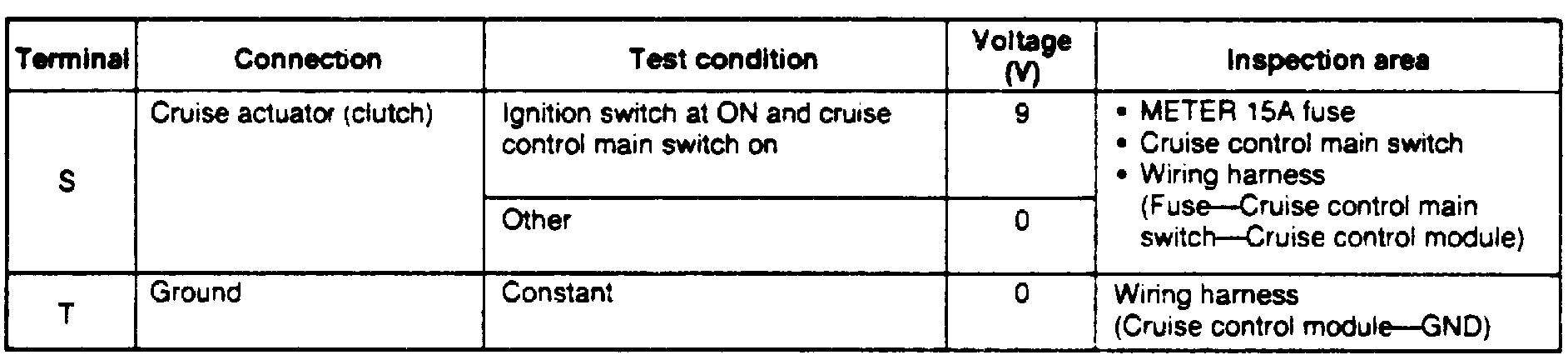

Fig. 43 Cruise Control Module Inspection (part 3 Of 3):

3. If voltages are not as specified in Fig. 43 inspect components and related harnesses.
4. Replace cruise control module if inspections do not reveal any malfunction.
