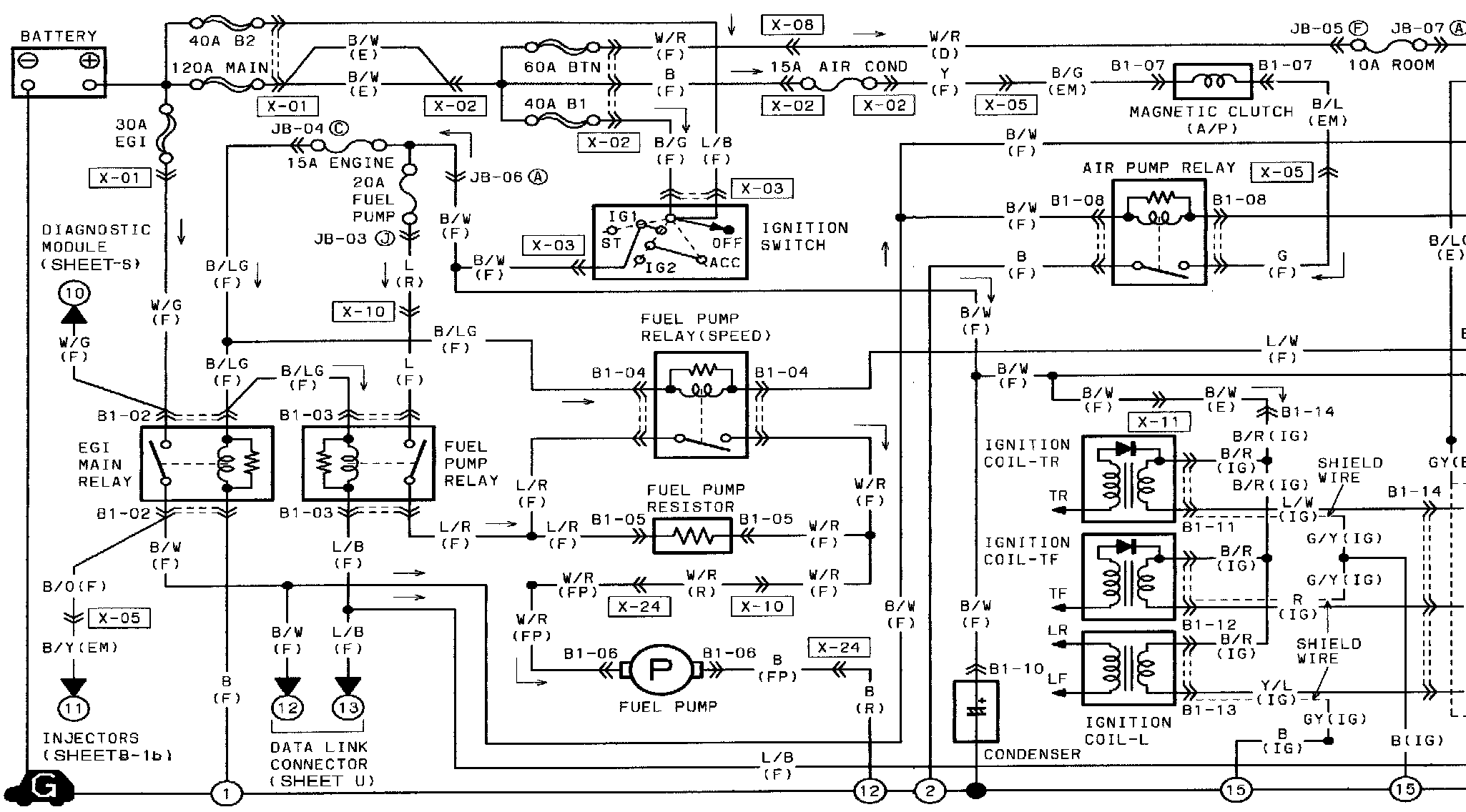

Engine Control System, Fuel Control System, Ignition System
�@aCEngine Control System, Fuel Control System, Ignition System B-1A:
