Pressure Regulator Control System

Purpose
To prevent vapor-lock during hot restart and idle by momentarily increasing fuel injection pressure.

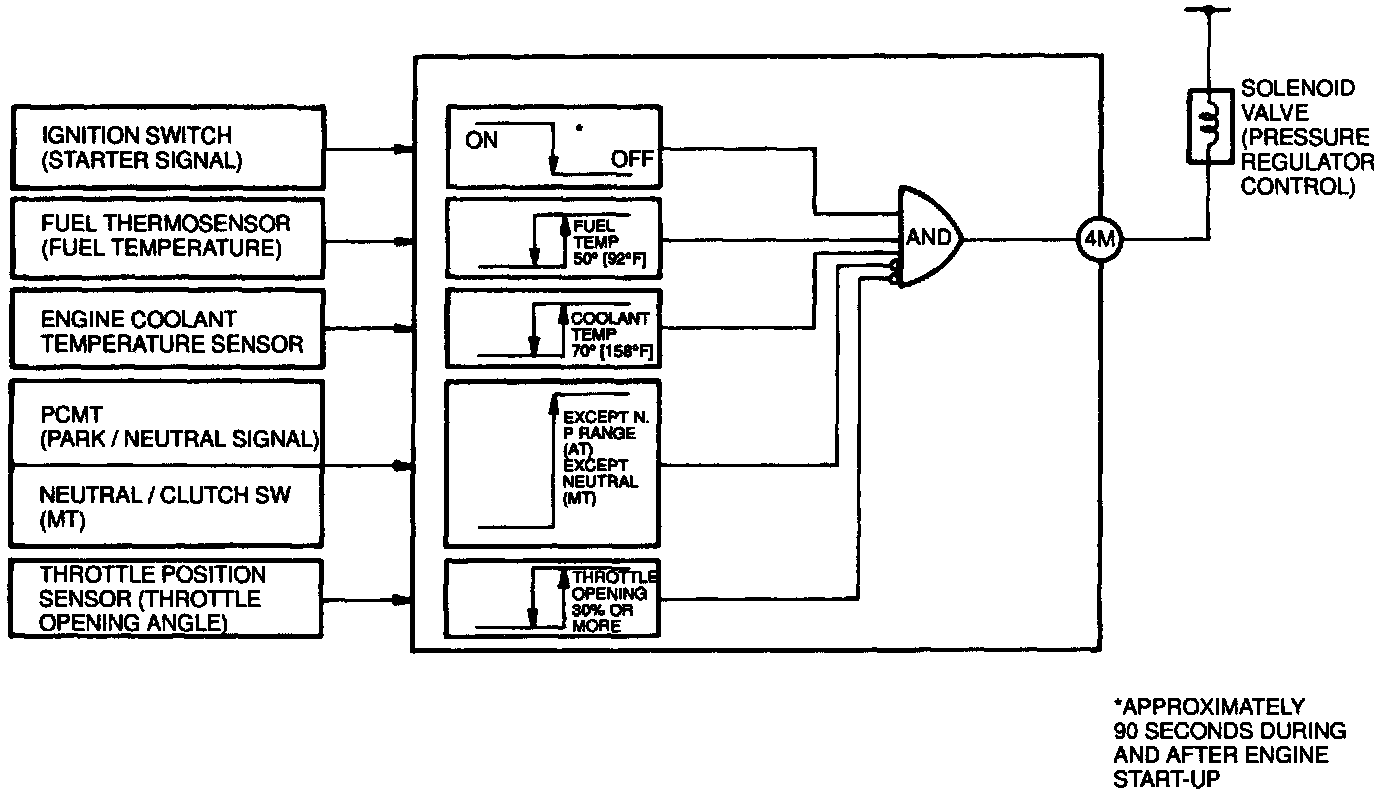

Operation
This system cancels the vacuum applied to the pressure regulator and increases the fuel pressure during hot engine start-up and for a period immediately following engine start-up. This improves hot starting as well as providing smooth idle.
