System Circuit Diagram/Connector Diagram

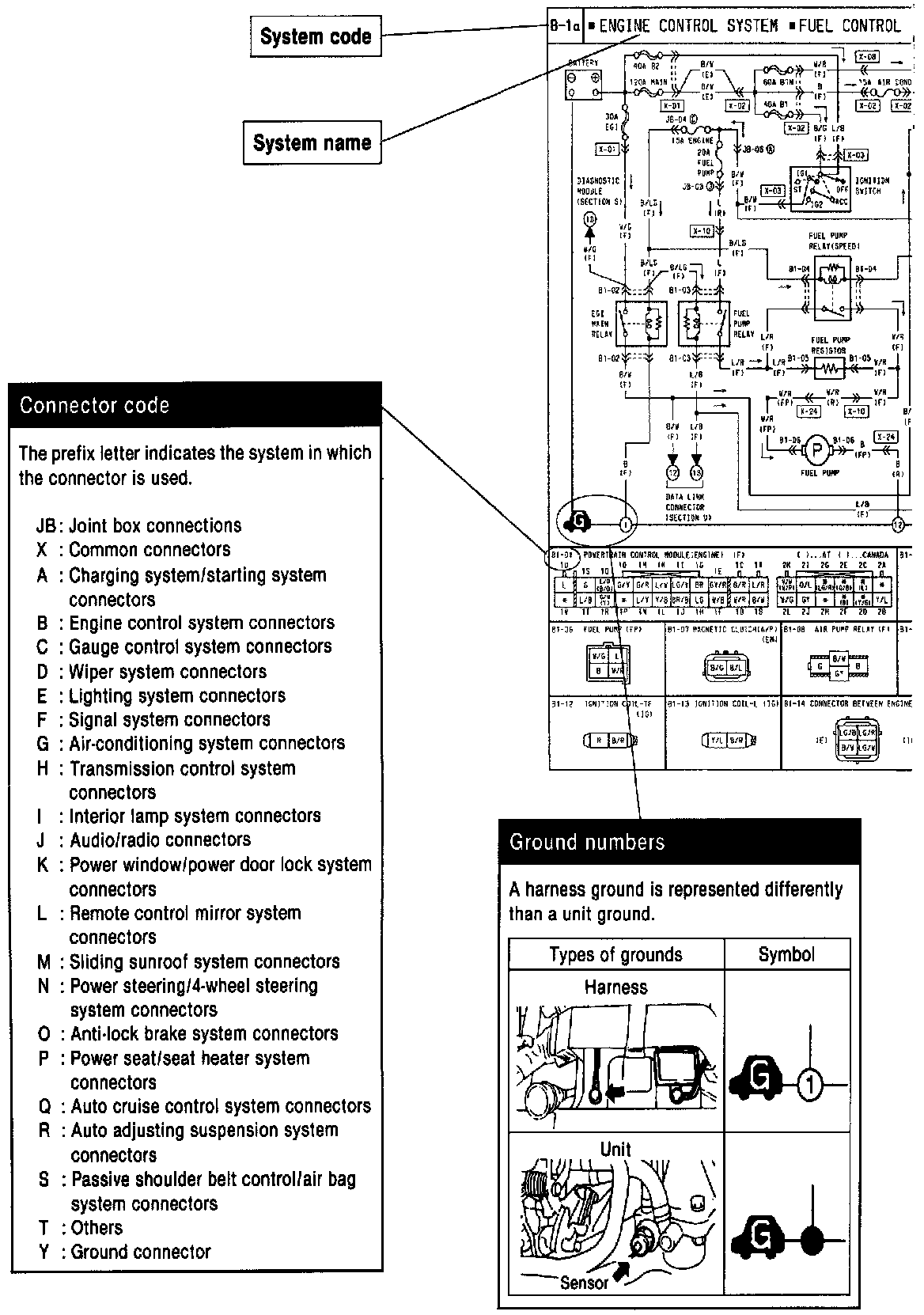

System Circuit Diagram/Connector Diagram (Part 1 Of 2):

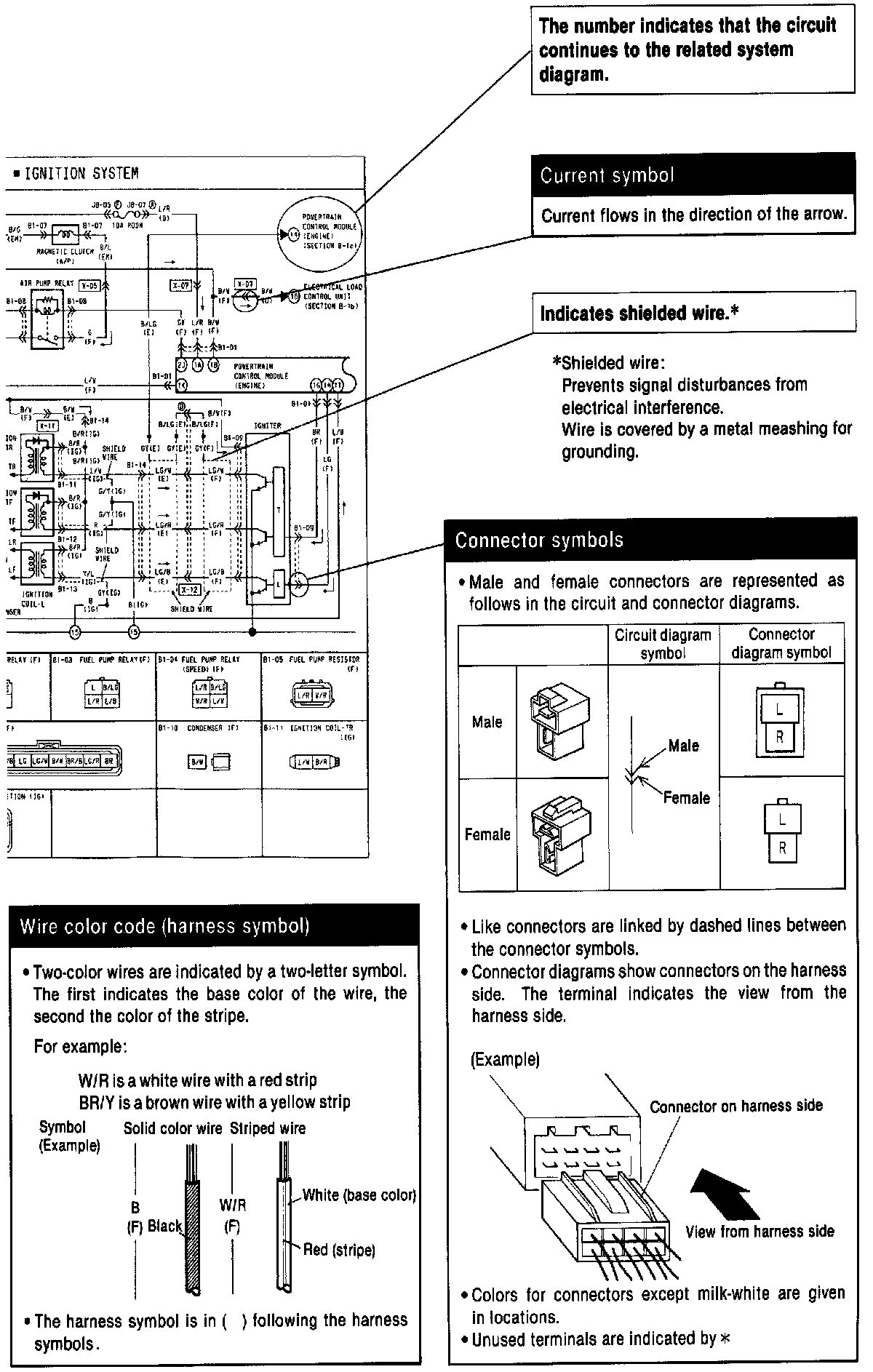

System Circuit Diagram/Connector Diagram (Part 2 Of 2):





^ These show the circuits for each system, from the power supply to the ground. The power supply side is on the upper part of the page, the ground side on the lower part. The diagrams describe circuits with the ignition switch off.
Below is an explanation of the various points in the diagram.
