Ignition Control Module: Service and Repair

Removal/Installation

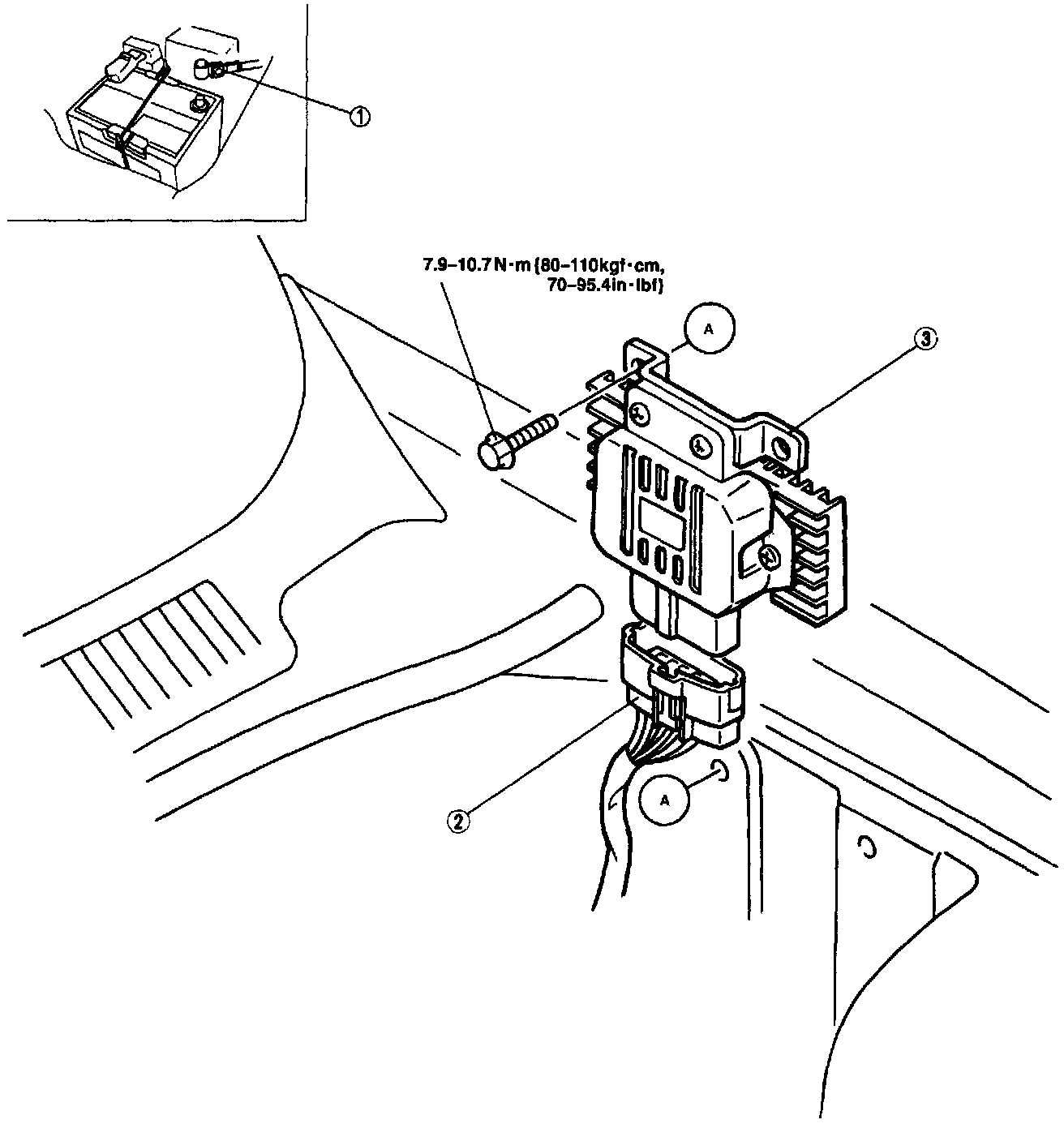

1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.




1. Battery negative cable
2. Connector
3. Igniter
