Control Module, A/T

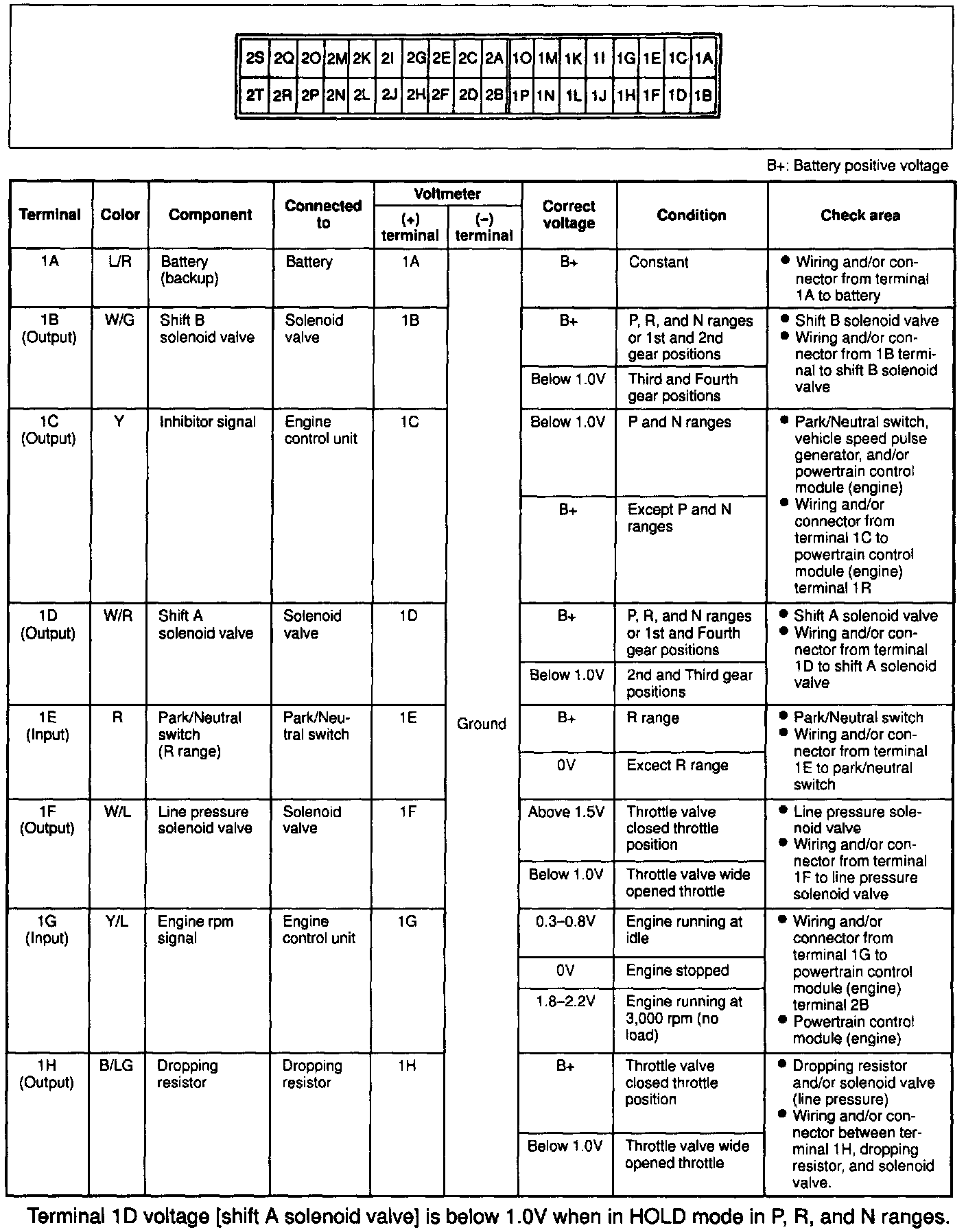

Terminal 1A through 1H

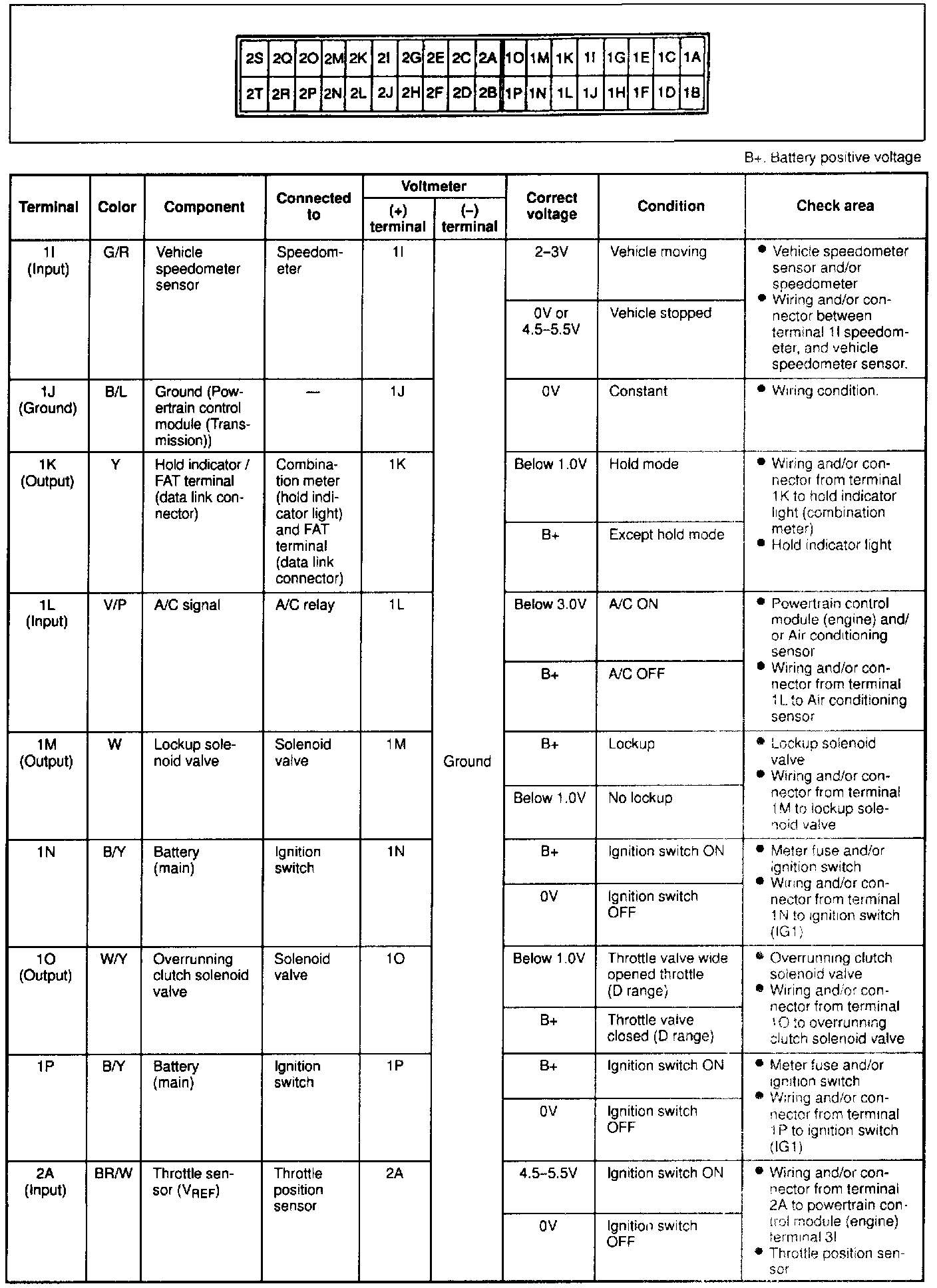

Terminal 1I through 2A

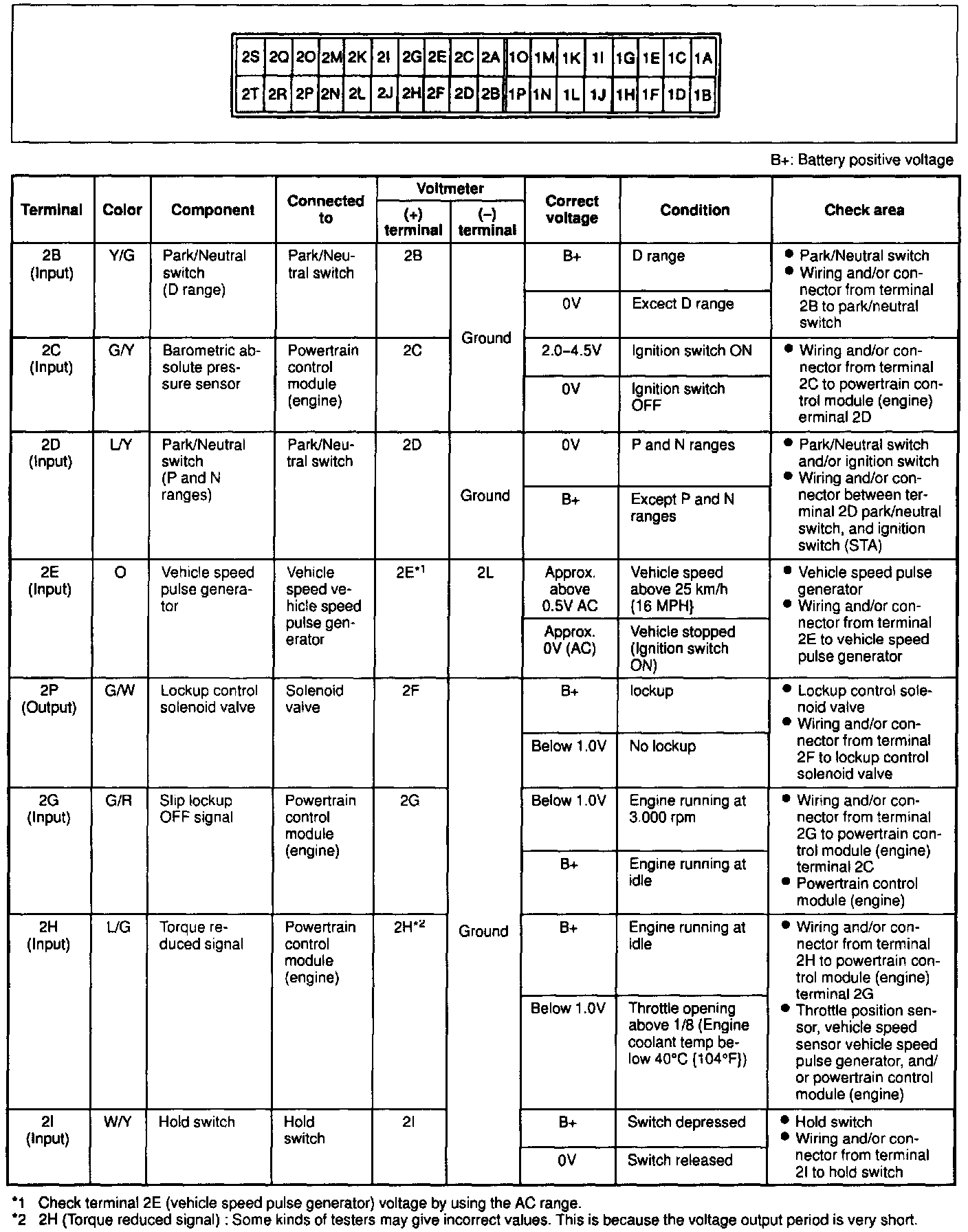

Terminal 2B through 2I

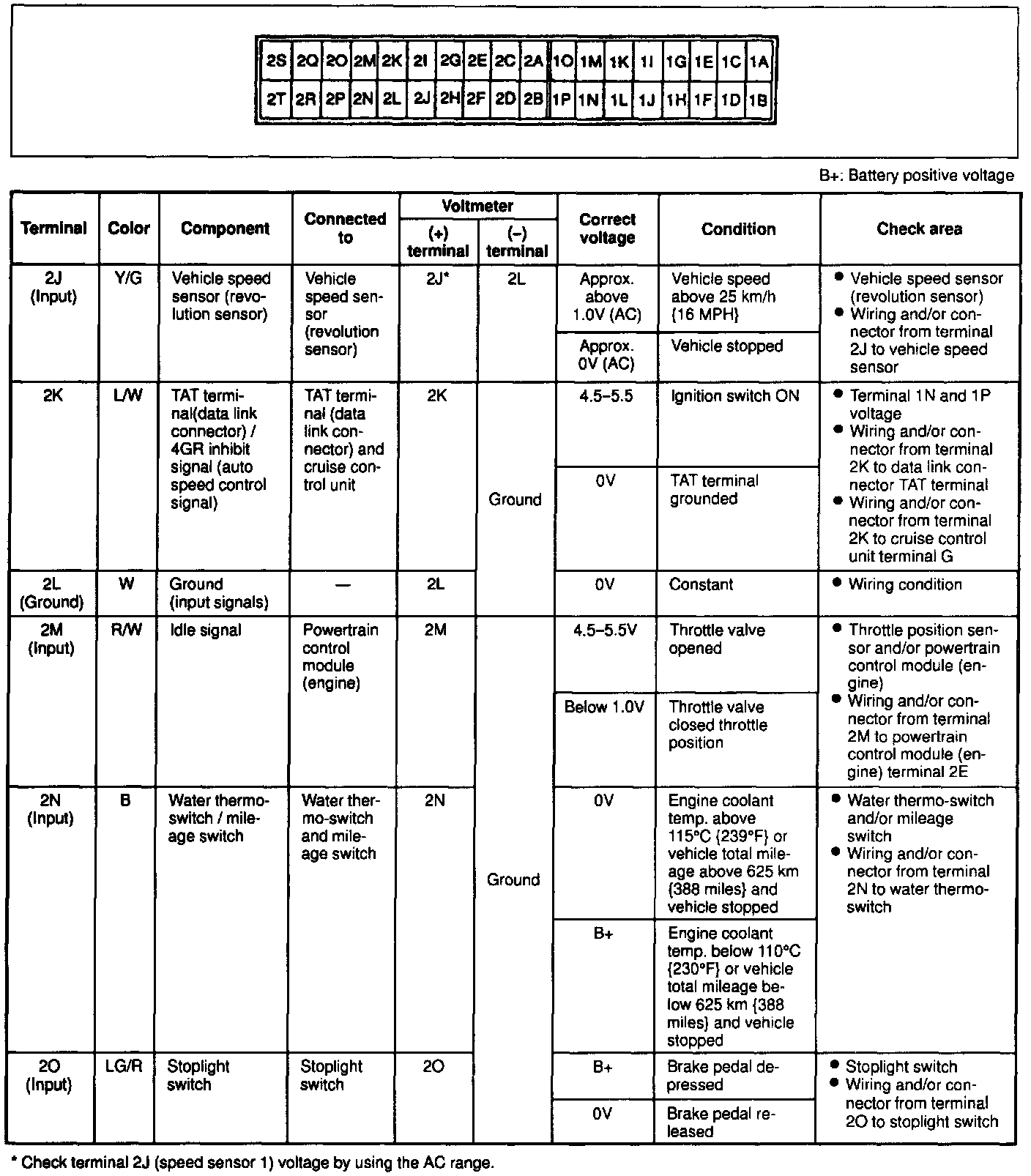

Terminal 2J through 2O

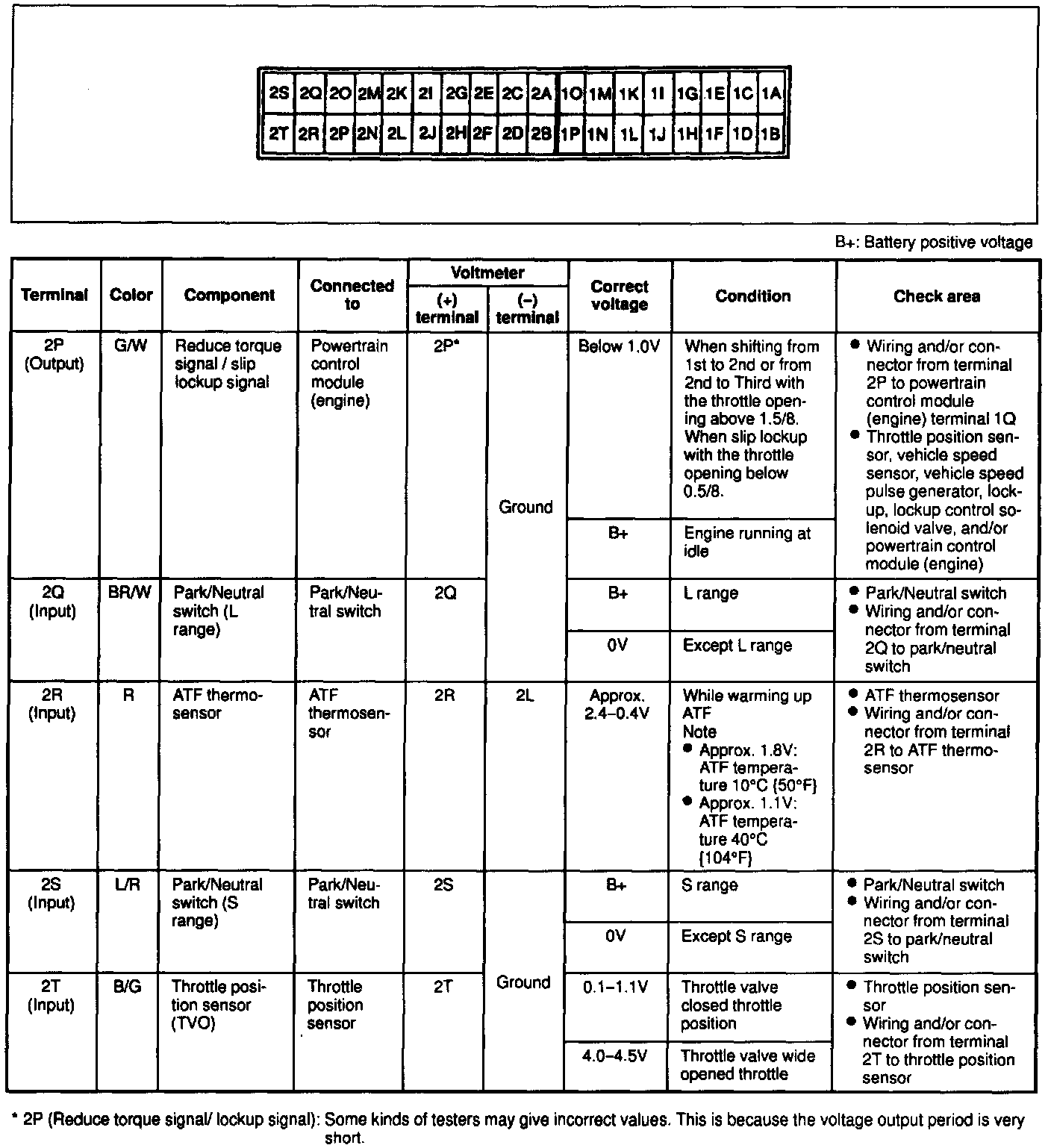

Terminal 2P through 2T
