Code 28: EGR Vacuum Solenoid Valve

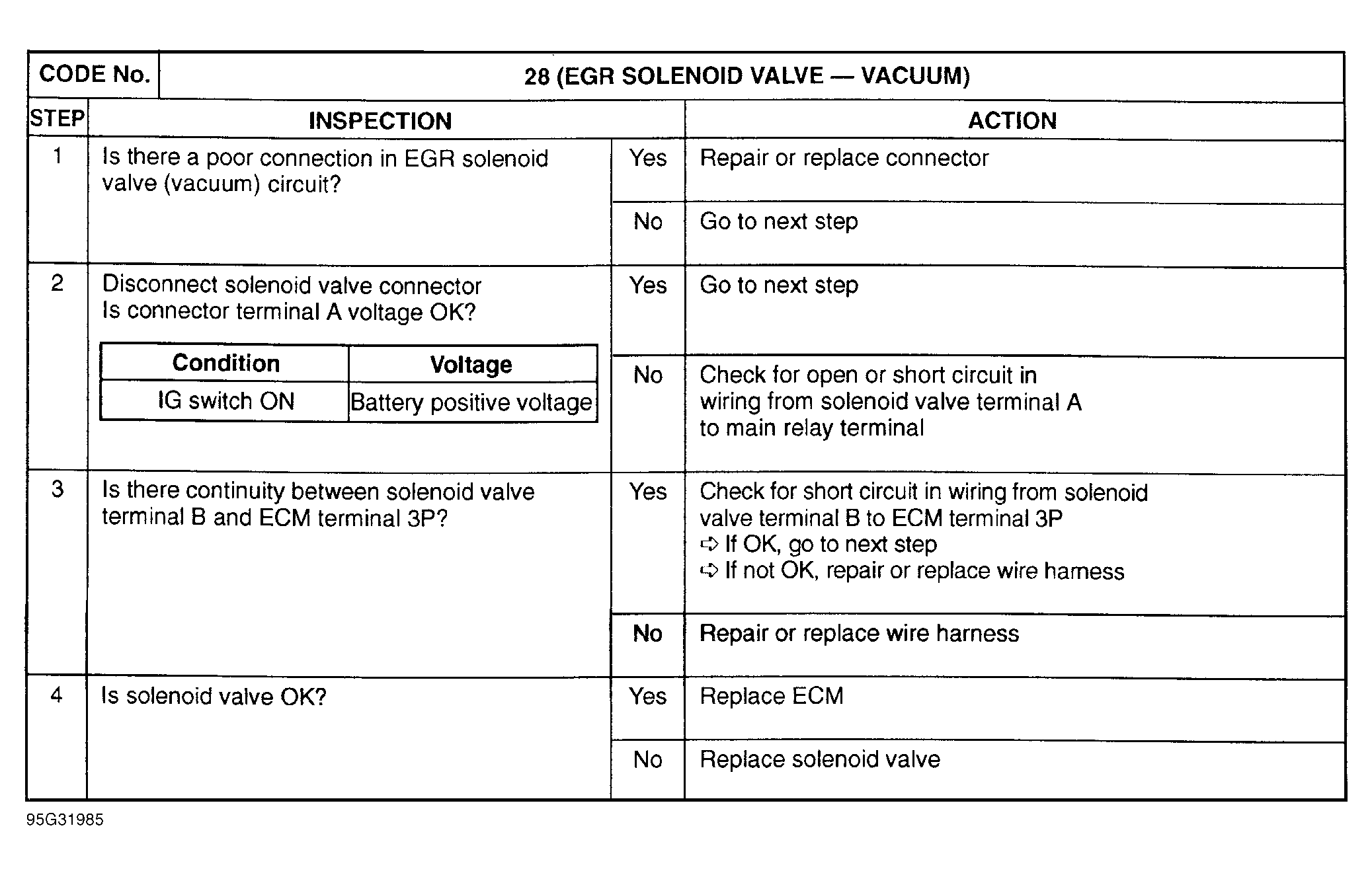

Fig 1: Trouble Code No. 28 EGR Vacuum Solenoid Valve
G95G31985

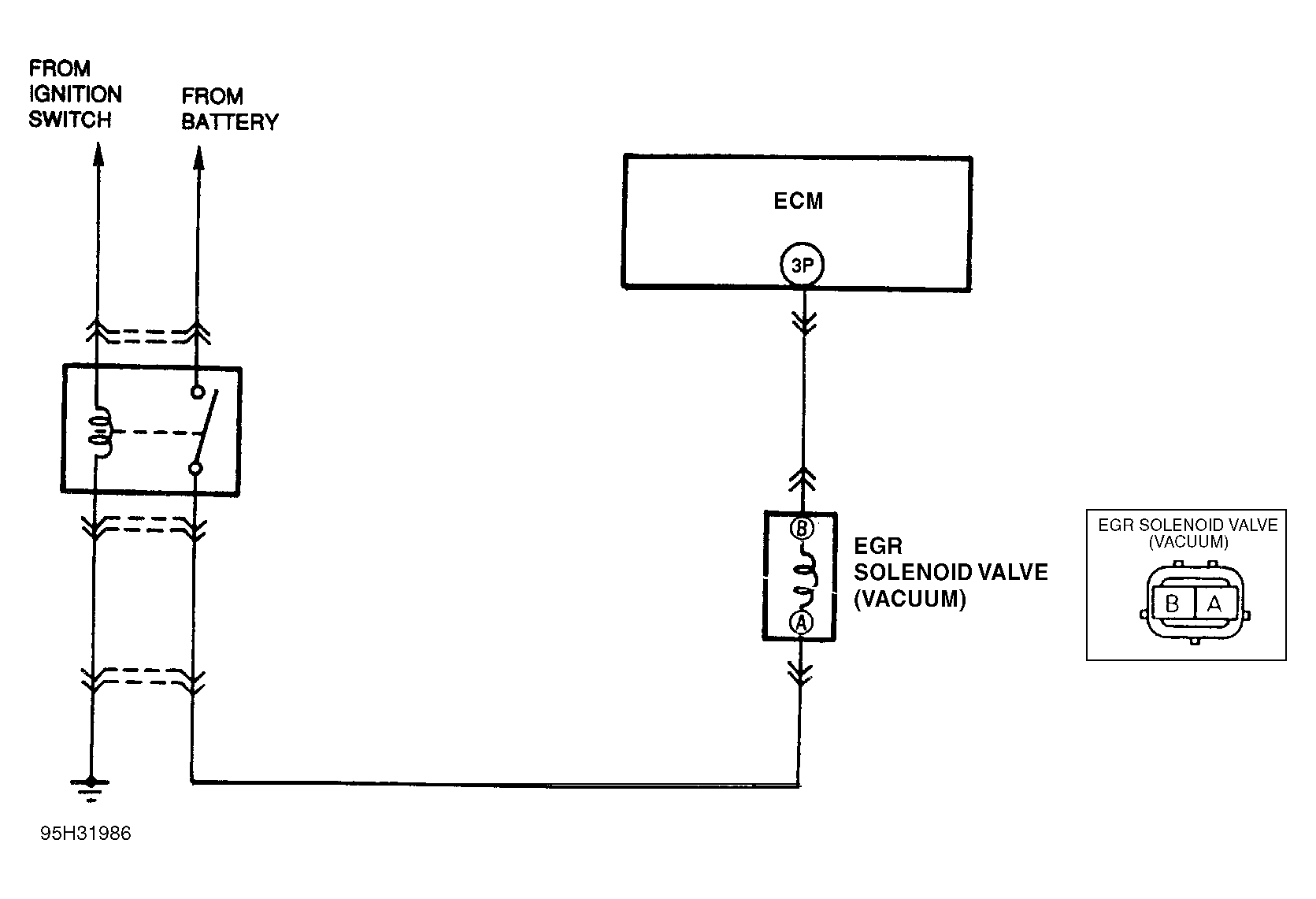

Fig 2: Trouble Code No. 28 EGR Solenoid Valve Circuit Diagram
G95H31986
