Code 6: Vehicle Speedometer Sensor

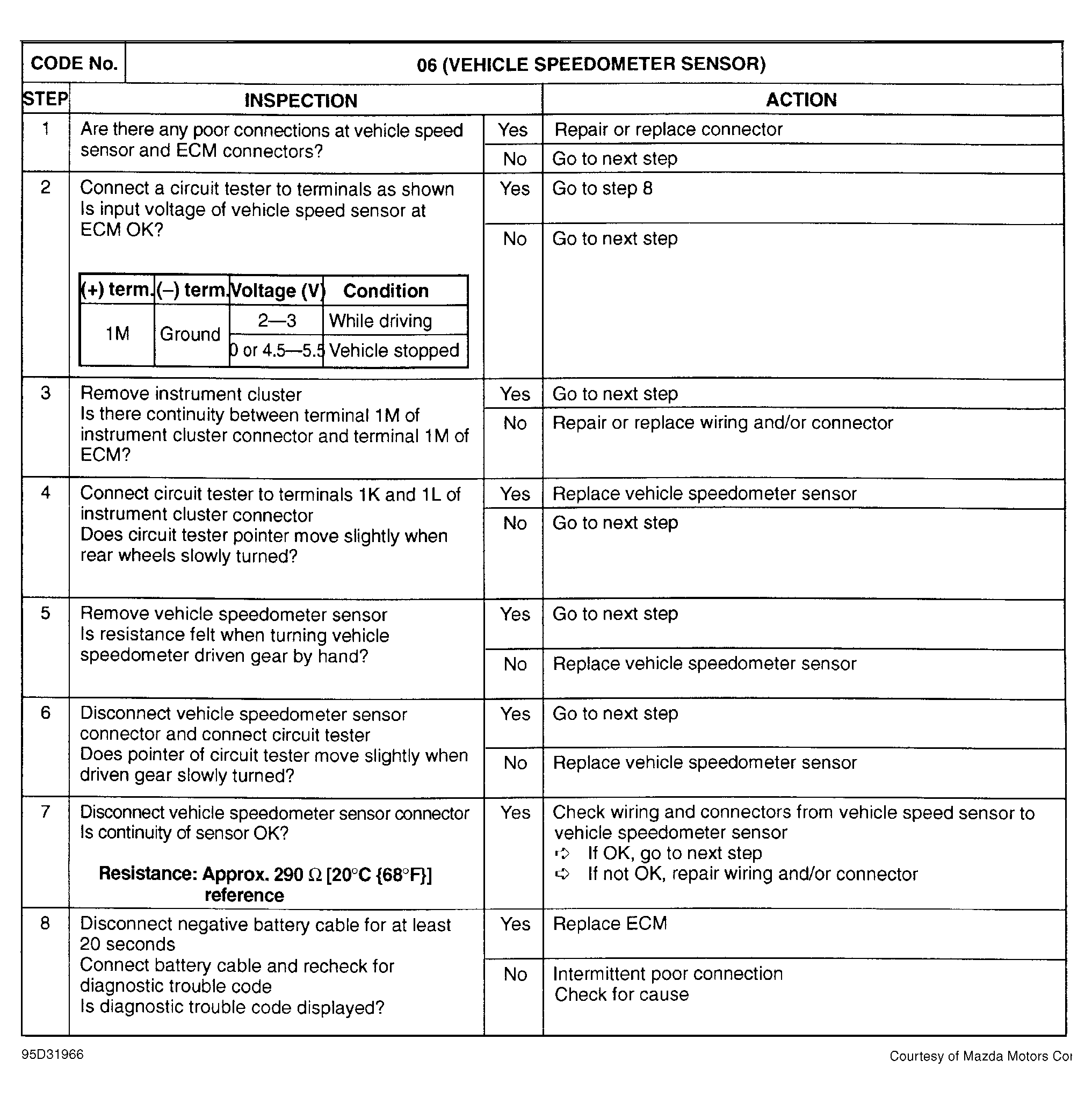

Fig 1: Trouble Code No. 6 Vehicle Speedometer Sensor

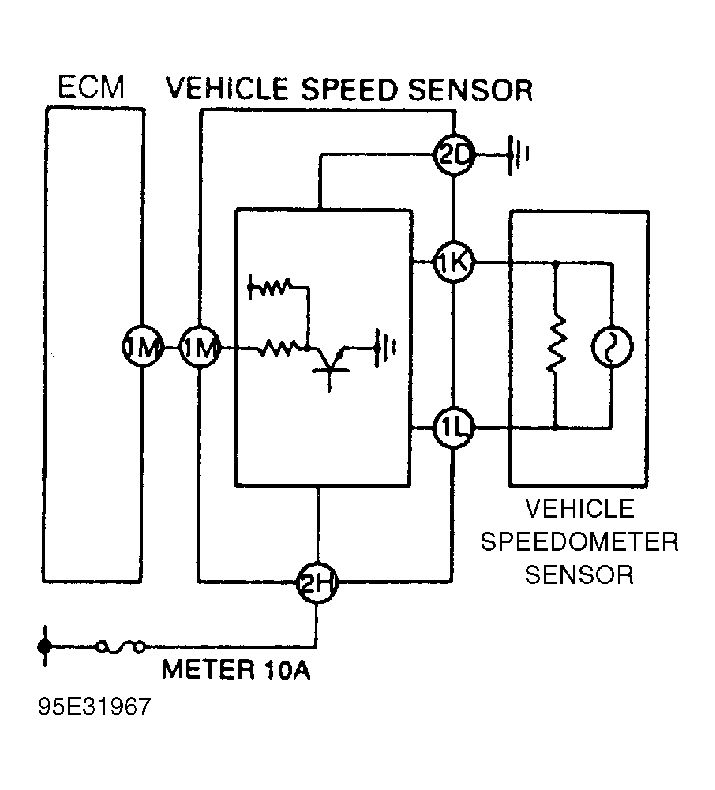

Fig 2: Trouble Code No. 6 Vehicle Speedometer Sensor Circuit Diagram
