Code 65: A/C Signal - TCM

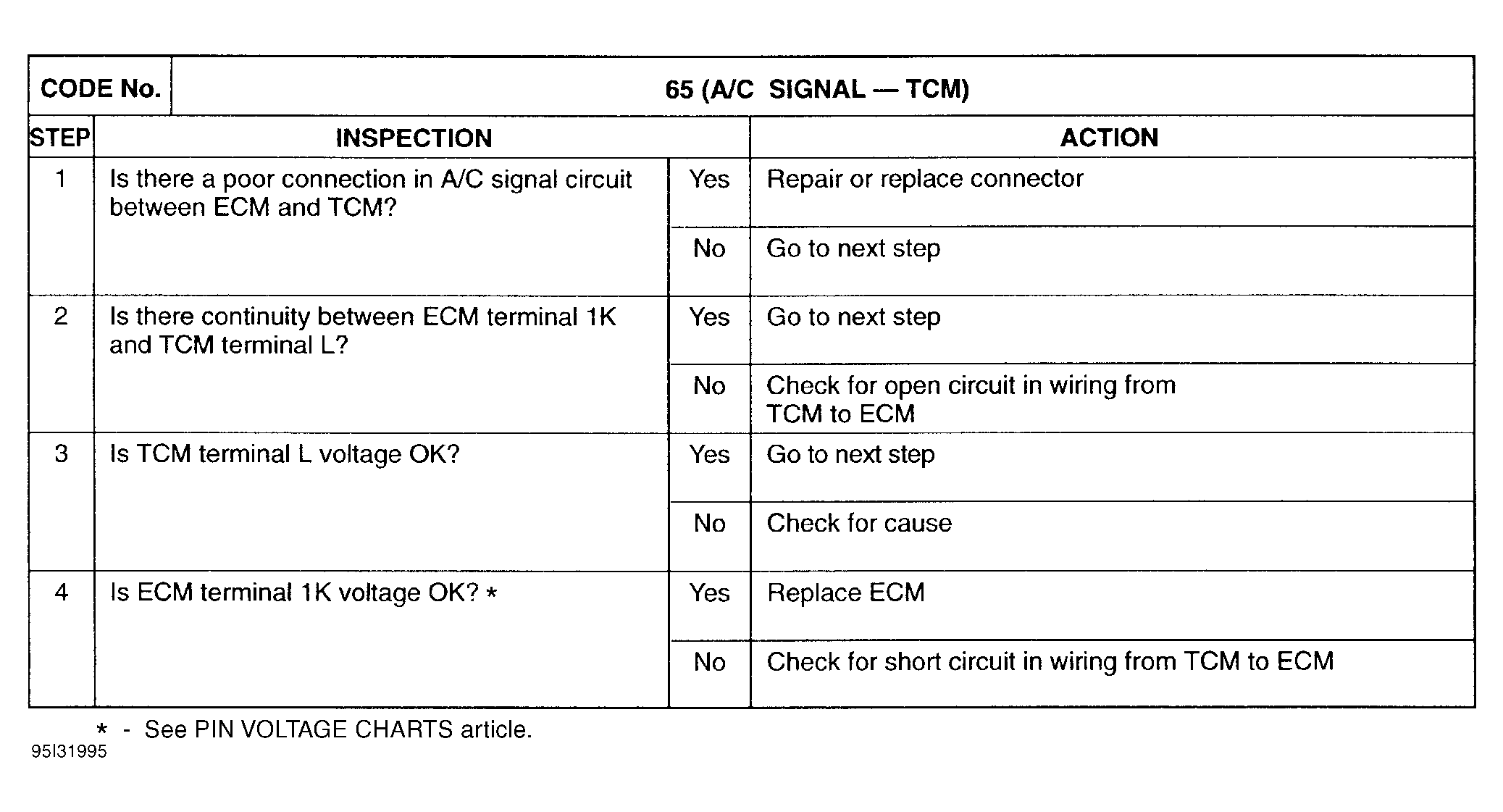

Fig 1: Trouble Code No. 65 A/C Signal - TCM
G95I31995

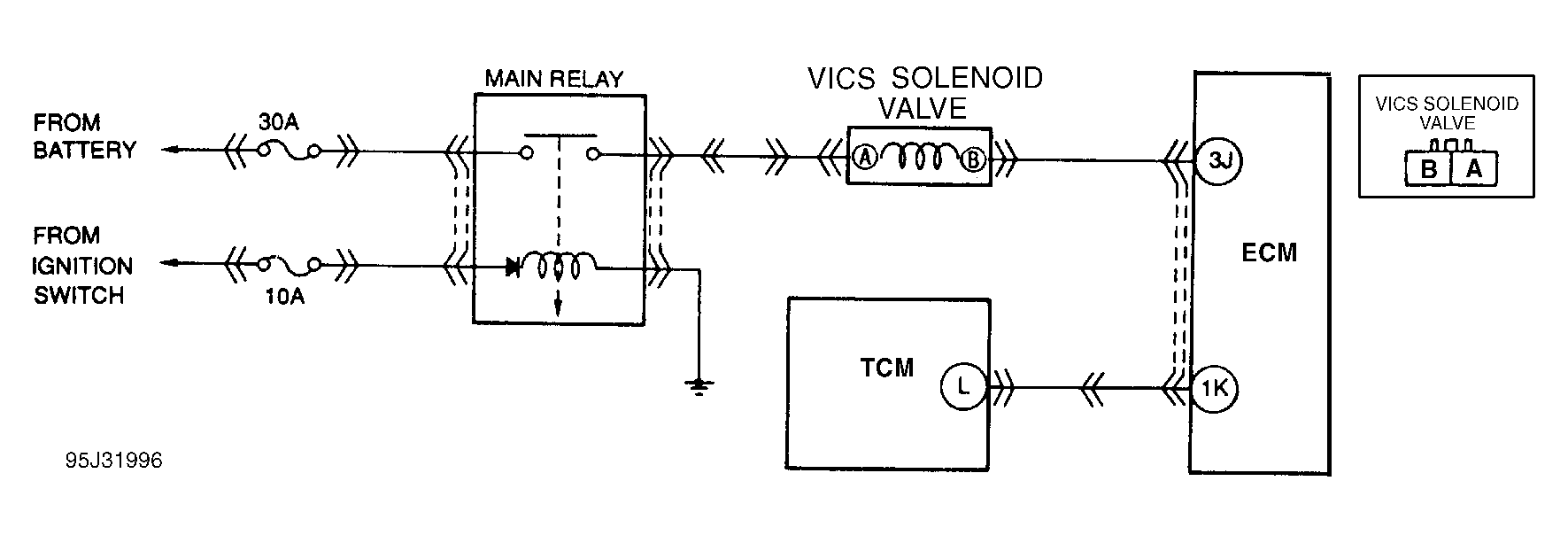

Fig 2: Trouble Code No. 65 Vics Solenoid Valve & TCM Circuit Diagram
G95J31996
