Code 8: Volume Air Flow Sensor

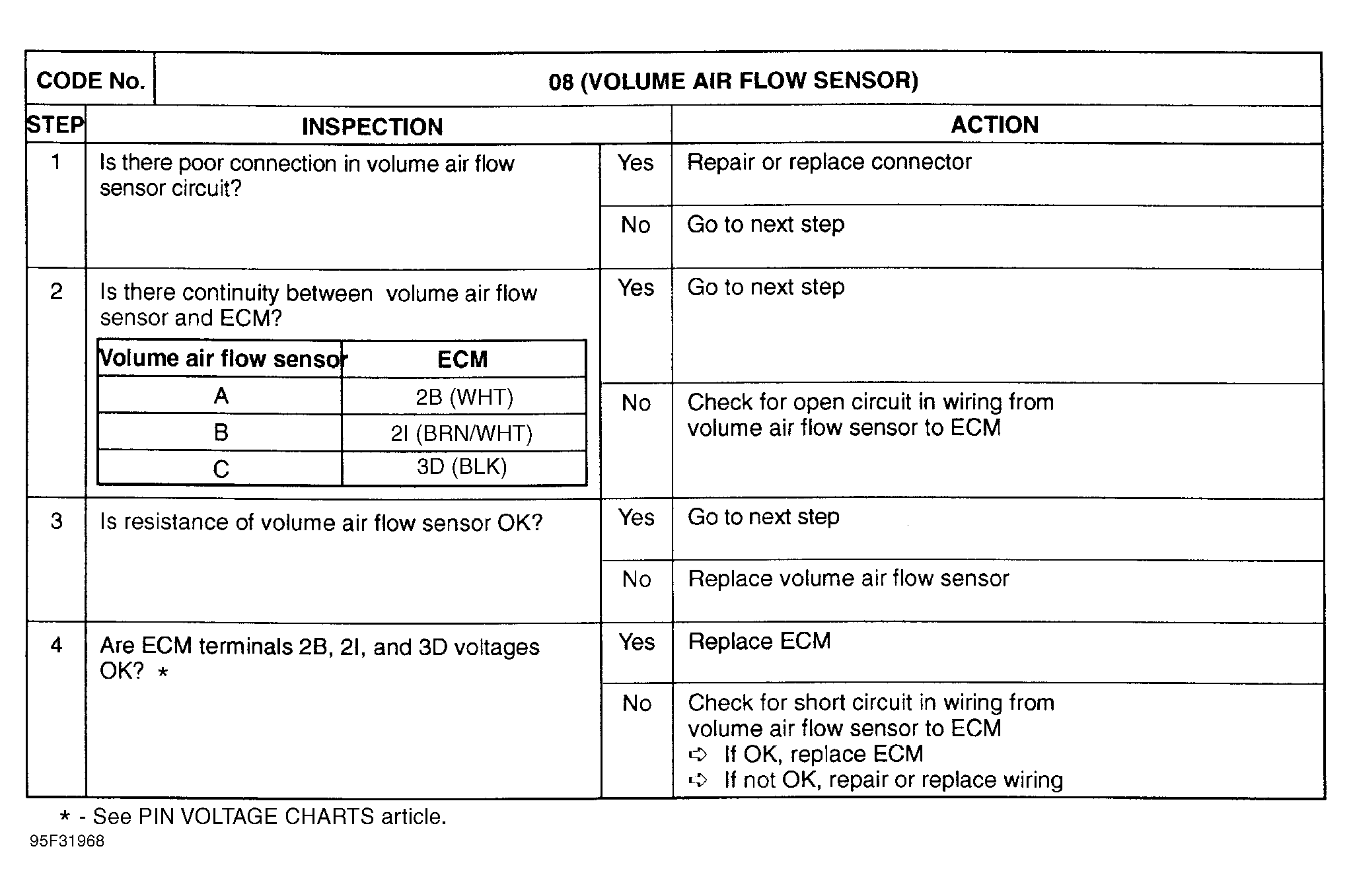

Fig 1: Trouble Code No. 8 Volume Air Flow Sensor
G95F31968

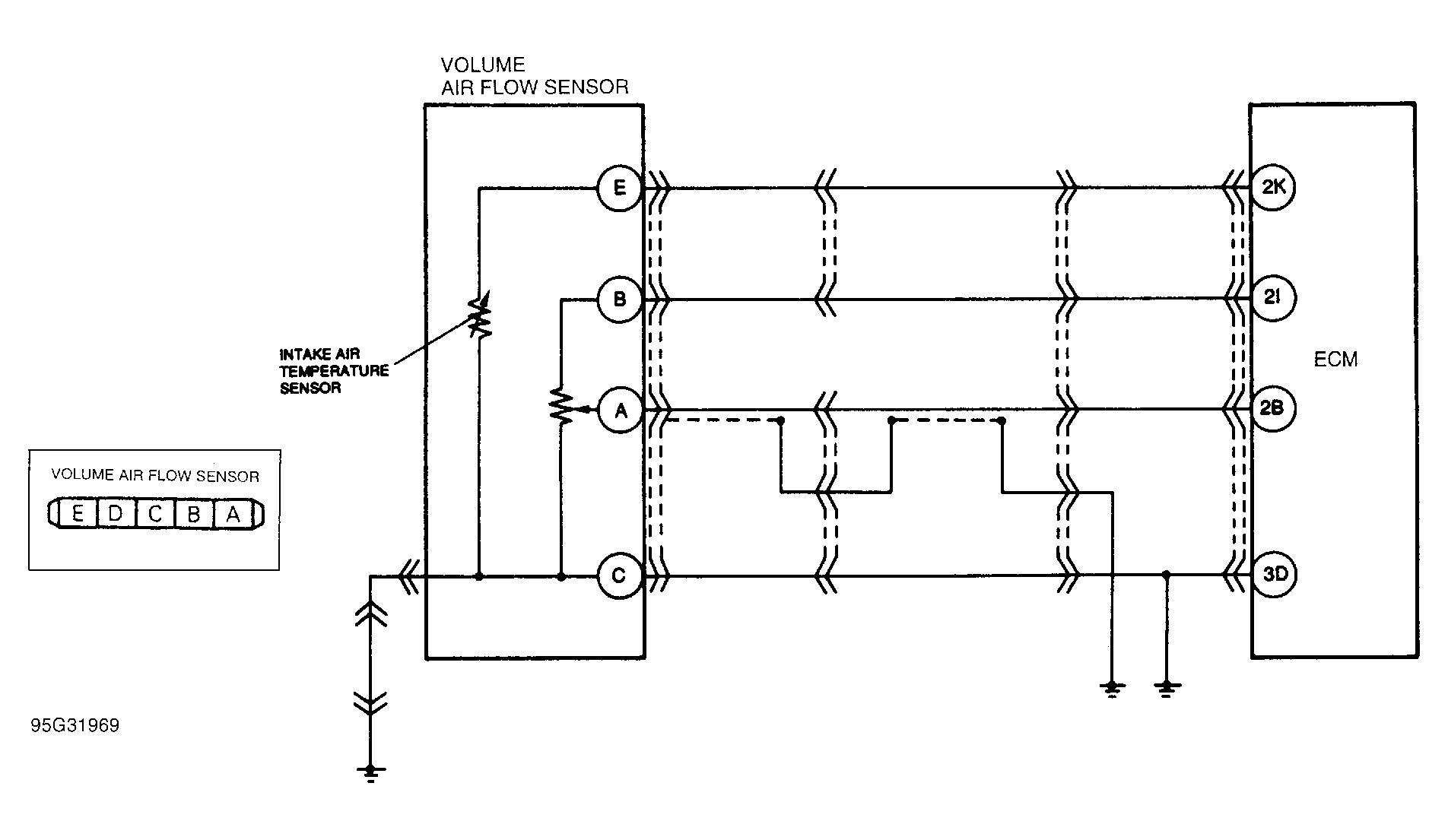

Fig 2: Trouble Code No. 8 Volume Air Flow Sensor Circuit Diagram
G95G31969
