Torque Specifications

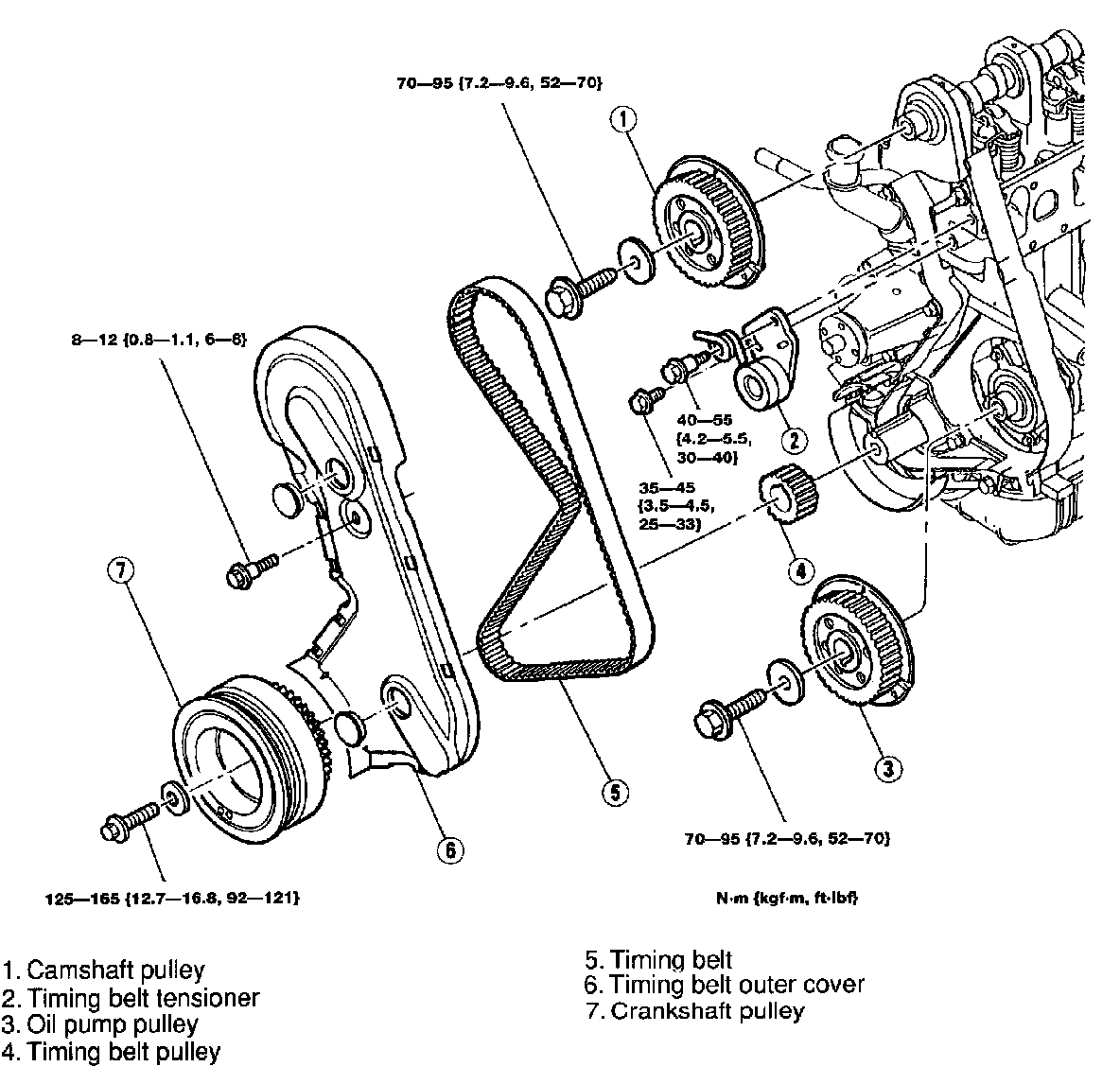

Timing Components:

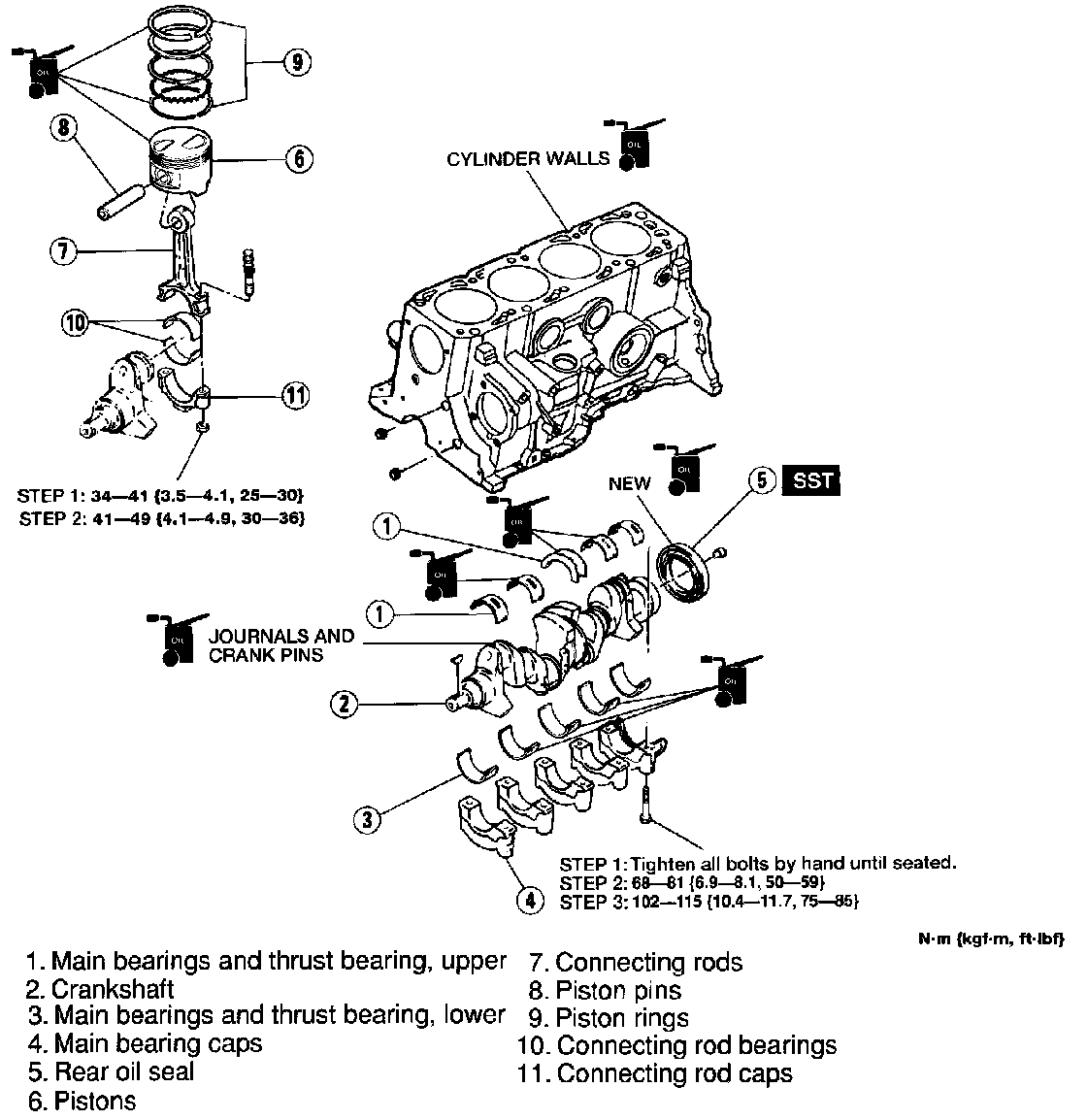

Lower Engine:

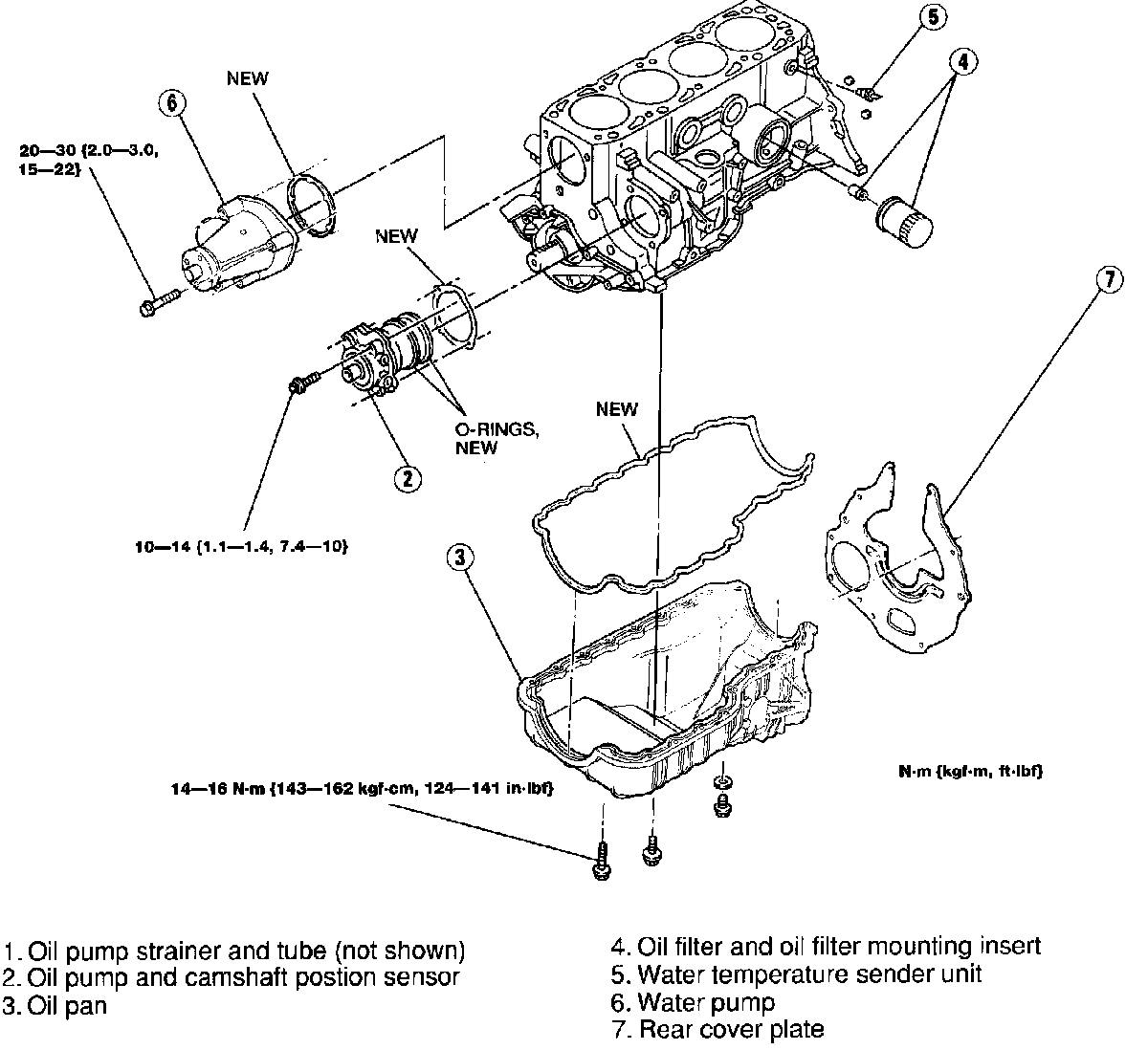

Water Pump/Oil Pan:

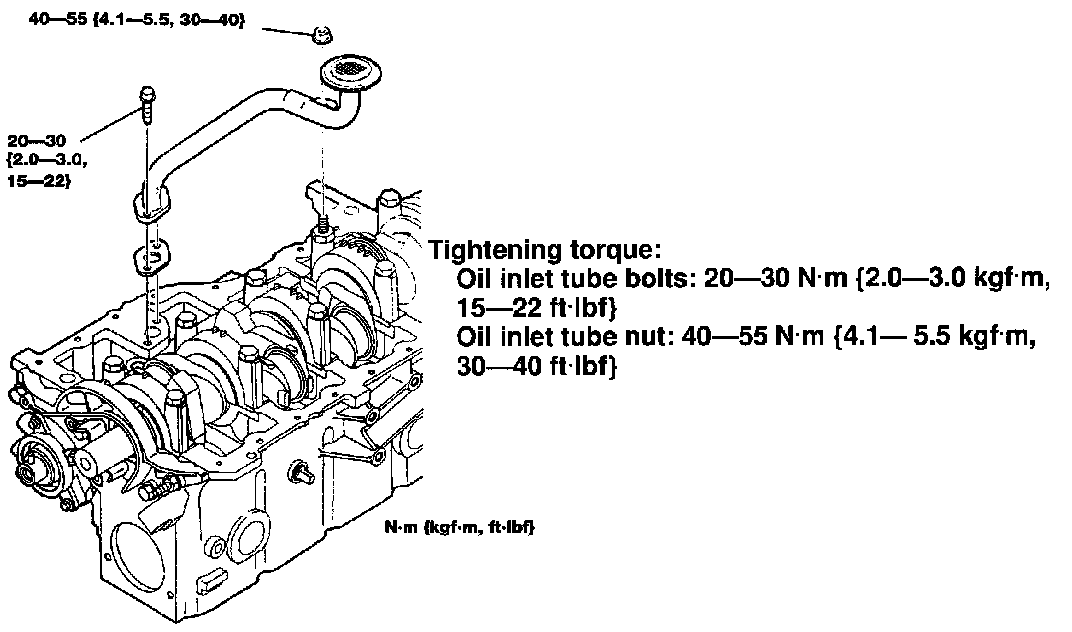

Oil Strainer & Tube:

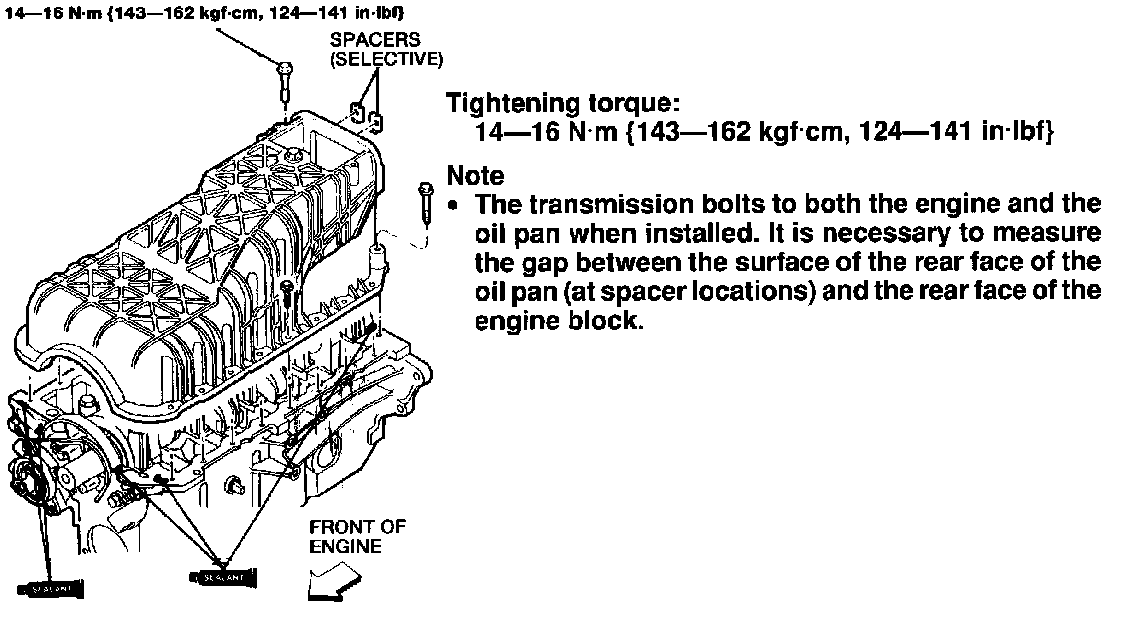

Oil Pan:






Flex Plate (A/T) Torque/Sequence:






Flywheel (M/T) Torque/Sequence:
