Engine Control Module




Terminal location


Terminal Voltage Chart:

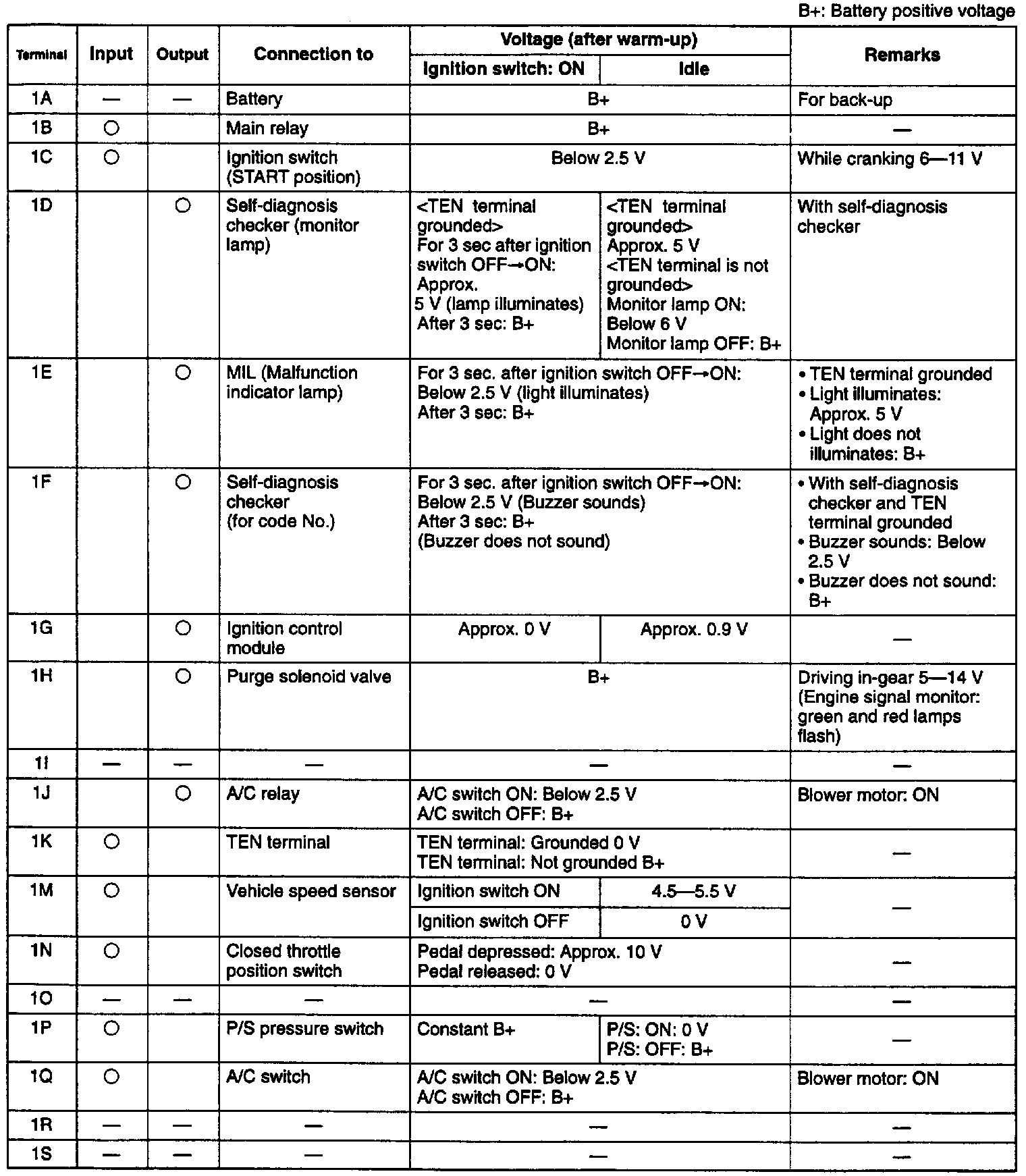

1A through 1S

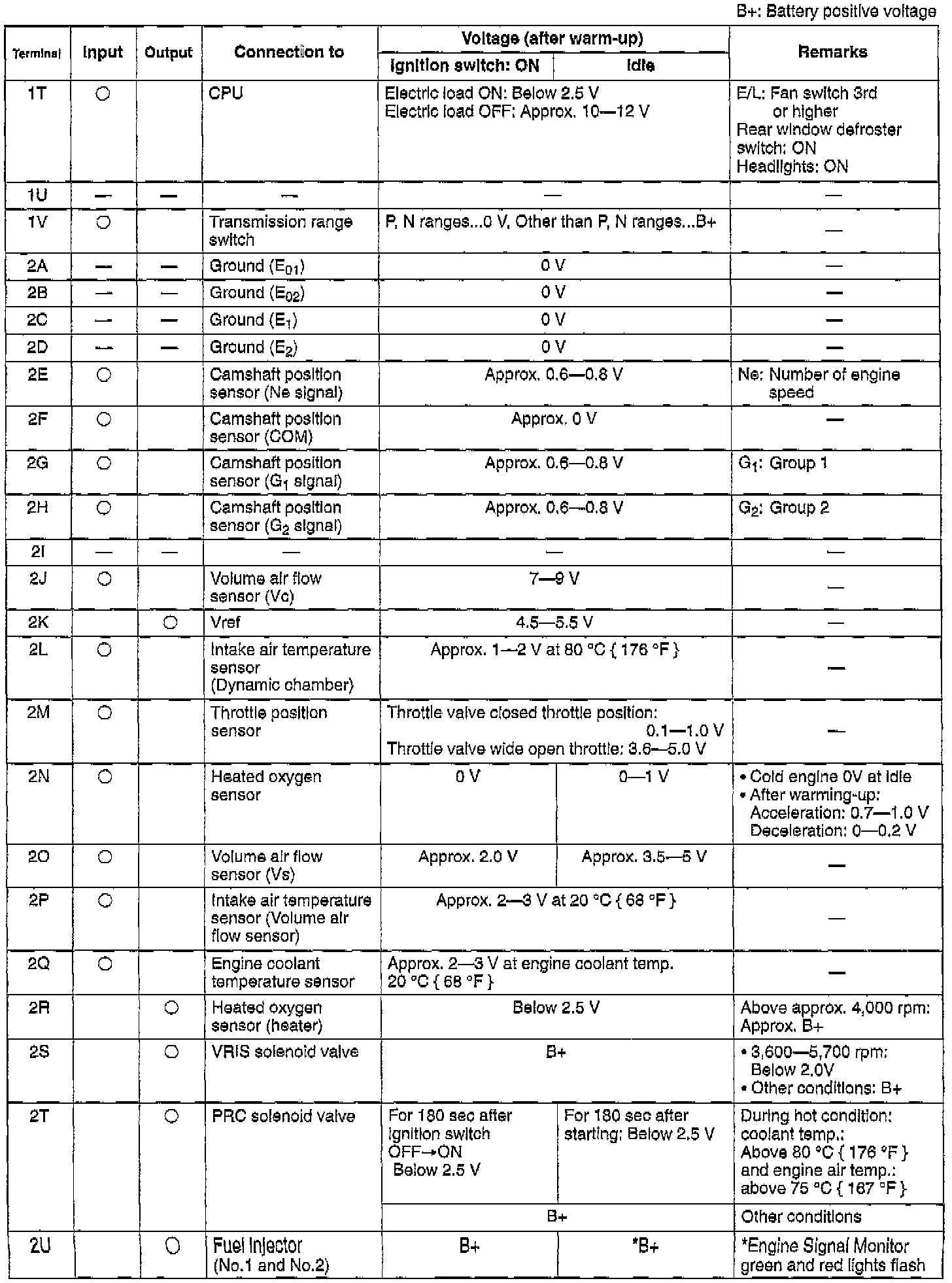

1T through 2U




2V through 2Z
