Home >> Mazda >> 1995 >> MPV 4WD V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Timing Components >> Timing Belt

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

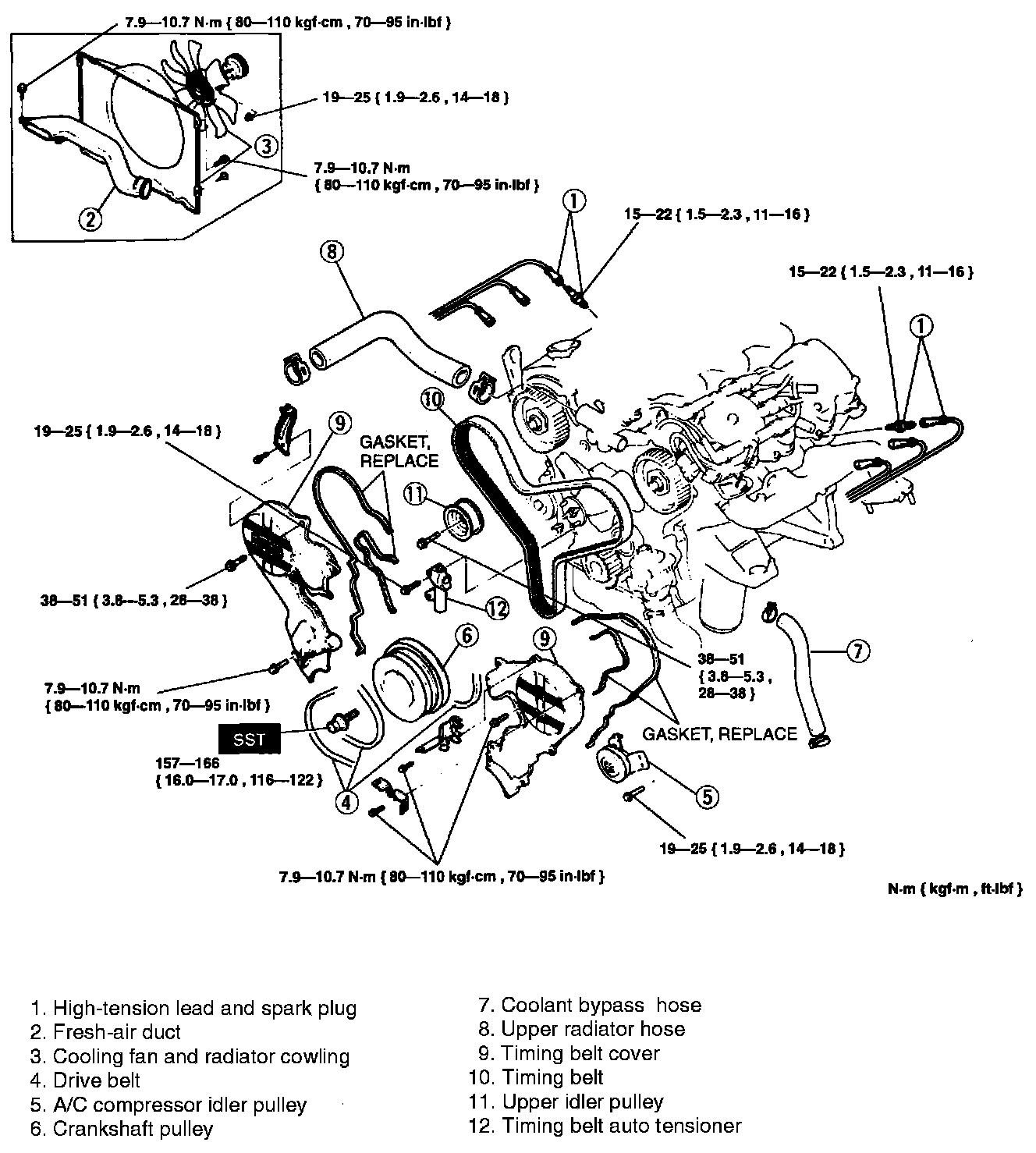

Timing Belt
