Control Module: Testing and Inspection

Inspection
1. Turn the ignition switch ON, and check the Transmission Control Module terminal voltage, referring to the Terminal Voltage Charts.
2. If not correct, check or replace the component(s), wiring, and/or Transmission Control Module.

Terminal Voltage Charts

Terminal Layout:

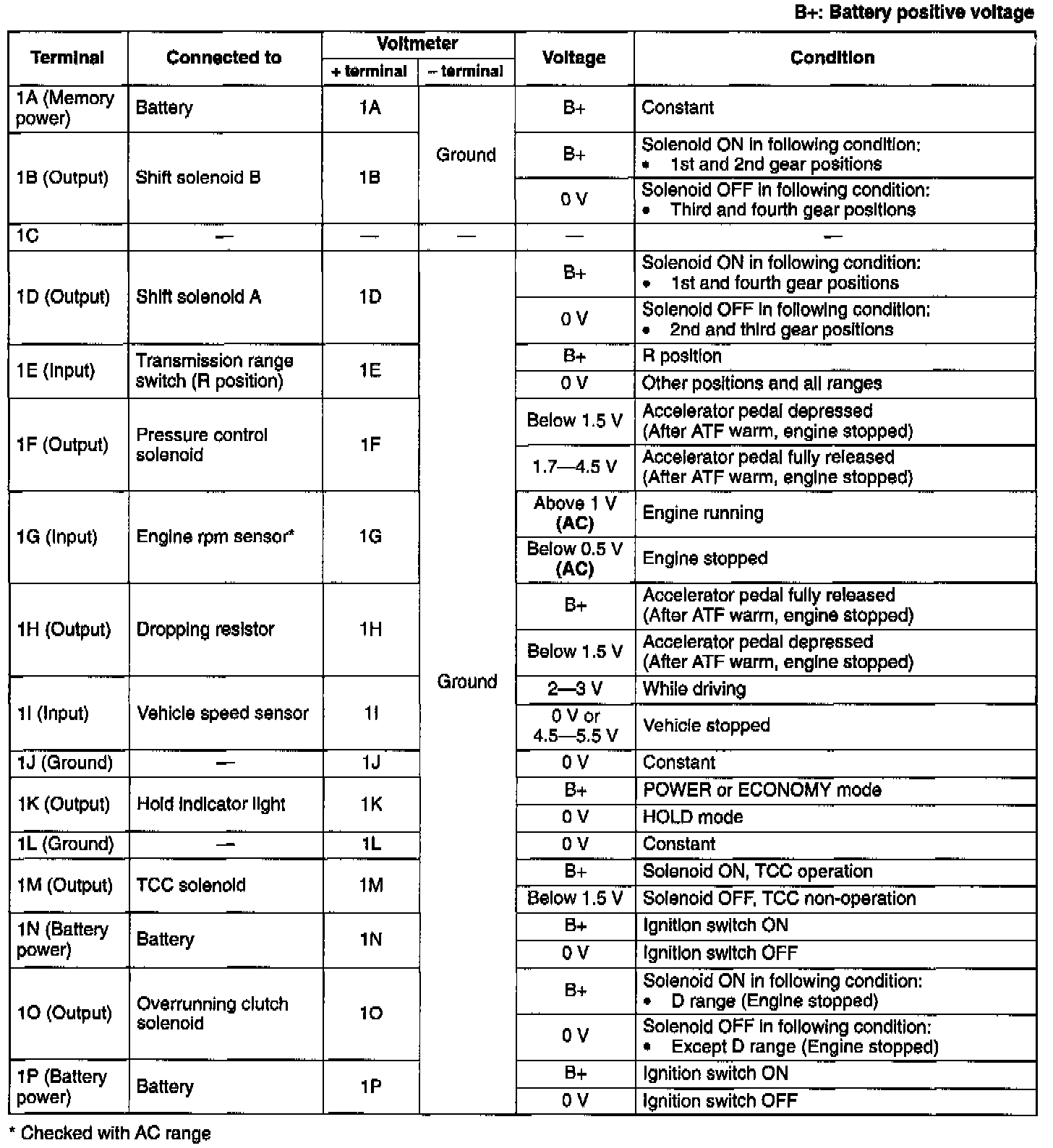

Terminal 1A Through 1P:

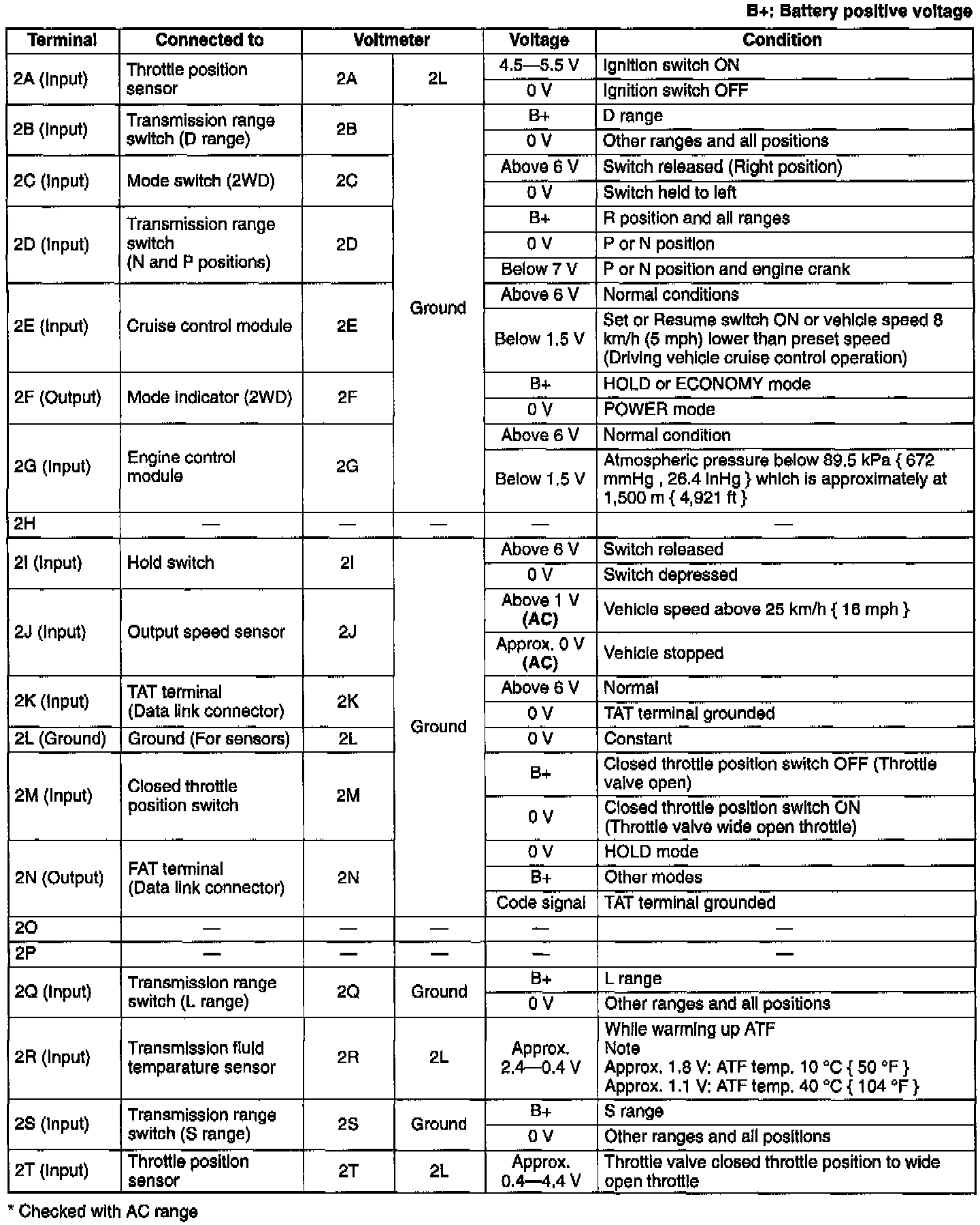

Terminal 2A Through 2T:
