Power Mirror Motor

Disconnect power mirror motor connector. Apply battery voltage to specified terminals of power mirror motor connector. SeeFig 1 . If mirror does not move as specified, replace power mirror assembly.

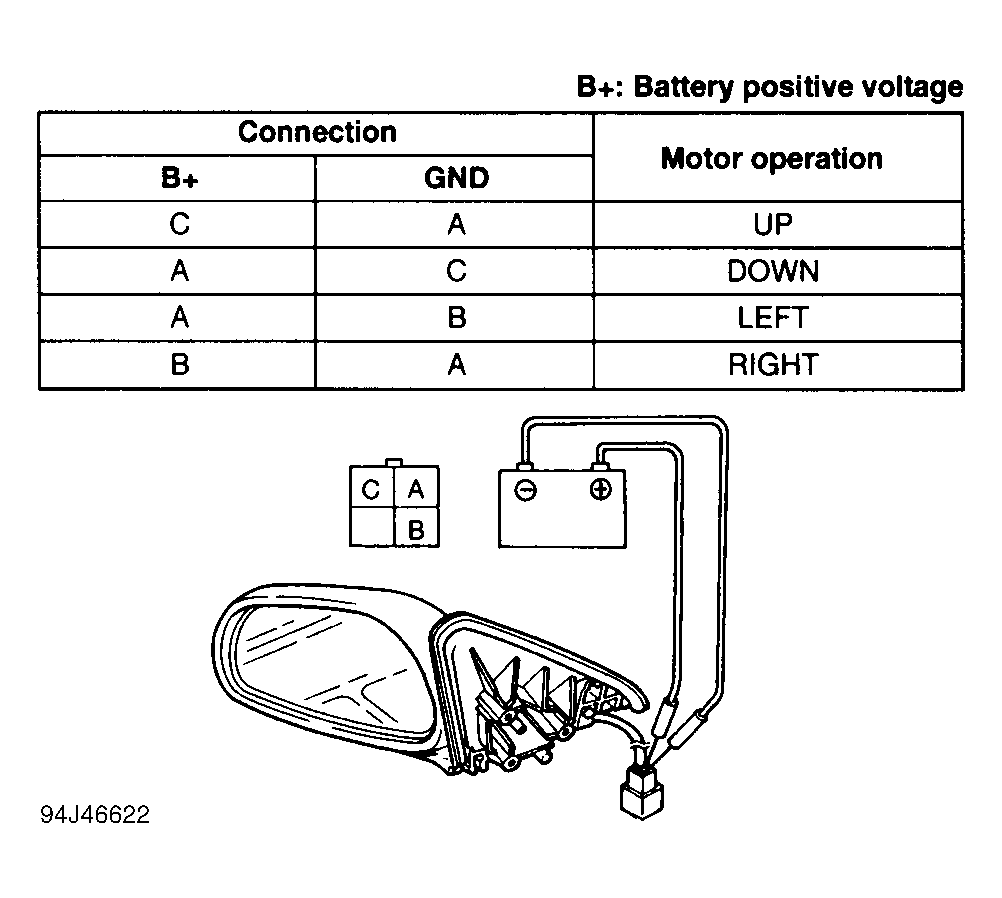

Fig 1: Testing Power Mirror Motor
G94J46622Courtesy of MAZDA MOTORS CORP.
