Code 12: Throttle Position Sensor

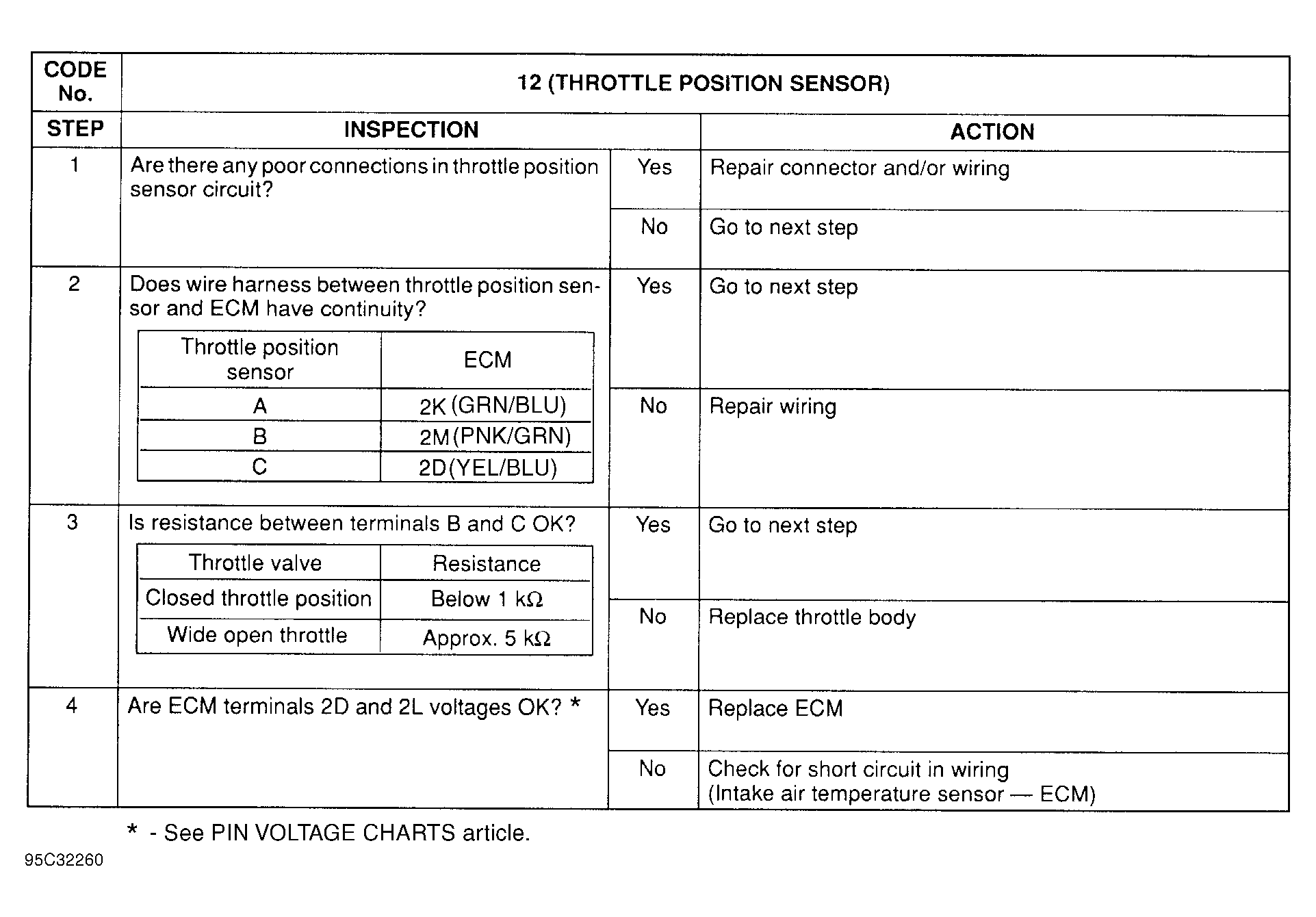

Fig 1: Trouble Code No. 12 Throttle Position Sensor
G95C32260

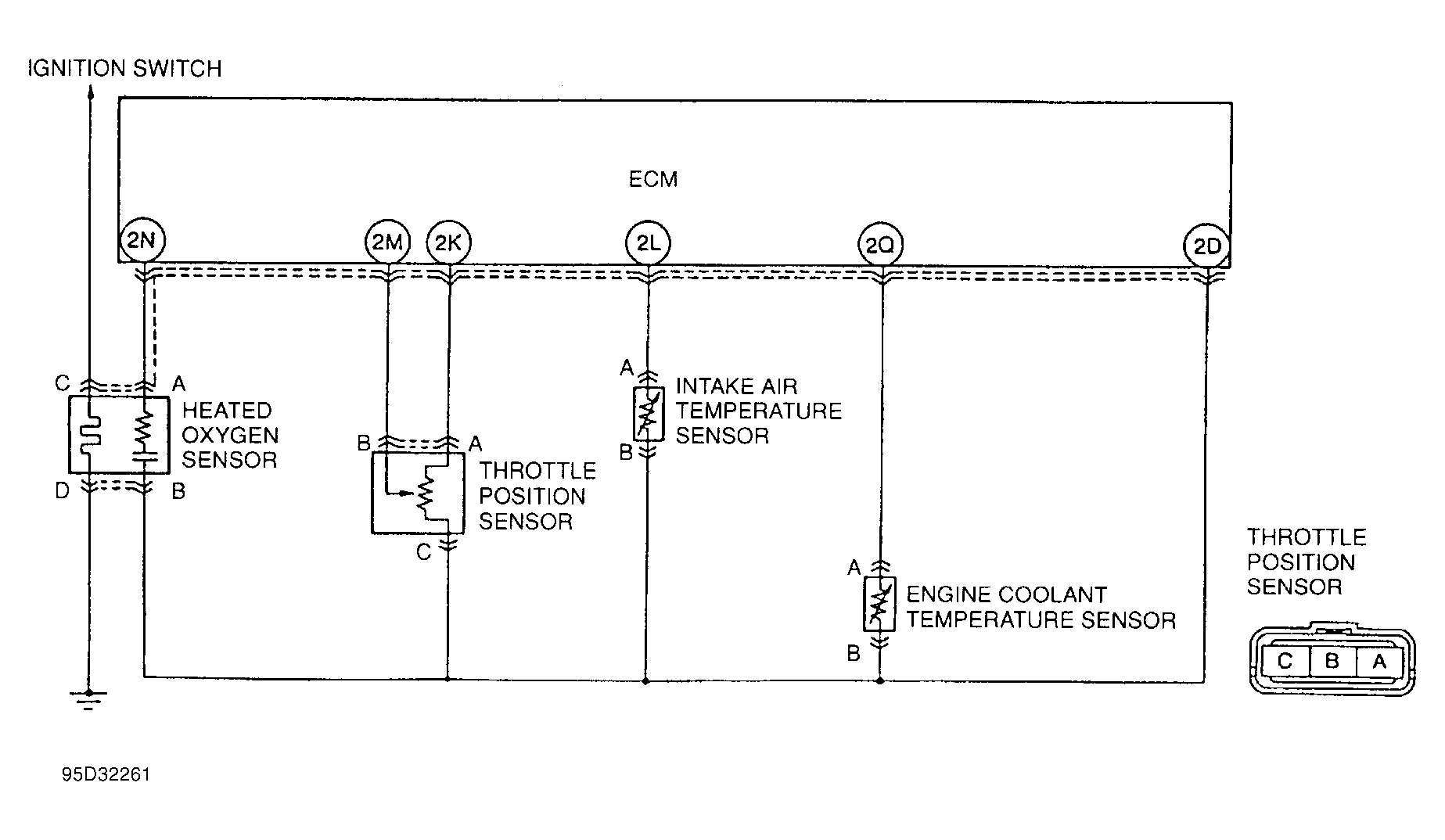

Fig 2: Trouble Code No. 12 throttle position sensor circuit diagram
G95D32261
