Code 25: Pressure Regulator Control Solenoid Valve

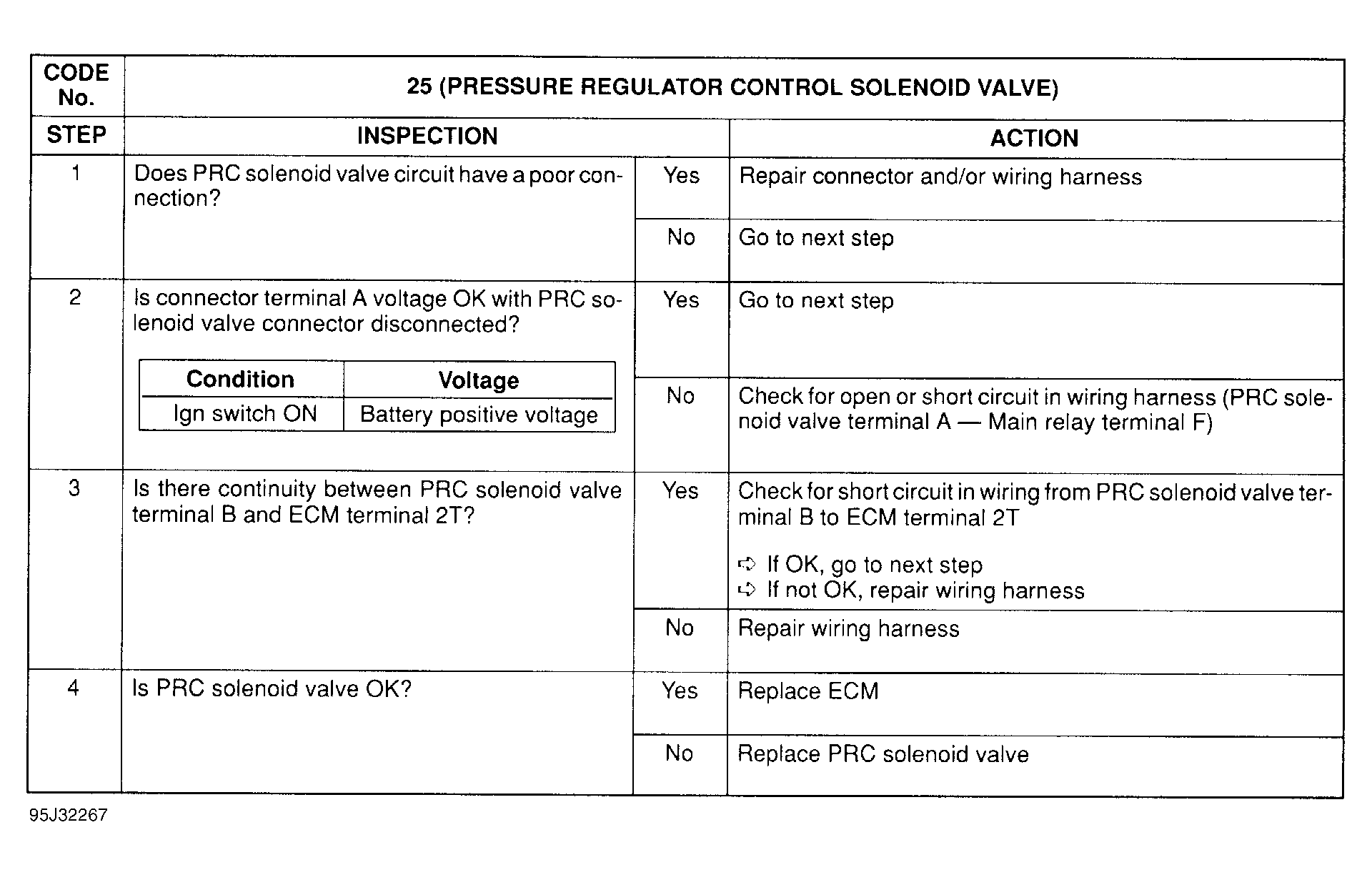

Fig 1: Trouble Code No. 25 Pressure Regulator Control Solenoid Valve
G95J32267

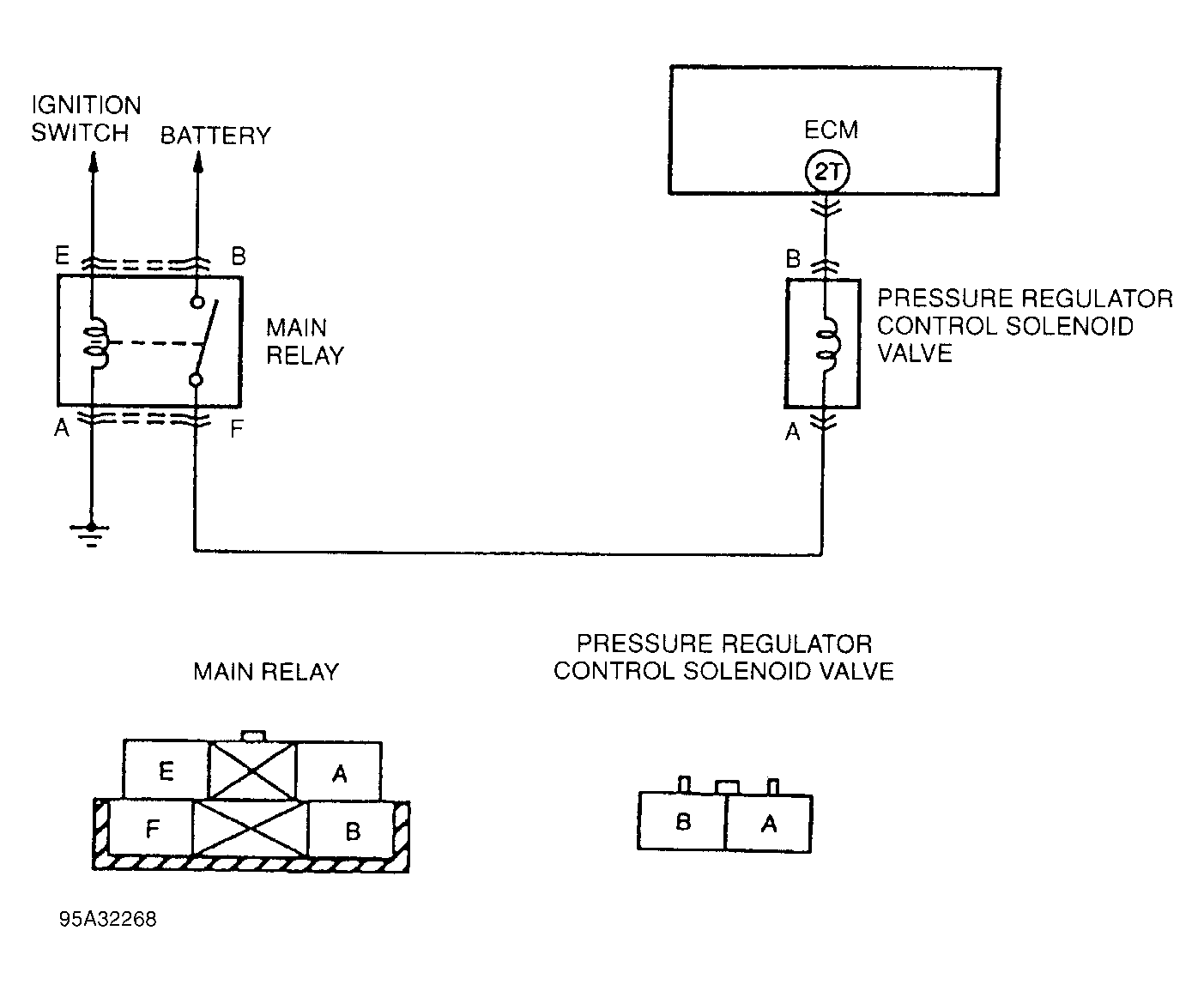

Fig 2: Trouble Code No. 25 Pressure Regulator Control Solenoid Valve Circuit Diagram
G95A32268
