Trouble Code Identification Charts: Notes

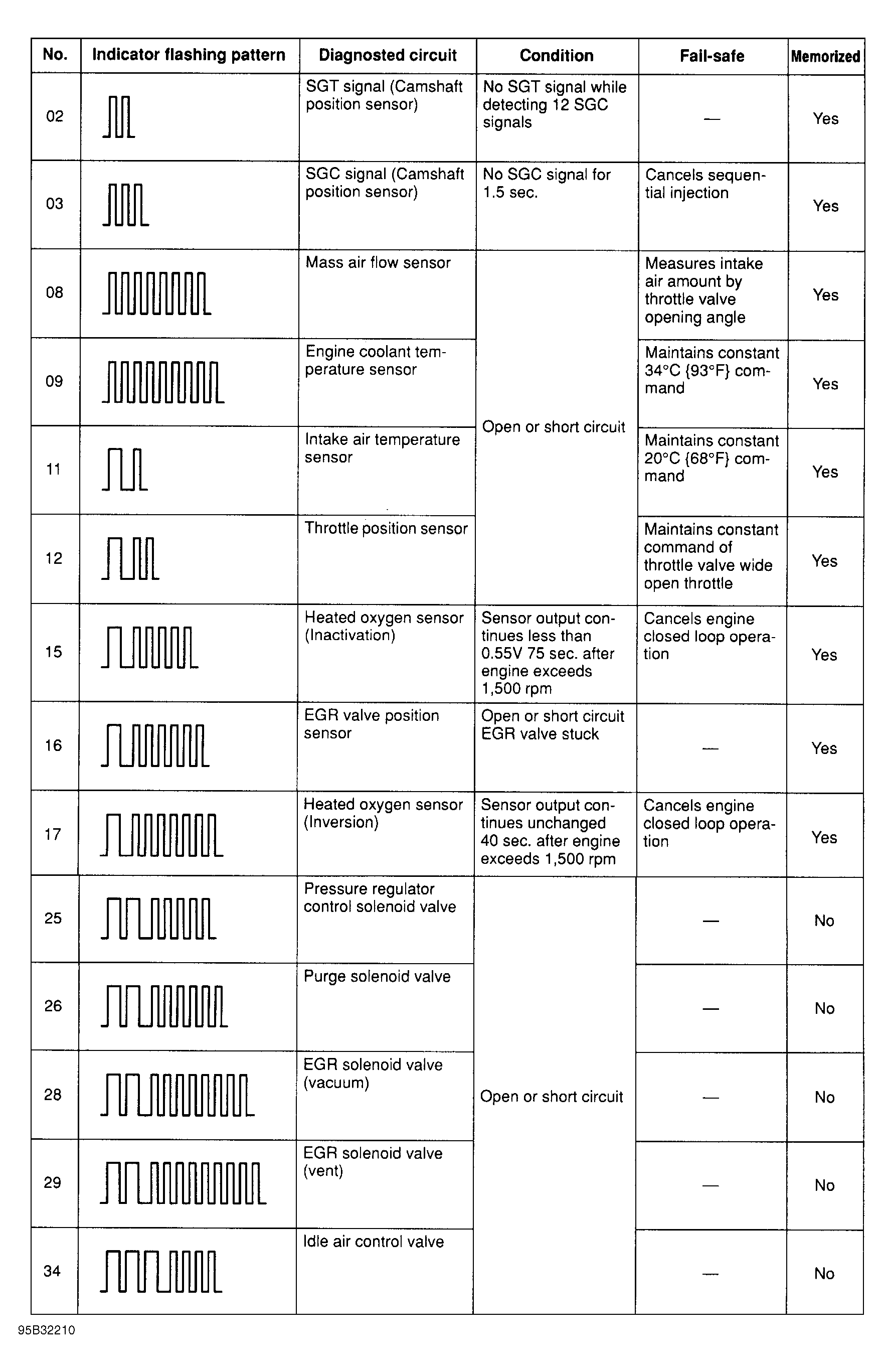

Fig 1: Diagnostic Trouble Code Definition Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
