Control Switch

Using ohmmeter, check continuity between indicated switch connector terminals when switch is activated as specified. See Fig 1 and Fig 2 . Replace switch if it does not test as specified.

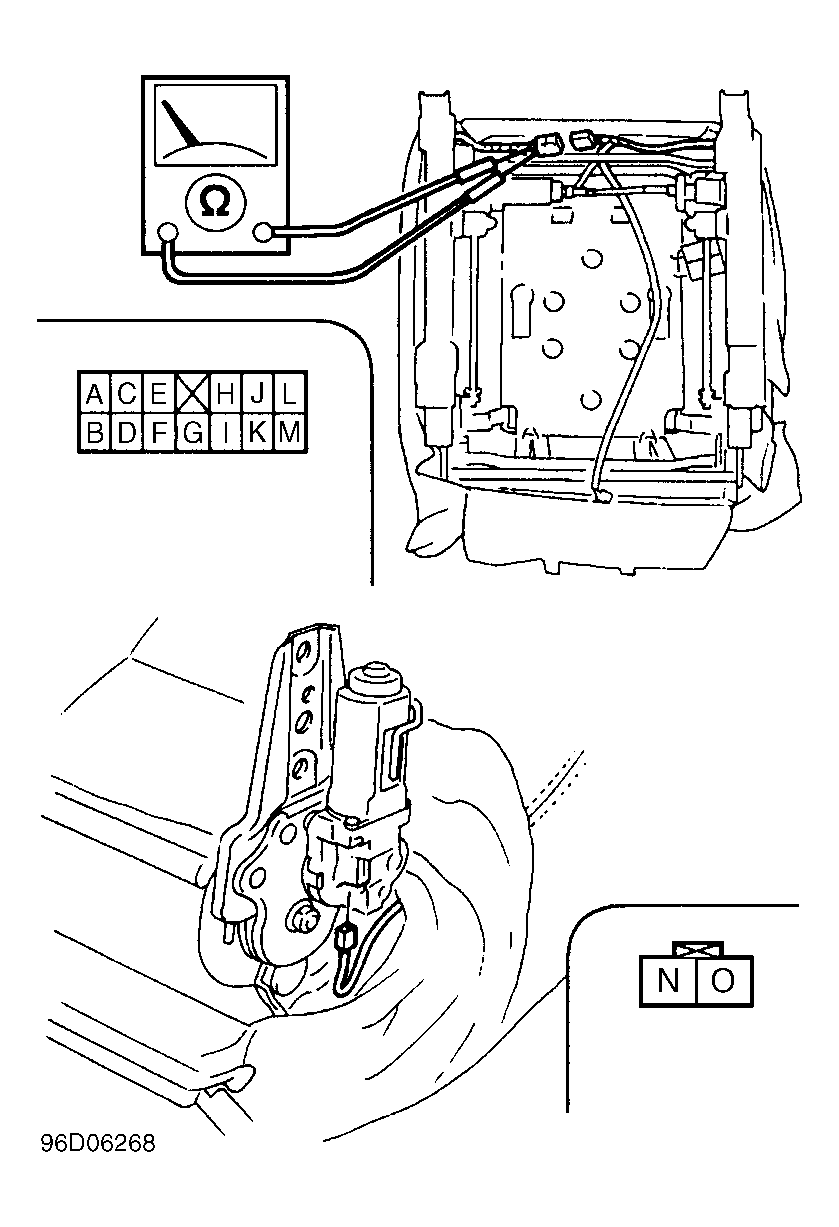

Fig 1: Control Switch Connector & Motor Connector Terminal ID

Courtesy of MAZDA MOTORS CORP.

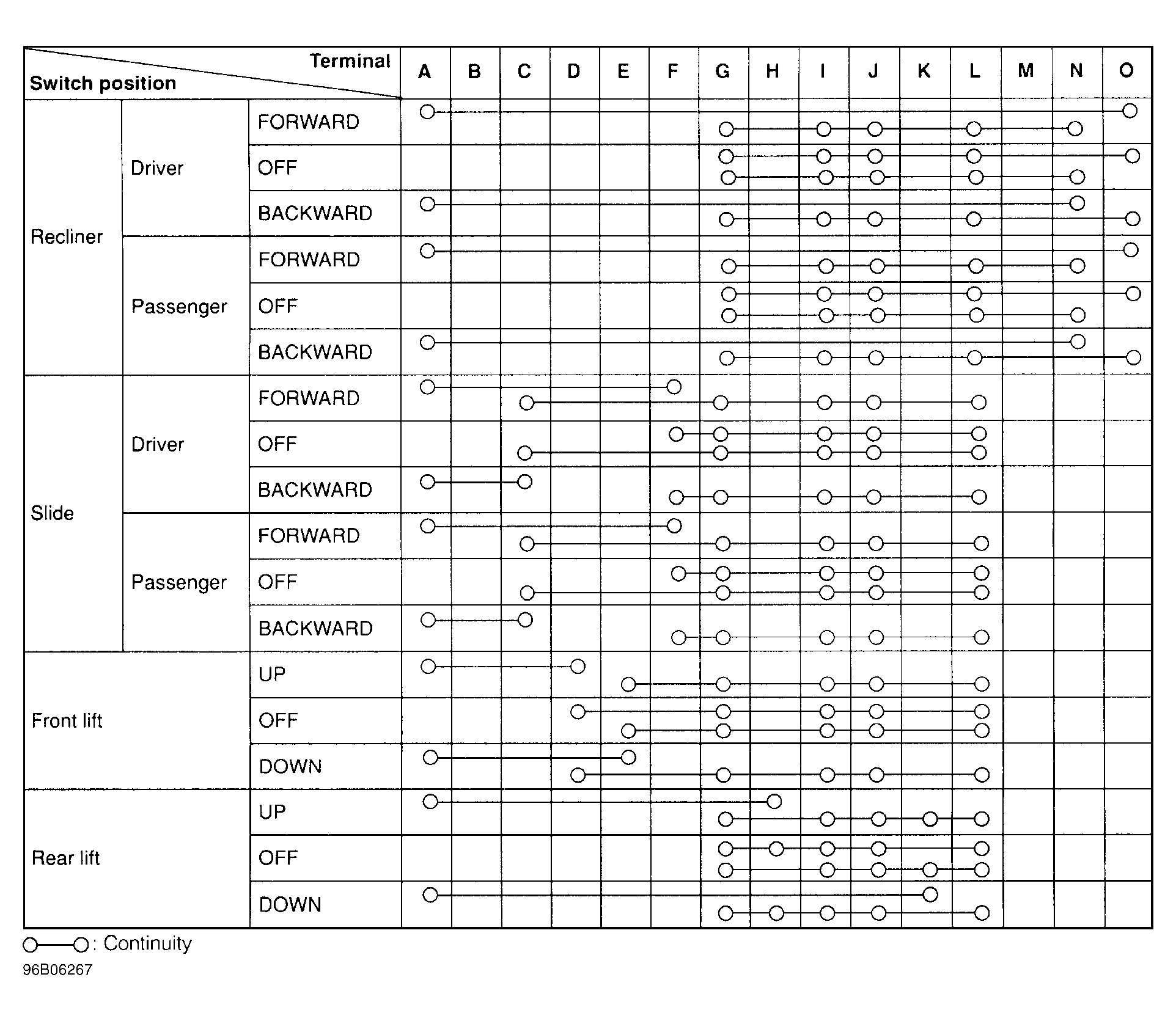

Fig 2: Control Switch Continuity Test Table

Courtesy of MAZDA MOTORS CORP.
