Distributor: Service and Repair

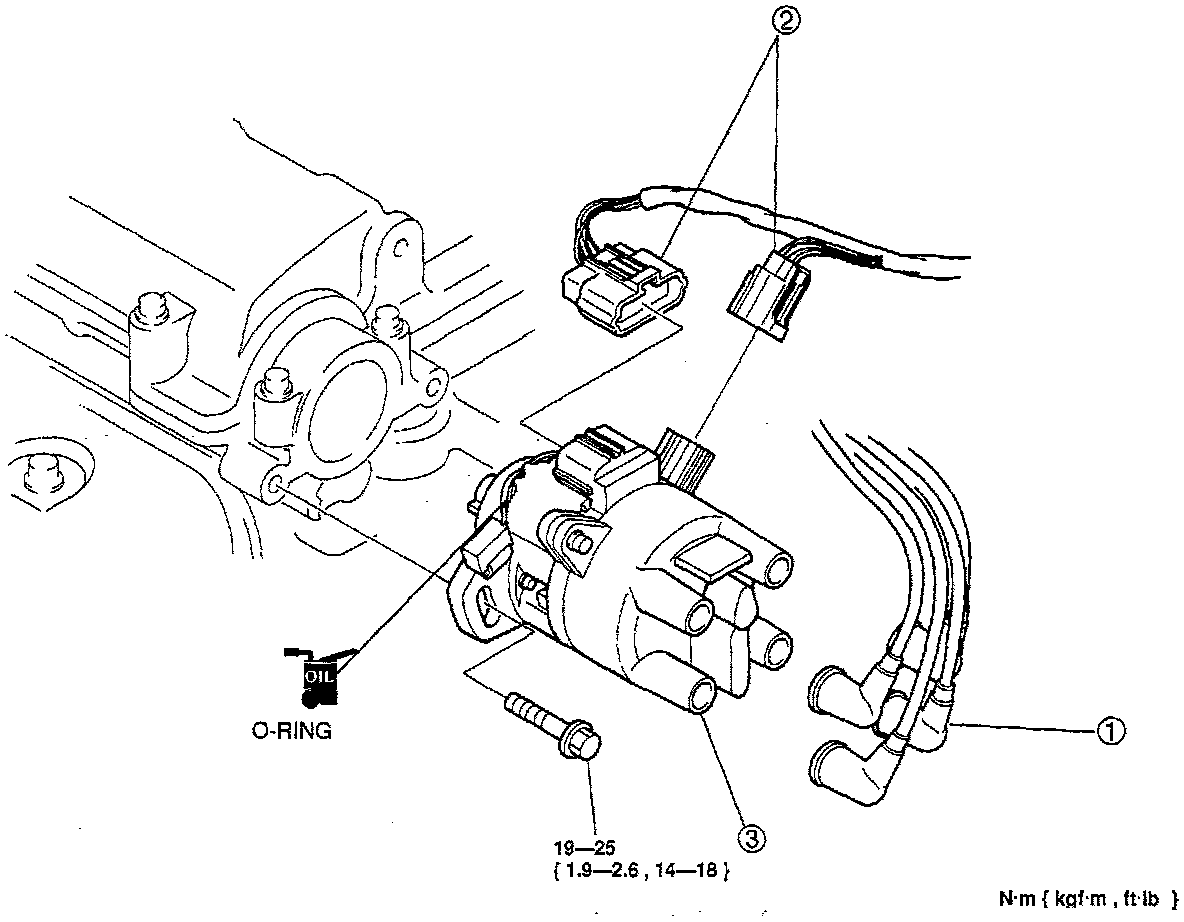

Removal/Installation
1. Disconnect the negative battery cable.
2. Remove the air cleaner.
3. Remove in the order shown in the figure.
4. Install in the reverse order of removal.
5. Adjust the ignition timing.




1. High-tension lead
2. Connector
3. Distributor

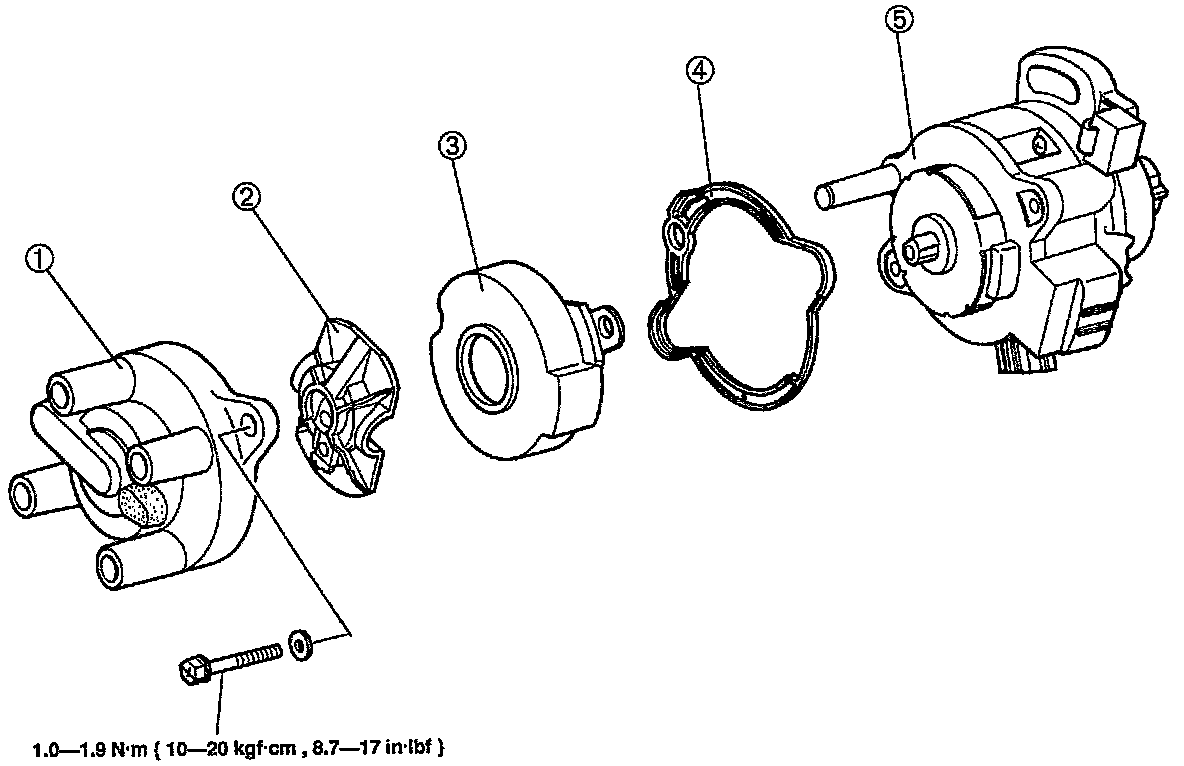

Disassembly/Assembly
1. Remove the distributor.
2. Disassemble in the order shown in the figure.
3. Assemble in the reverse order of disassembly.




1. Distributor cap
2. Rotor
3. Cover
4. Packing
5. Distributor
(Incorporates camshaft position sensor, ignition control module, and ignition coil)
