Torque Specifications

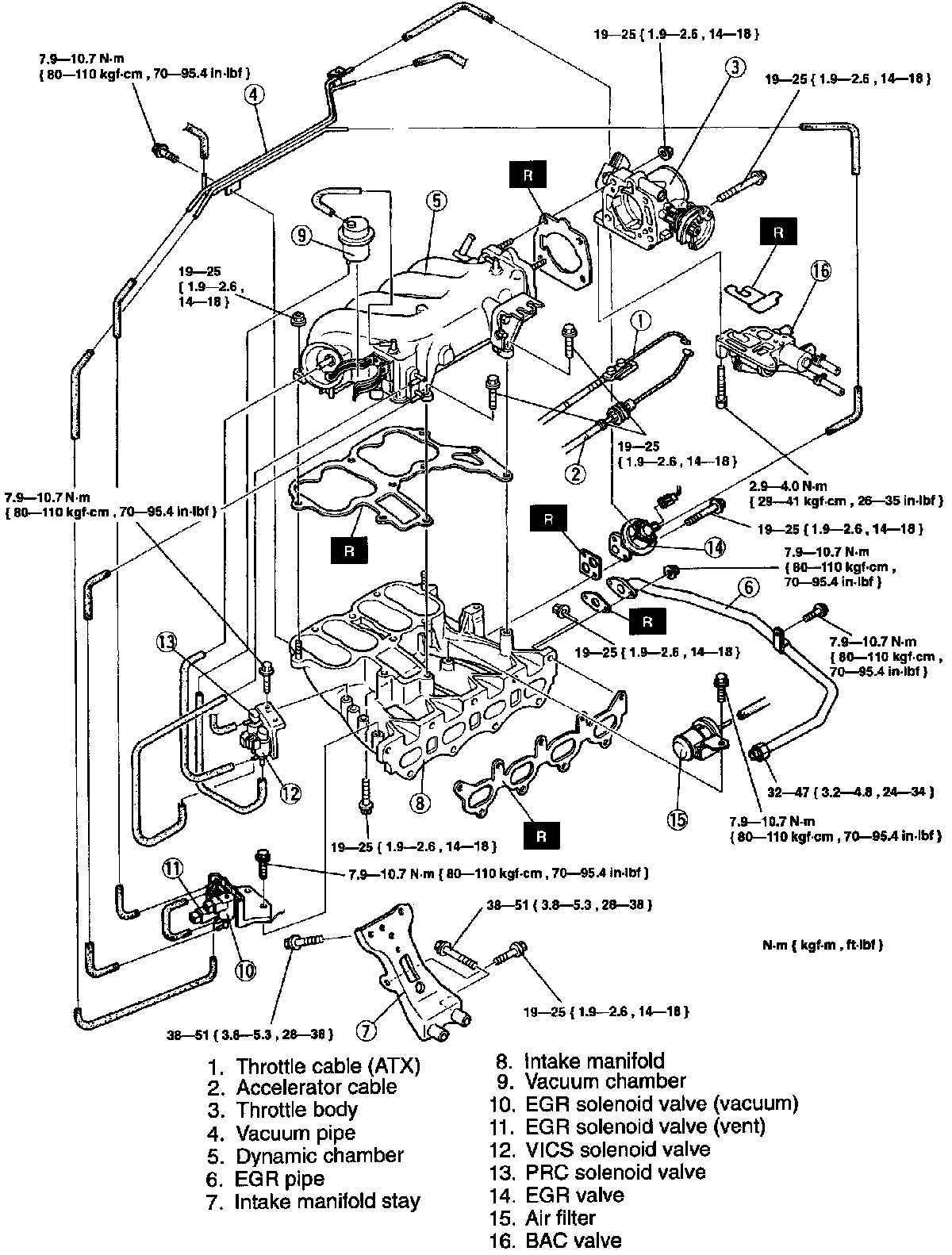

Intake:

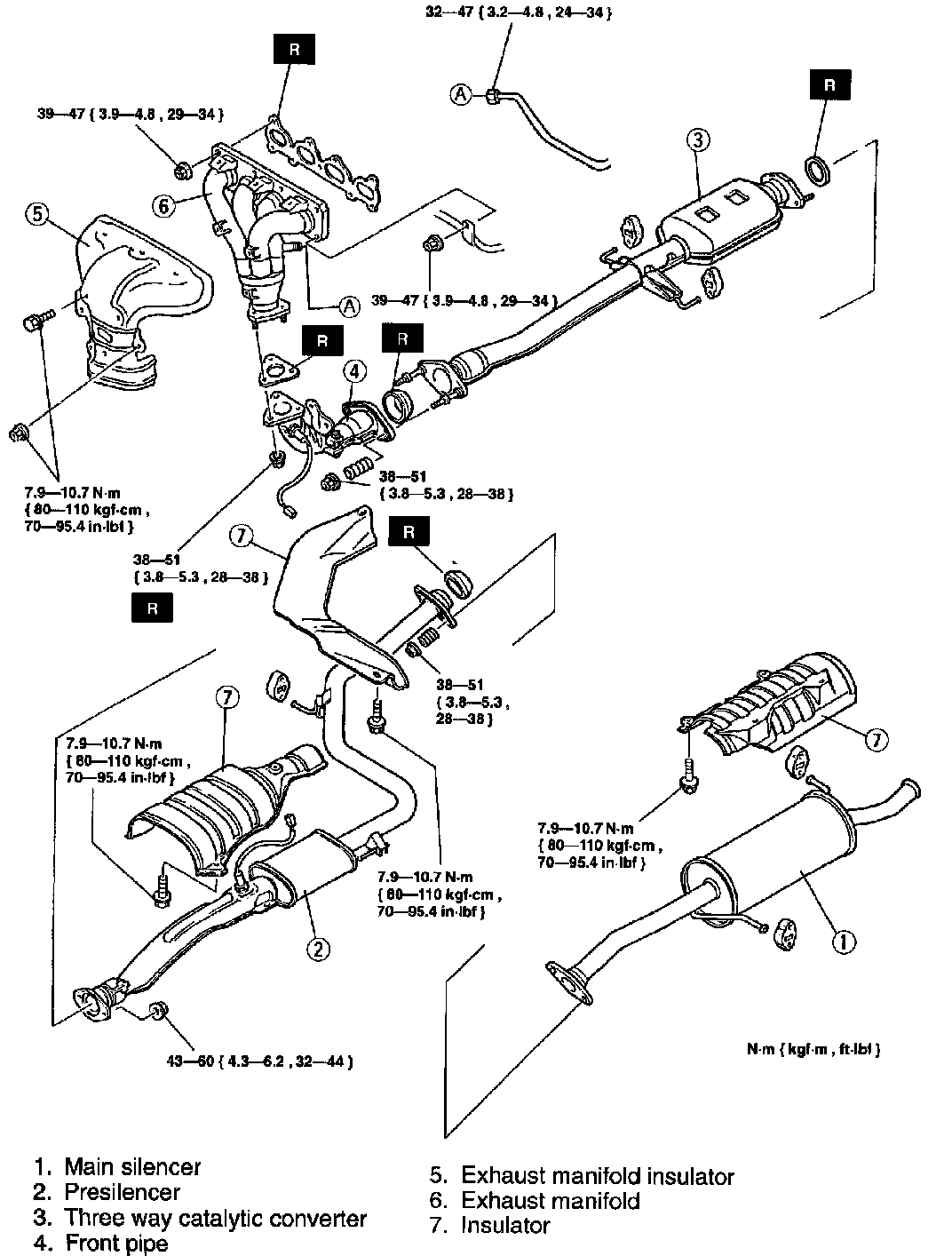

Exhaust Manifold:

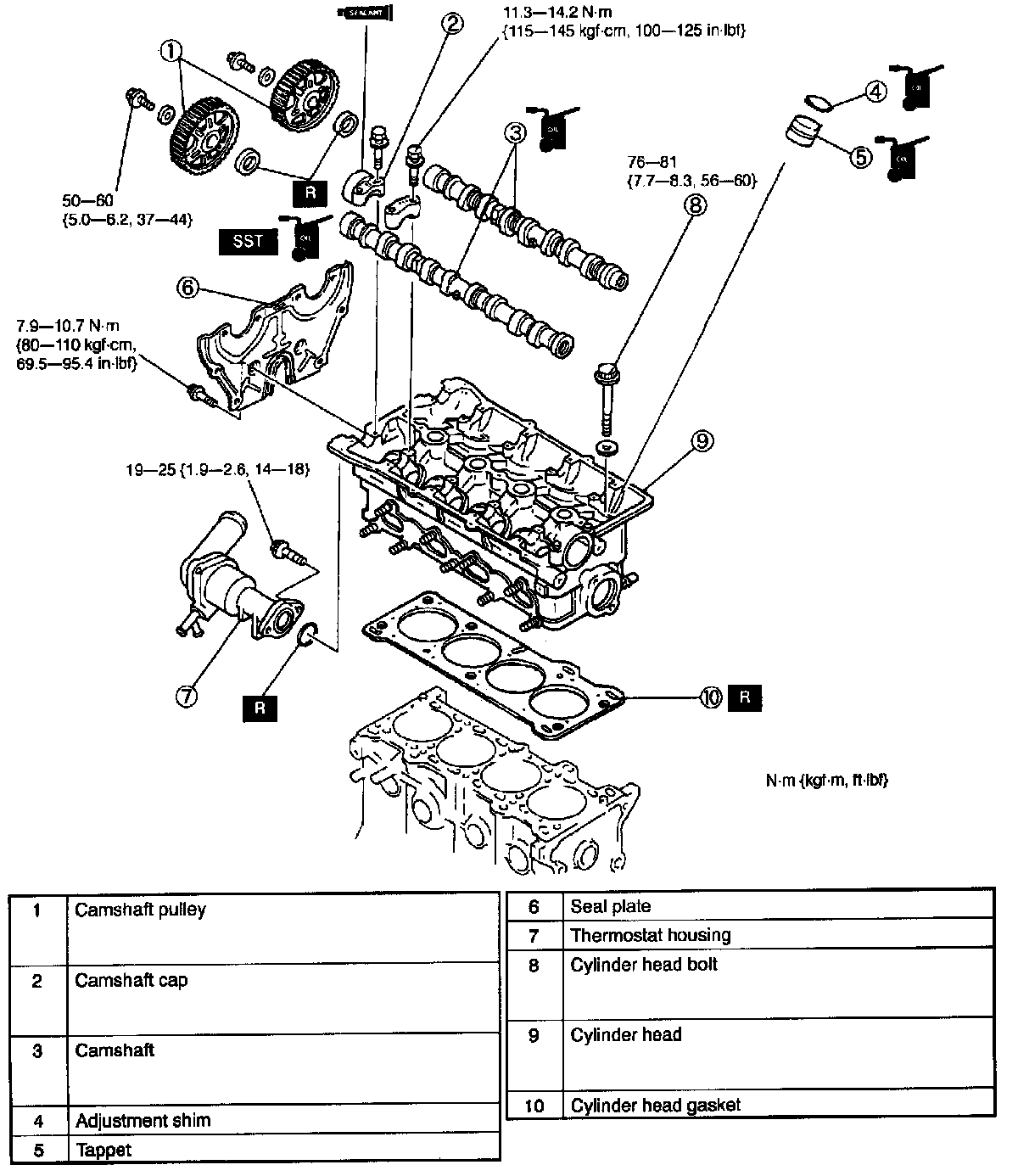

Upper Engine:






Head Torque Sequence:






Cam Holder Torque/Sequence:
