Code 26: Metering Oil Pump Stepping Motor

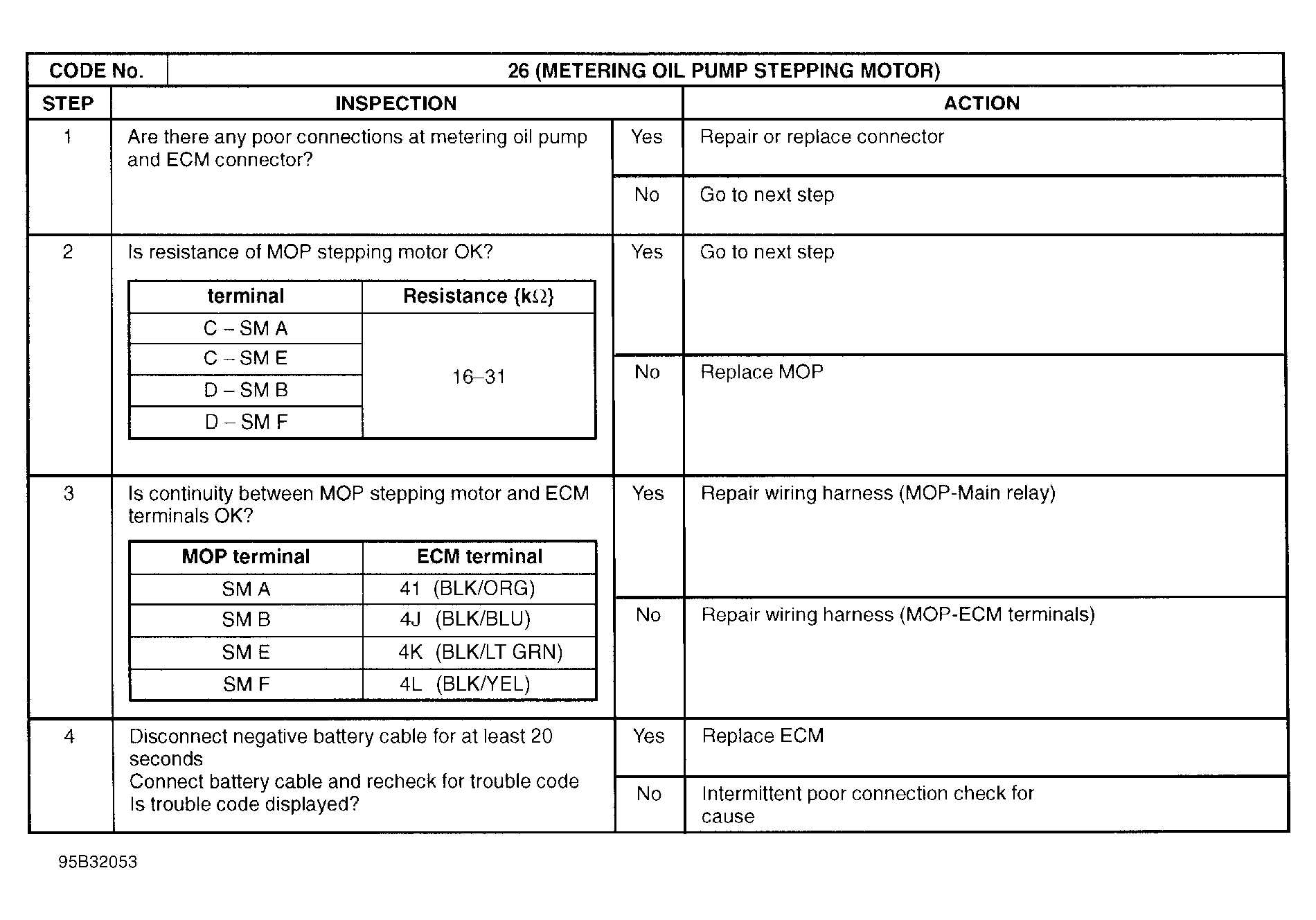

Fig 1: Trouble Code No. 26 Metering Oil Pump Stepping Motor
G95B32053
Fig 2: Trouble Code No. 26 Metering Oil Pump Circuit Diagram
G95D32048
