Code 40: Purge Solenoid Valve

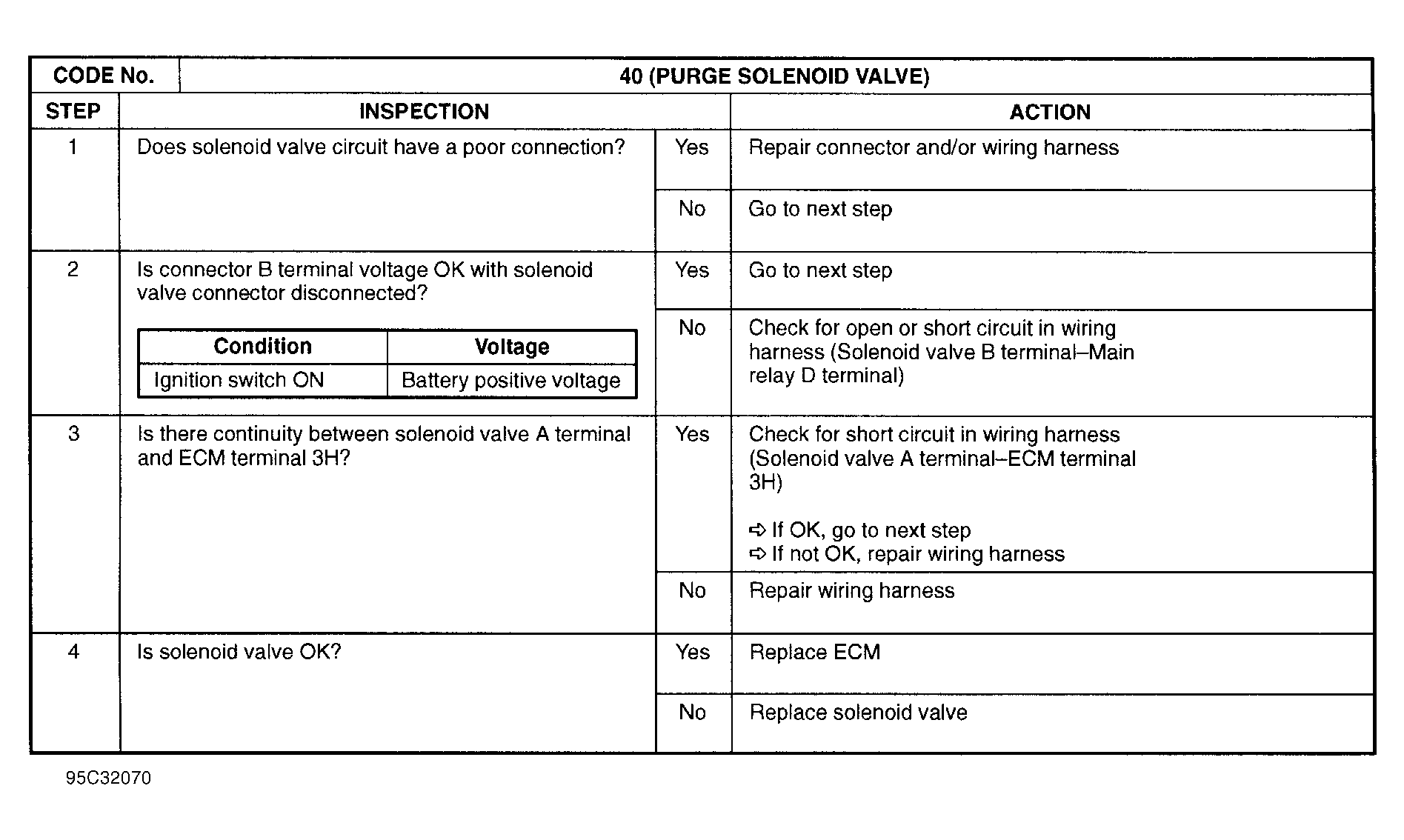

Fig 1: Trouble Code No. 40 Purge Solenoid Valve
G95C32070

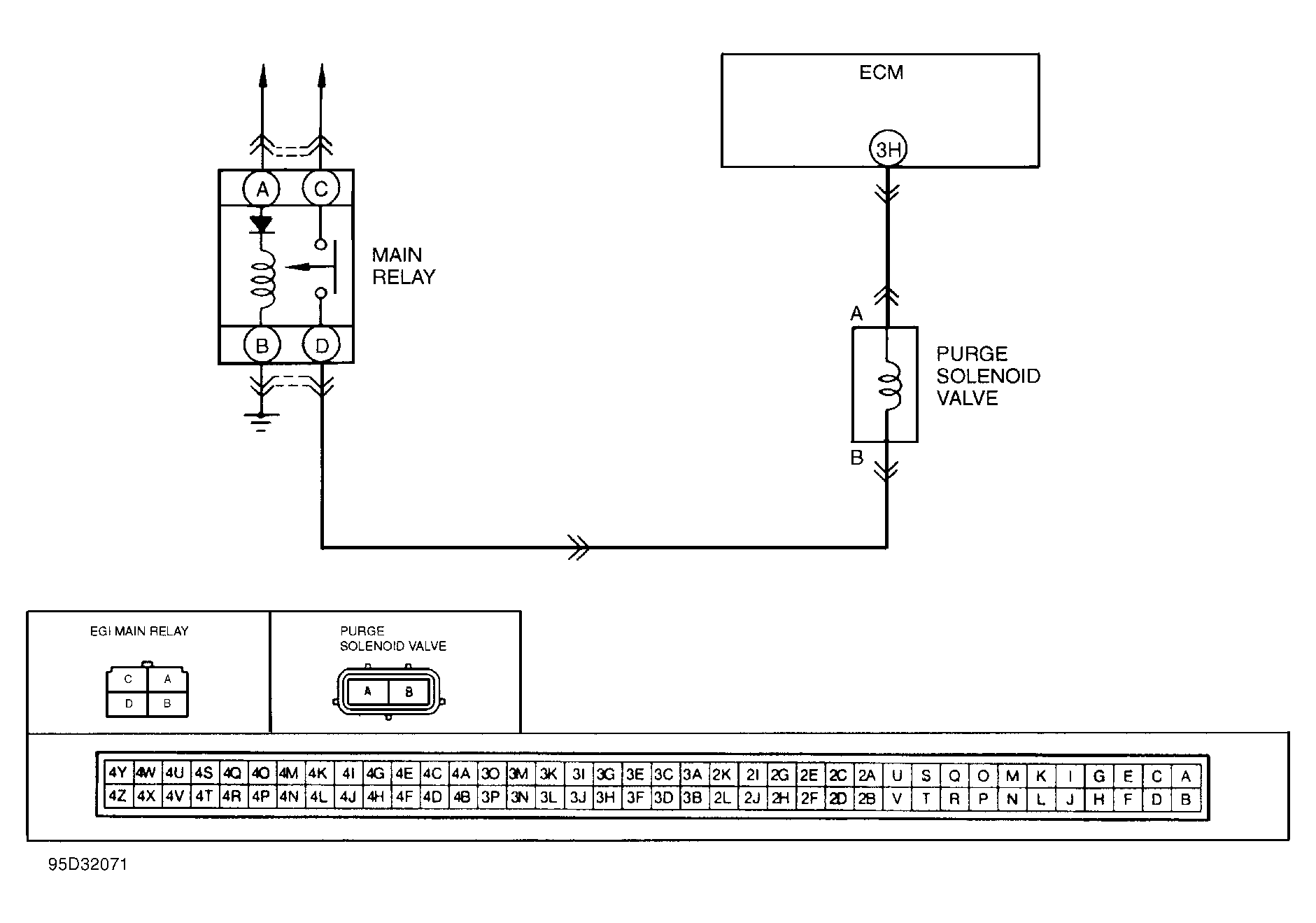

Fig 2: Trouble Code No. 40 Purge Solenoid Valve Circuit Diagram
G95D32071
