Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||||
|---|---|---|---|---|---|---|
| Catalytic Converter Nuts | 48-65 (64-89) | |||||
| Clutch Cover Bolts (1) | 13-19 (18-26) | |||||
| Drive Shaft Bolts | 38-42 (51-58) | |||||
| Flywheel-To-Crankshaft Nuts | 290-361 (393-490) | |||||

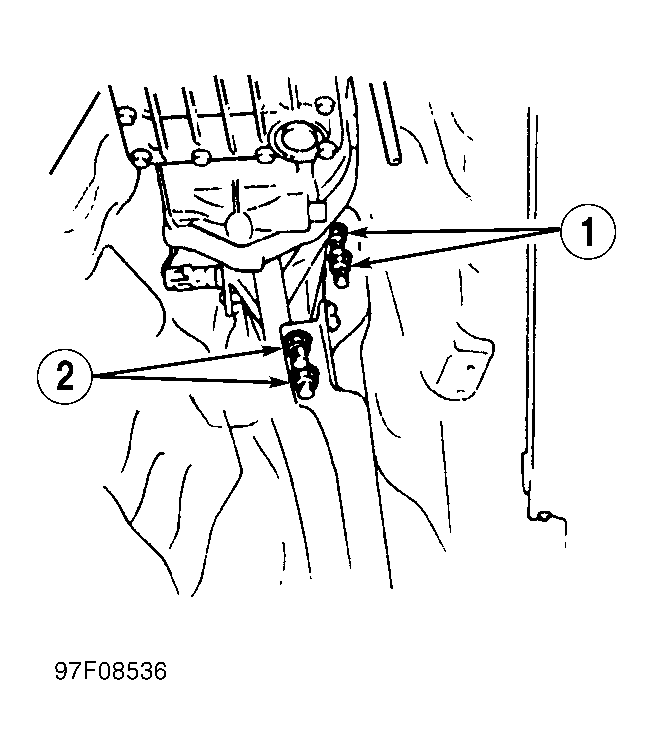

| Power Plant Frame (PPF) Mounting (2) | ||||||
| Bolt | 55-68 (75-93) | |||||
| Nuts | 109-130 (148-176) | |||||
| Starter Mounting Bolts | 28-38 (38-51) | |||||
| Transmission-To-Engine Block Bolts | 28-38 (38-51) | |||||
| Tunnel Reinforcement | 13-19 (18-26) | |||||
|
||||||
