Inspection

Spark Plug Inspection:

INSPECTION

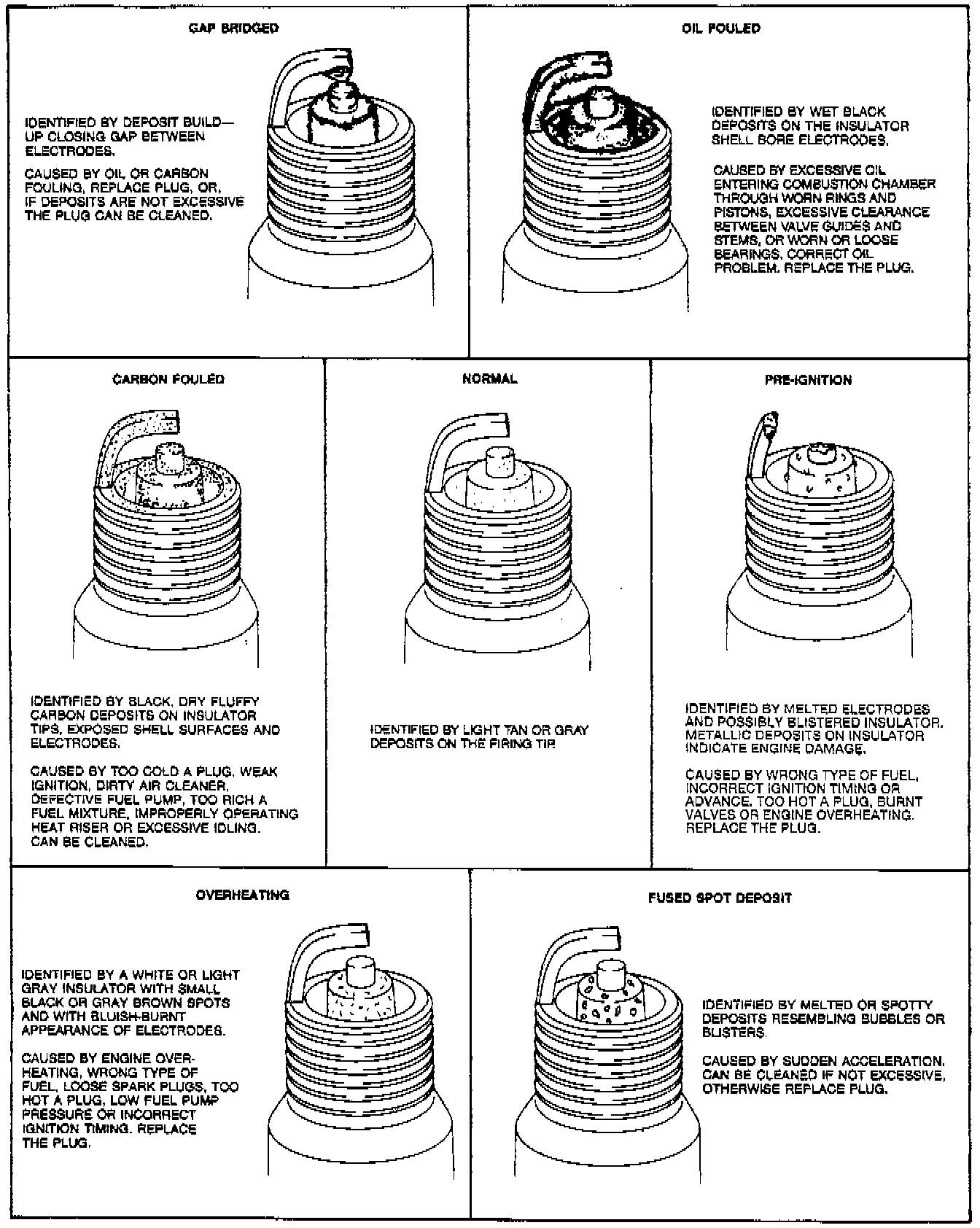

Check the following points. If a problem is found, replace the spark plug.




^ Damaged insulation
^ Worn electrodes
^ Carbon deposits
^ Damaged gasket
^ Burnt

NOTE: If cleaning is necessary, use a plug cleaner or a wire brush. Clean the upper insulator, also.

PLUG GAP
Refer to the Vehicle Emission Control Information (VECI) decal, located in the engine compartment for spark plug gap.
