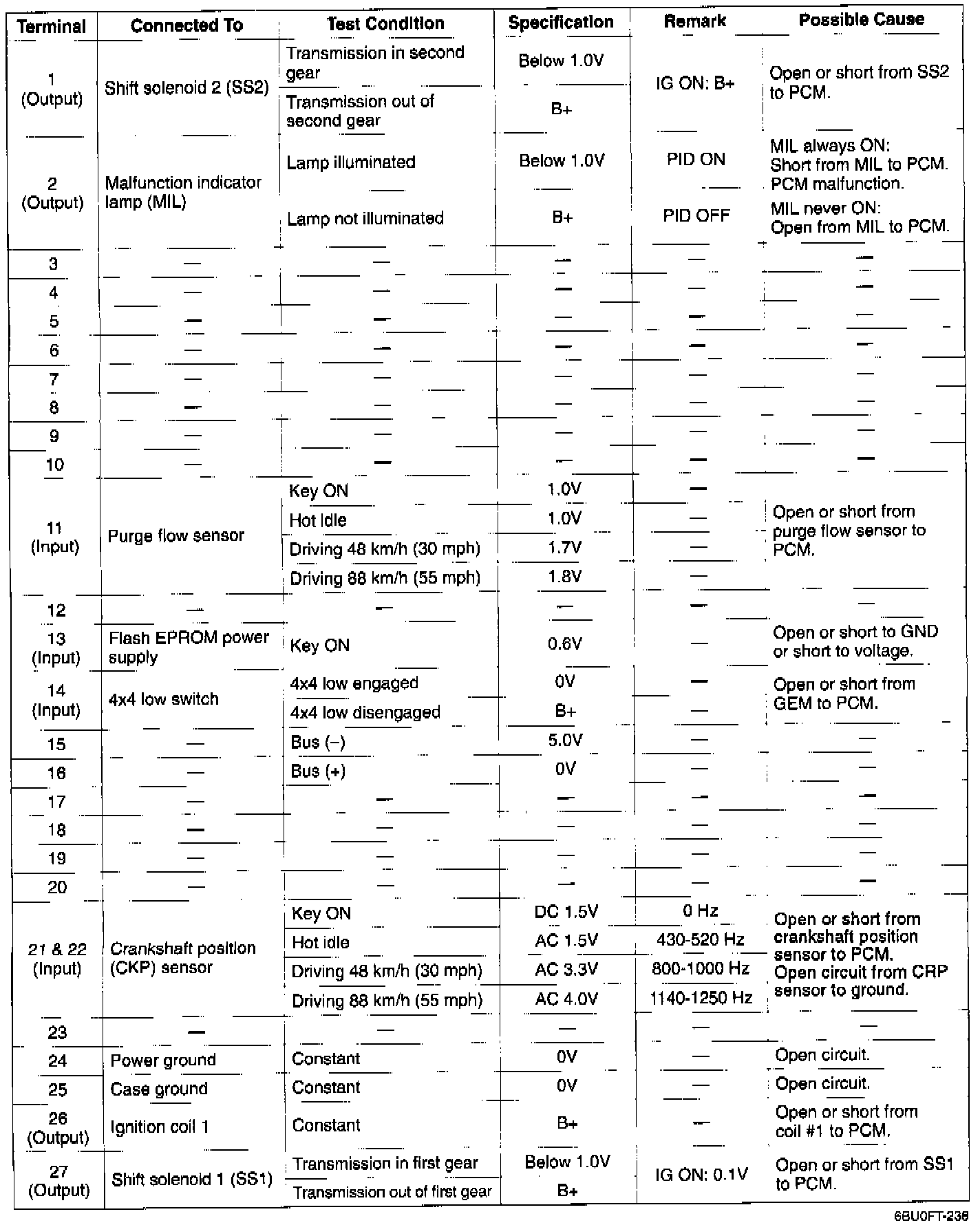

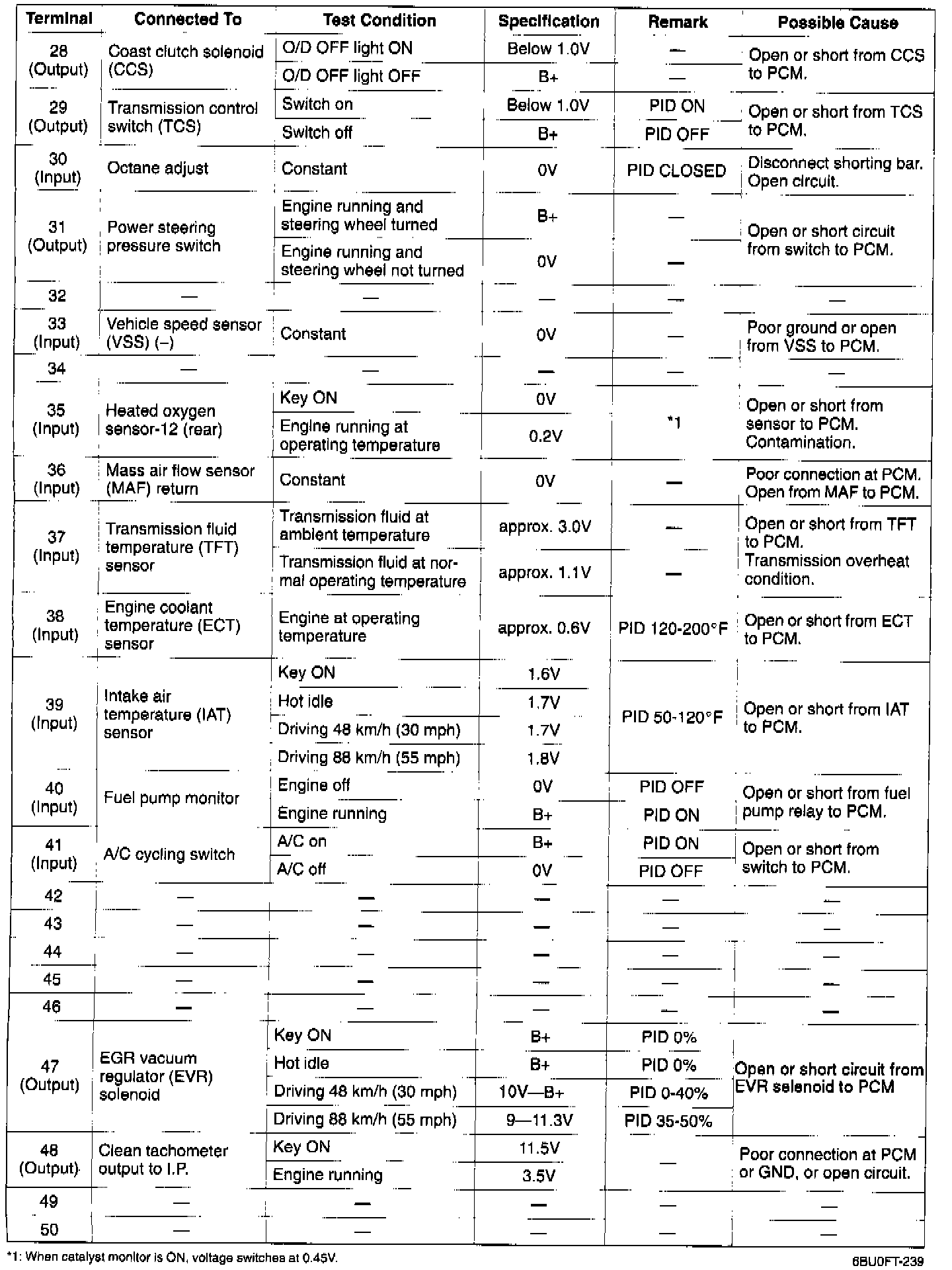

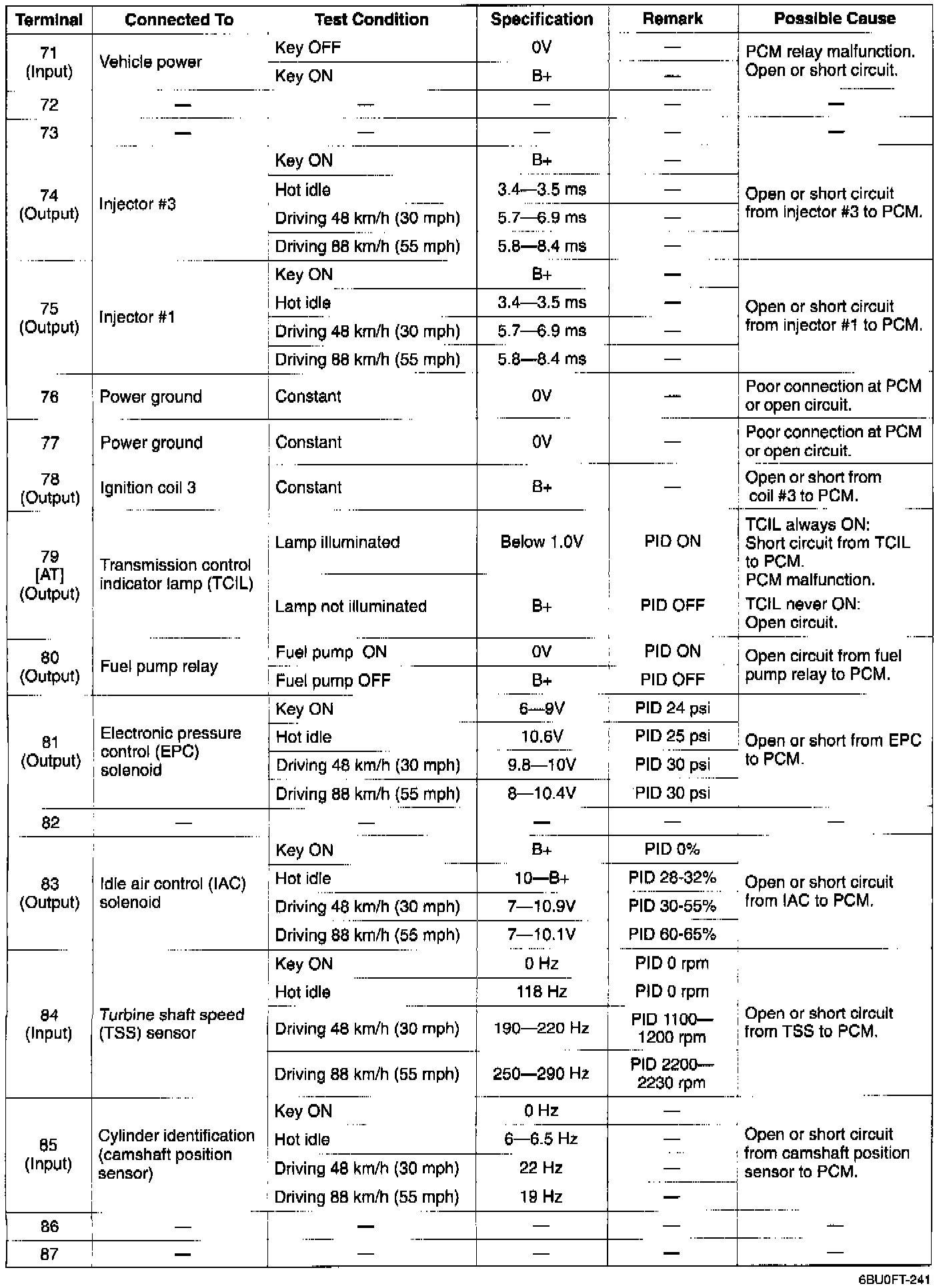

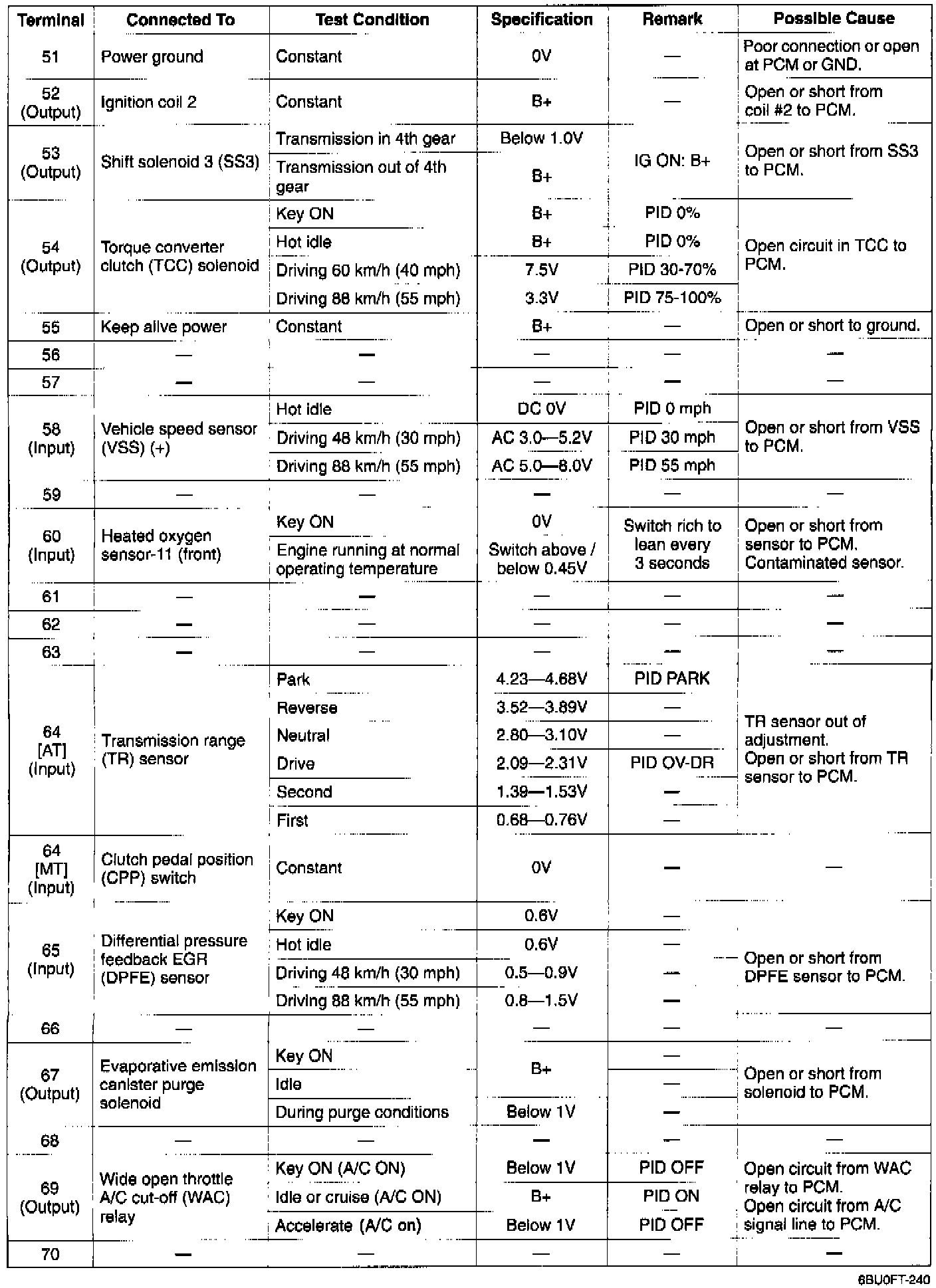

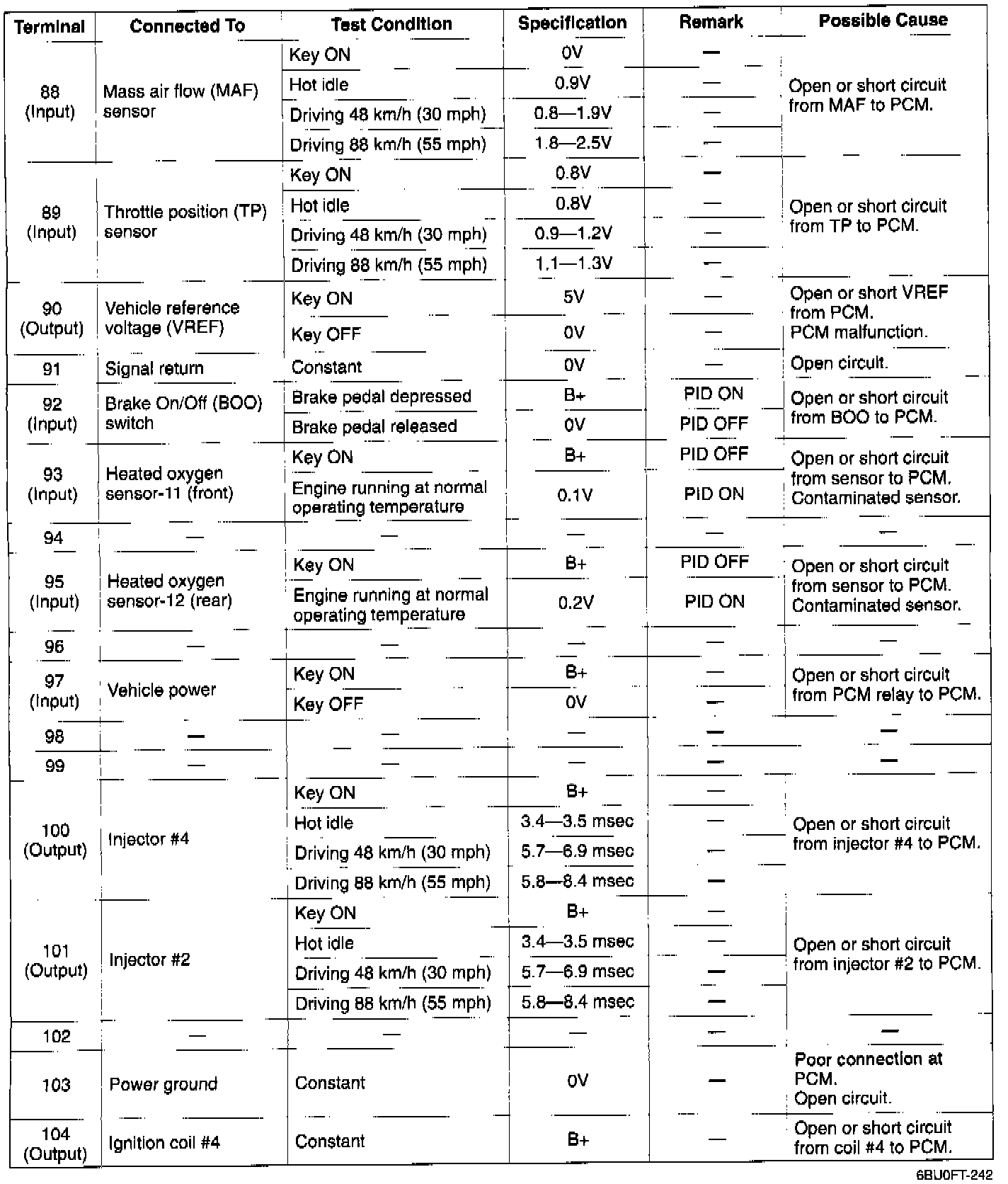

Pinout Values and Diagnostic Parameters
































NOTE: All values shown may vary ± 20% depending on operating conditions and other factors. RPM values are axle and tire dependent.
