Control Switch

Using ohmmeter, check continuity between indicated switch connector terminals when switch is activated as specified. See POWER SEAT SWITCH CONTINUITY . SeeFig 1 . Replace switch if it does not test as specified.

POWER SEAT SWITCH CONTINUITY

Switch Position

Continuity Between Terminals No.

Neutral ⁽¹⁾

1, 3, 4, 5, 6, 7 & 8

Front Up

1 & 2; 3, 4, 5, 6, 7 & 8

Front Down

2 & 7; 1, 3, 4, 5, 6 & 8

Upward

1, 2 & 3; 4, 5, 6, 7 & 8

Downward

2, 7 & 8; 1, 3, 4, 5 & 6

Forward

2 & 6; 1, 3, 4, 5, 7 & 8

Rearward

2 & 5; 1, 3, 4, 6, 7 & 8

Rear Up

2 & 3; 1, 4, 5, 6, 7 & 8

Rear Down

2 & 8; 1, 3, 4, 5, 6 & 7

⁽¹⁾	In Neutral position, terminal No. 2 has no continuity.

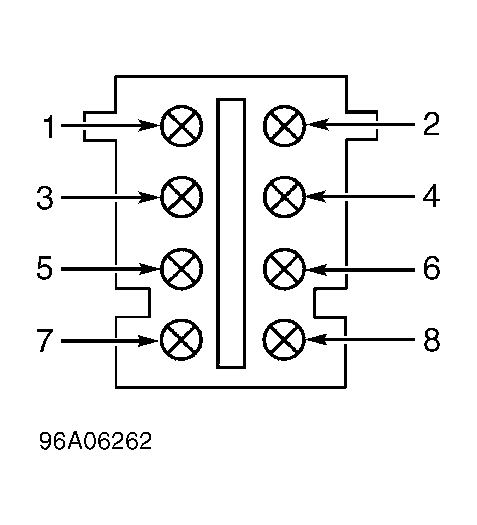

Fig 1: Identifying Control Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.
