Wheel Hubs: Specifications

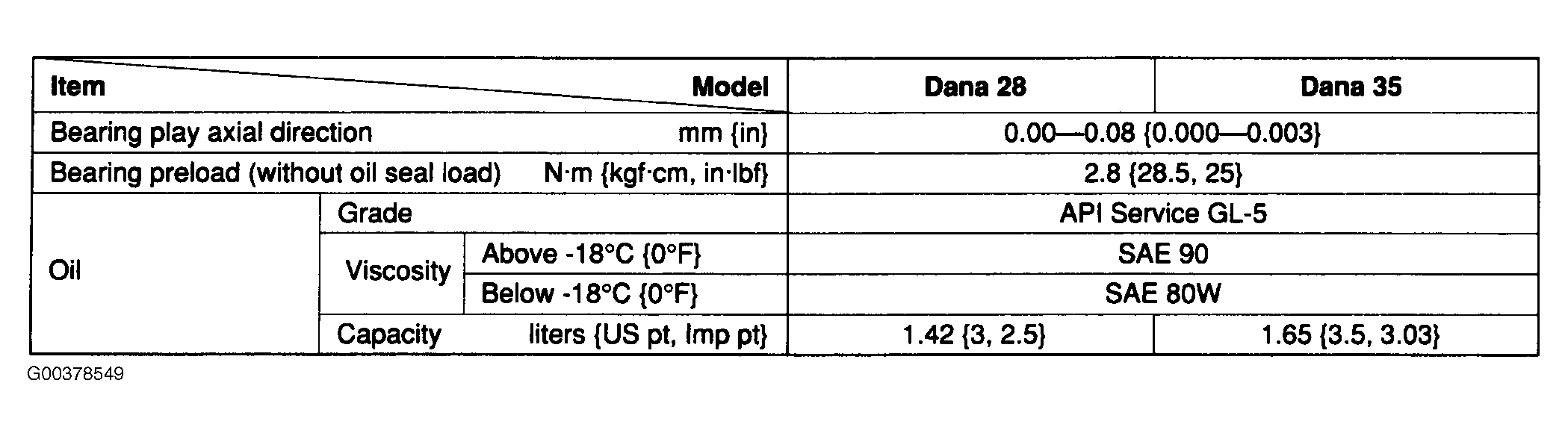

Fig 1: Front 4x4 Axle Specification

G00378549

Courtesy of MAZDA MOTORS CORP.
