Home
>>
Mazda
>>
1996
>>
MPV 4WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Connector Locations
>>
Engine Control System (4/4)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

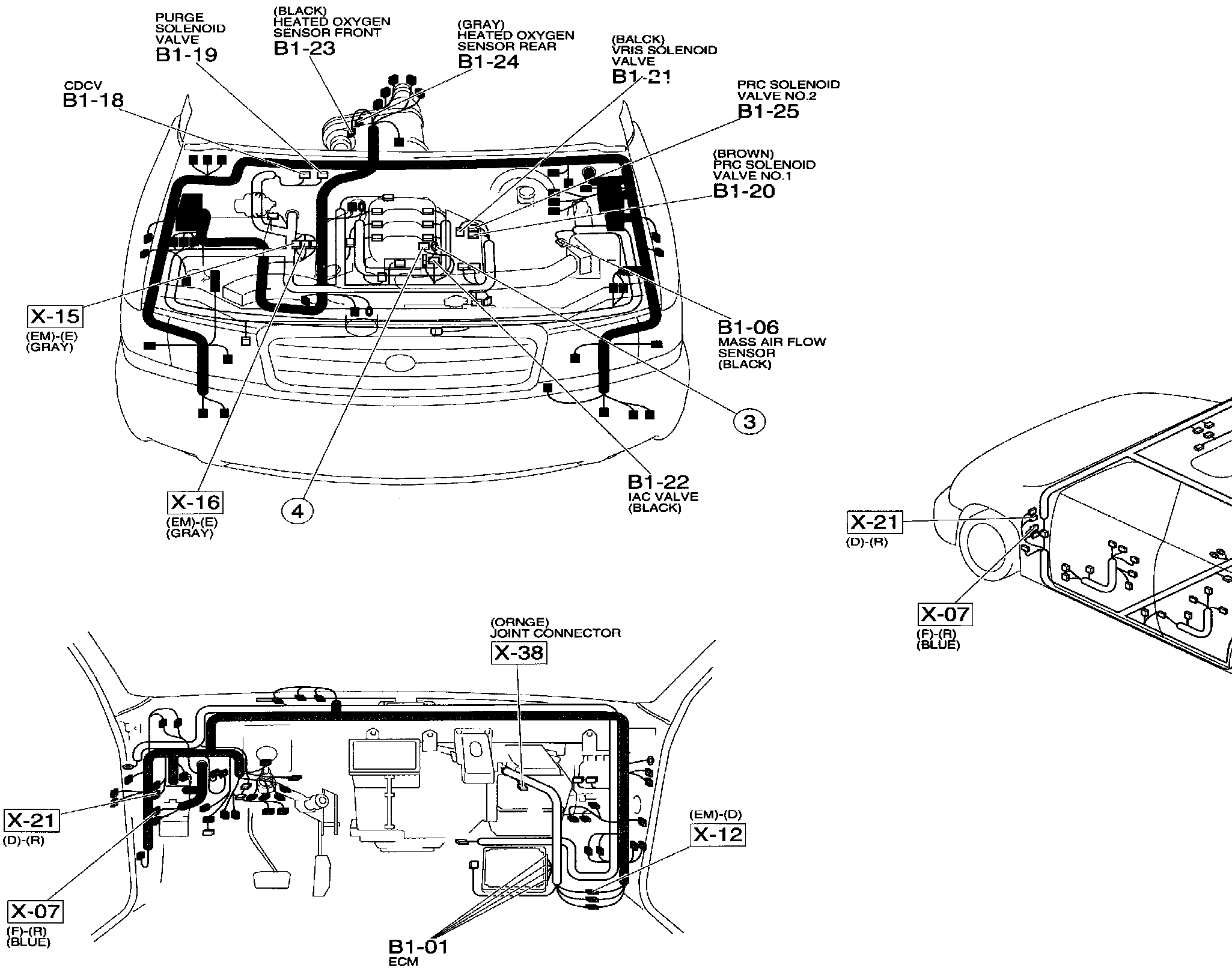

Engine Control System (4/4)
�°�=Connector Locations:
