Testing Continuity

Disconnect 4WD/2WD shift switch connector. Check continuity between terminals "A" and "C". See Fig 2 . With switch released, no continuity should exist. With switch activated (held to left), there should be continuity. If not as specified, replace switch assembly.

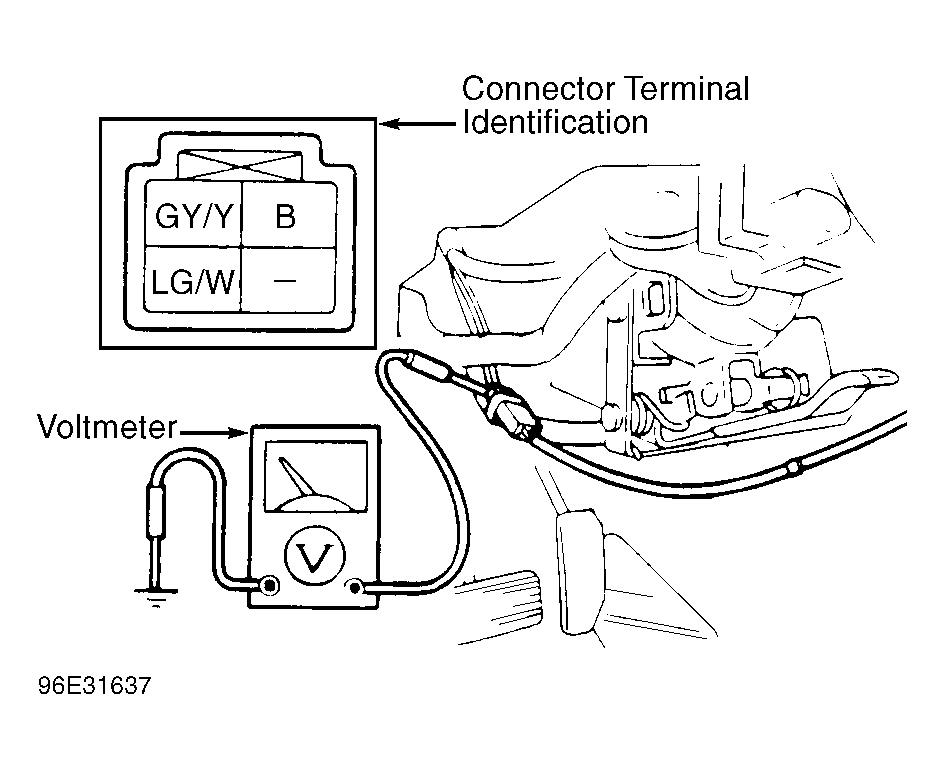

Fig 1: Testing 4WD Shift Switch Testing Terminal Voltage

Courtesy of MAZDA MOTORS CORP.

Fig 2: Testing 4WD Shift Switch Testing Continuity

Courtesy of MAZDA MOTORS CORP.
