Testing Continuity

Remove connector from switch. Check switch continuity between terminals. With switch in ON position there should be continuity. With switch in OFF position, no continuity should exist. If not as specified, replace switch assembly.

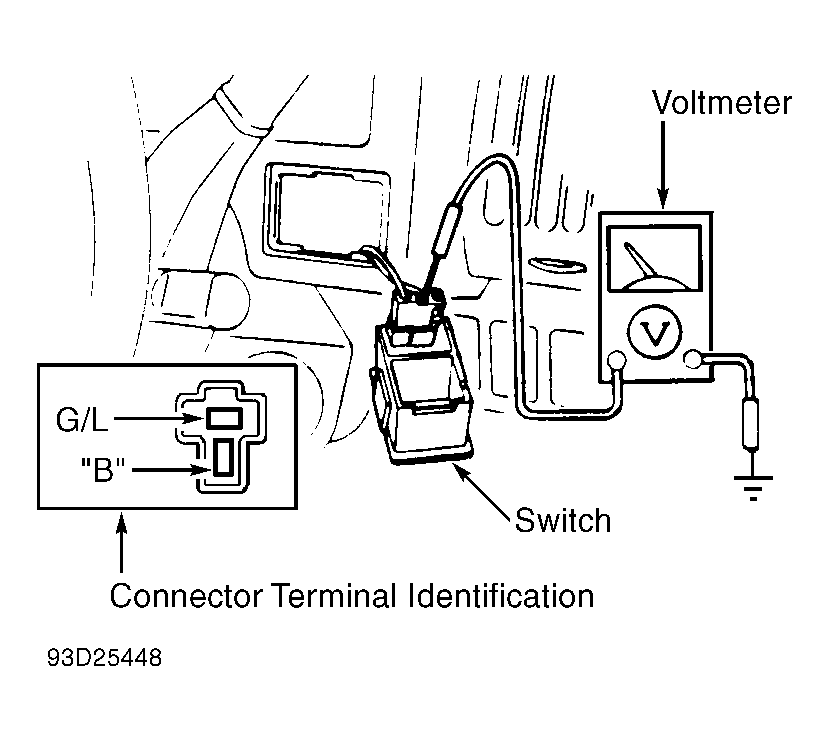

Fig 1: Testing Center Differential Lock Switch

Courtesy of MAZDA MOTORS CORP.
