Socket Installation Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hook the harness as shown in Fig 1.

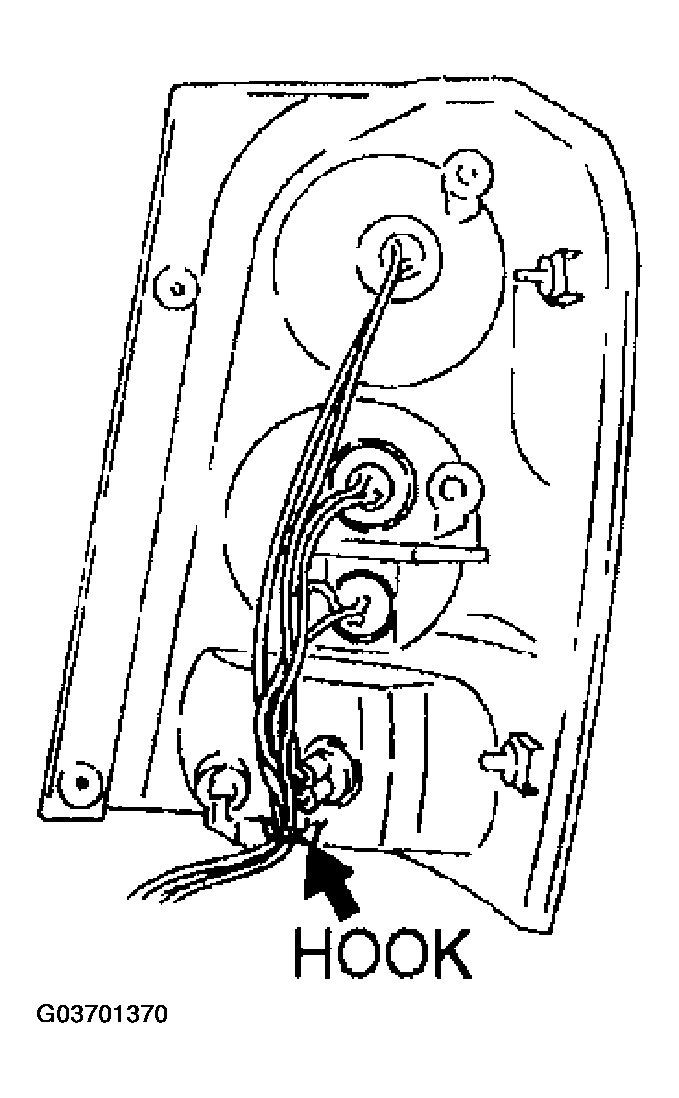

    Fig 1: Hooking Harness
    G03701370Courtesy of MAZDA MOTORS CORP.
