Mil Illuminated W/DTC P0421 - Pcm Reprogram/Catalyst (F005/98)

Publication date: 1998-12-23
Reference number: F005/98
Supersedes refnos: CAT. F, NO. 005/98, CAT. F, NO. 029/97

MIL ILLUMINATED W/DTC P0421 - PCM REPROGRAM/CATALYST

TECHNICAL SERVICE BULLETIN

Reference Number(s): CAT. F, NO. 005/98, Date of Issue: December 23, 1998

HONDA:	1996-97 Mazda 626/MX-6
SECTION:	F (01) - Fuel & Emission Control System
BULLETIN NO.:	005/98

Superceded Bulletin(s): F 005/98

NOTE: This bulletin replaces F029/97. Please update your records accordingly.

VEHICLES AFFECTED

All 1996-97 626/MX-6 vehicles with FS engine and automatic transmission.

DESCRIPTION

The MIL may illuminate while driving with DTC P0421 stored in the Powertrain Control Module (PCM) memory. This may be caused by the PCMs sensitivity and can be affected by degraded performance of the front 3-way catalytic converter. A modified PCM calibration is available to reduce this concern. Customers complaining of this concern should have their vehicle repaired using the following procedure.

REPAIR PROCEDURE

Using the flowcharts in Fig 1 and Fig 2, reprogram the PCM and monitor the 02 sensor fluctuation to determine the condition of the front catalytic converter.

Fig 1: Flowchart of Repair Procedure-MIL Illumination With DTC P0421

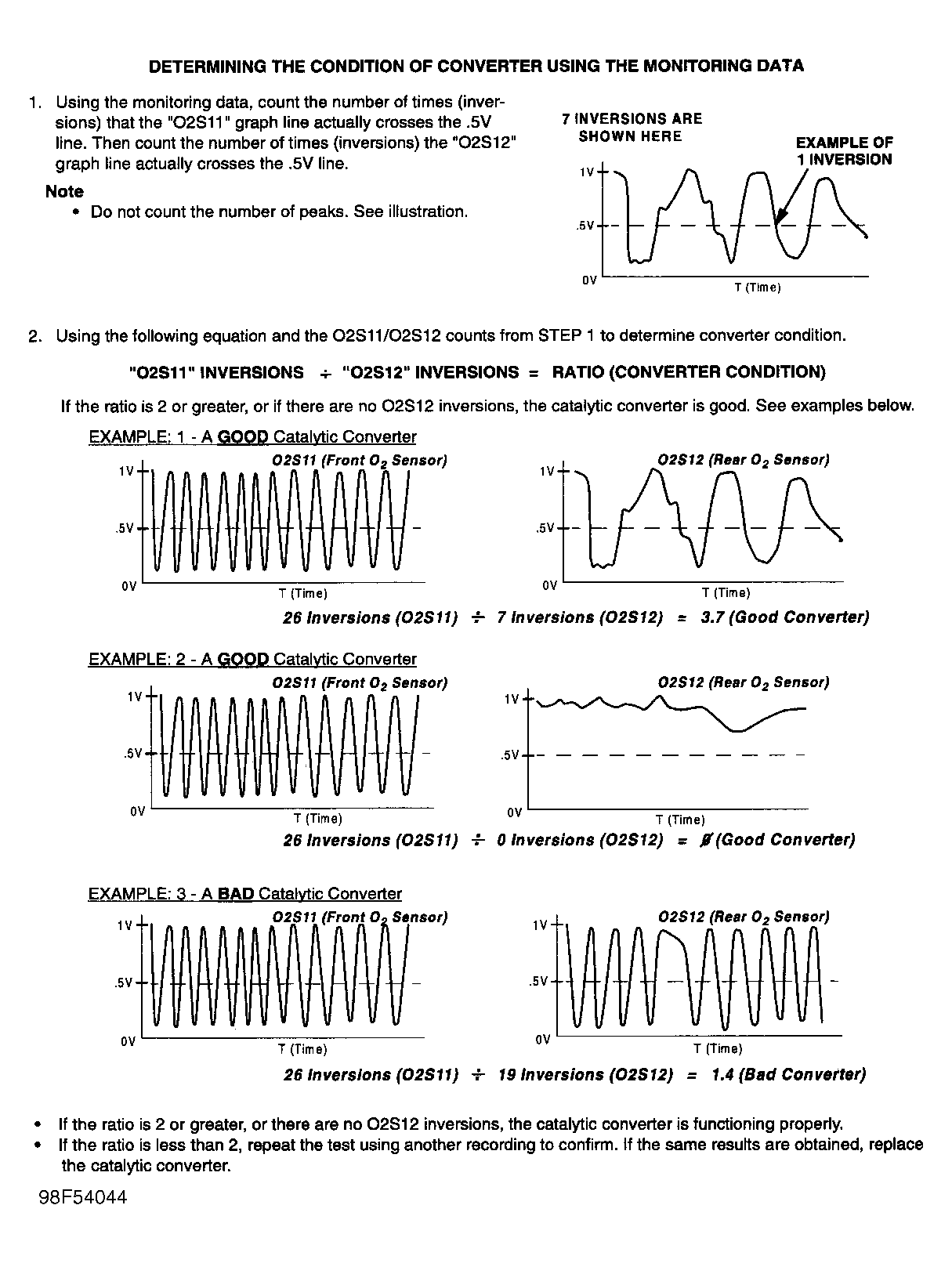

Fig 2: Determining the Condition of Converter

PARTS INFORMATION

Part Number	Description	Qty.	Notes
FSY1 18 881R 0A	Powertrain Control Module (Reman)	1	1996 Federal
FSY2 18 881R 0A	Powertrain Control Module (Reman)	1	1996 California
FS23 18 881	Power Control Module	1	1997 Federal
FS28 18 881	Power Control Module	1	1997 California
B6CK 20 500B	Front 3-Way Catalytic Converter	1	1996-97 Federal/ California

WARRANTY INFORMATION

Note: * This information applies to verified customer complaints on

vehicles covered under normal warranty. Refer to the SRT

microfiche for warranty term information.

* If catalytic converter and/or PCM is replaced, claim as related parts.

WARRANTY INFORMATION

Warranty Type	A
Symptom Code	6X
Damage Code	9W
Part Number Main Cause	5555 FL 0421
Quantity	0
Operation Number(s)/ Labor Hours	YY145XRX / 0.7 Reprogram and/or Replacement of PCM XX871XRX / 0.8 Catalytic Converter Monitoring F0702BRX / 0.9 Catalytic Converter Replacement (if necessary)
