Front Fog Light Bulb Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is soiled, excessive heat will build up and the light's life will be shortened. When replacing the bulb, hold the metal flange, not the glass.

Disconnect the negative battery cable.
Remove the mud guard.
Remove in the order indicated in the table.
Standard

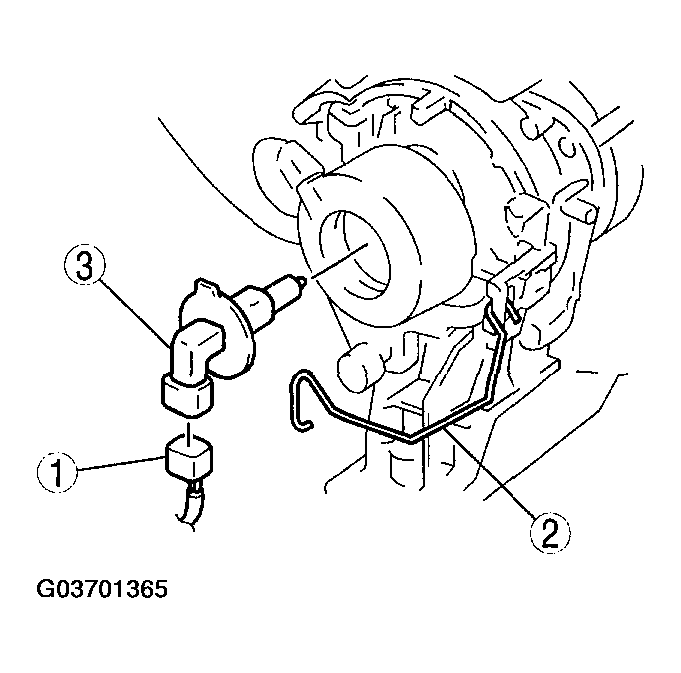

Fig 1: Removing Front Fog Light Bulb (Standard)
Courtesy of MAZDA MOTORS CORP.

Sports

Fig 2: Removing Front Fog Light Bulb (Sport)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
