Cover Installation Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cover with the 'TOP' mark facing up.

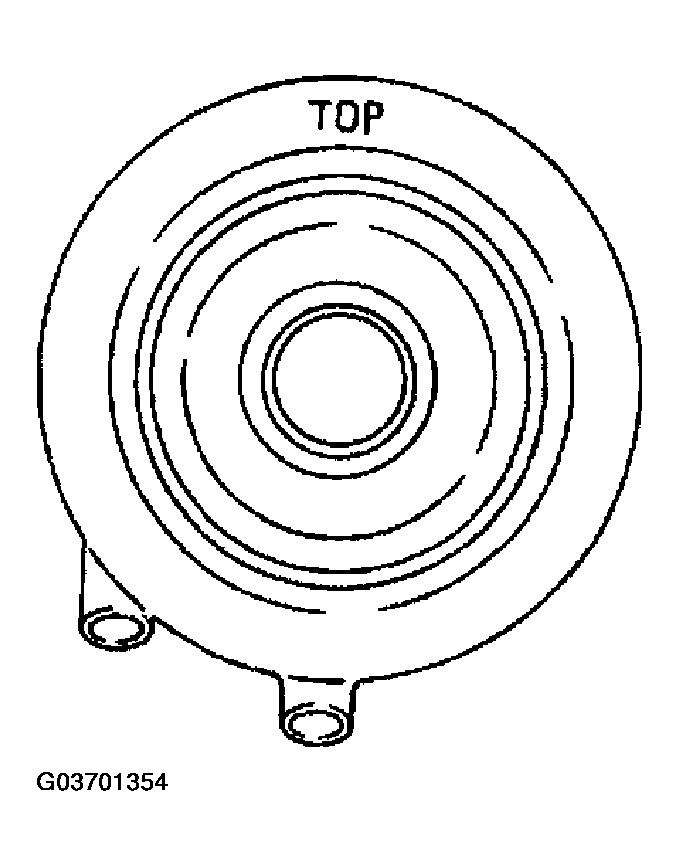

    Fig 1: Identifying Headlight Cover Top Mark Position
    G03701354Courtesy of MAZDA MOTORS CORP.
