Light Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
Inspect for continuity between the light switch terminals using an ohmmeter.
- If not as specified, replace the light switch.

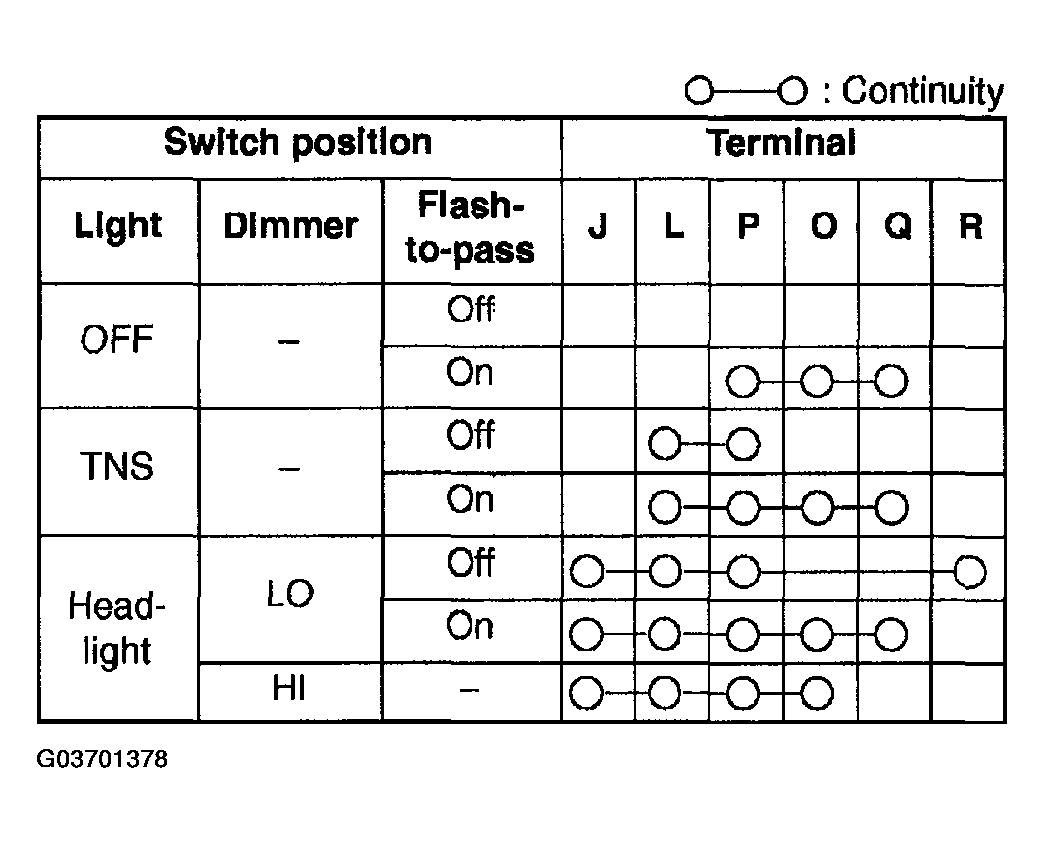

Fig 1: Inspecting Headlight Switch (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

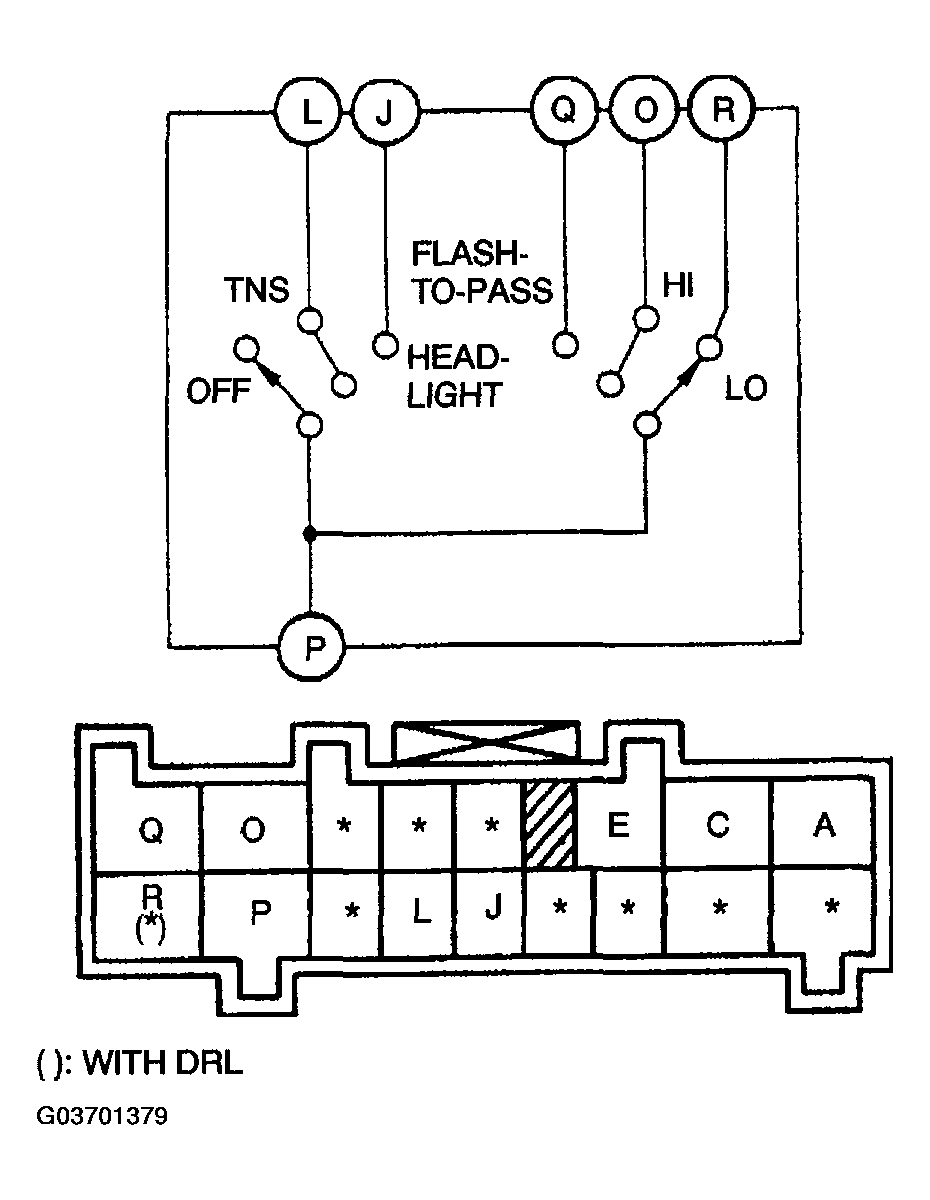

Fig 2: Inspecting Headlight Switch (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 3: Inspecting Turn Switch (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 4: Inspecting Turn Switch (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

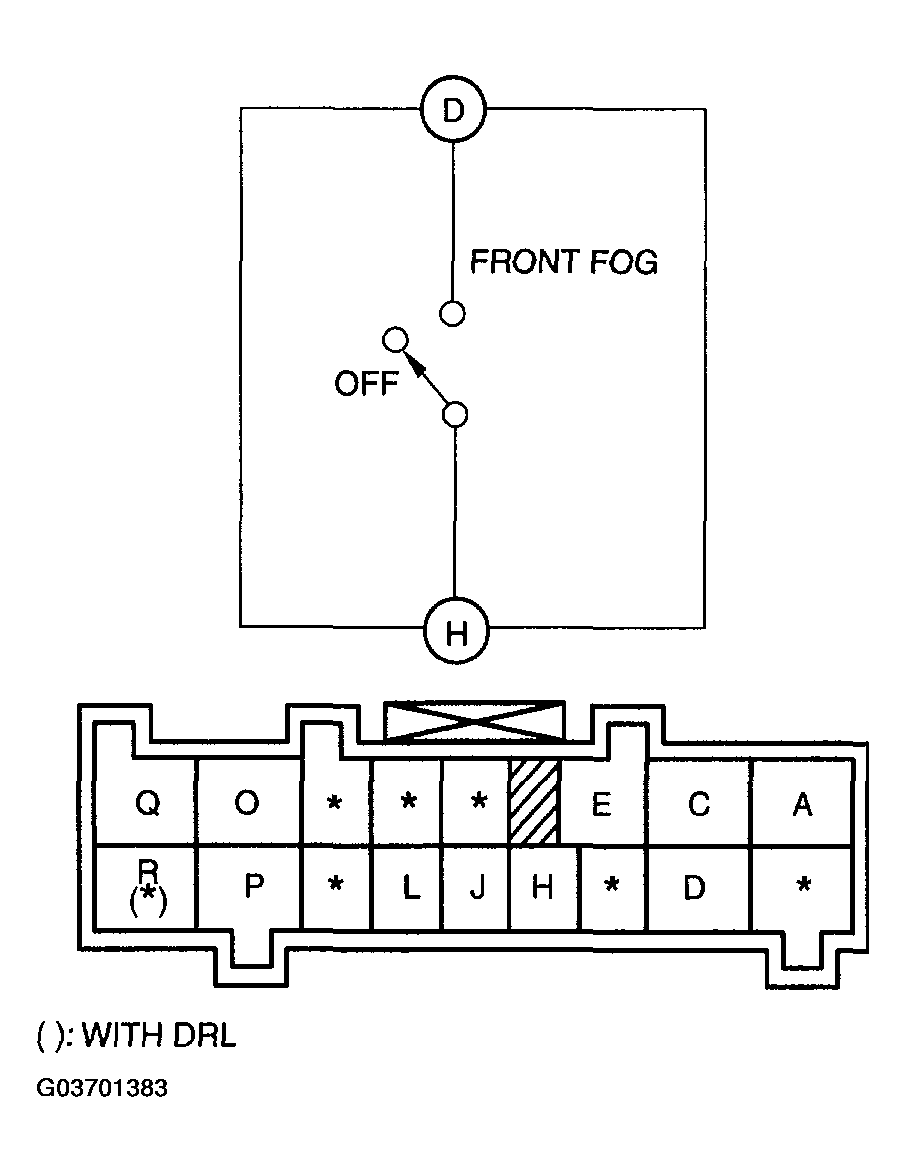

Fig 5: Inspecting Front Fog Light Switch (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 6: Inspecting Front Fog Light Switch (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
