Main Switch

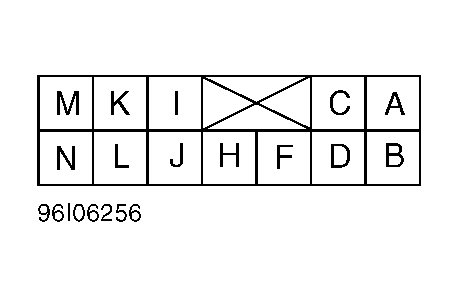

Check continuity across specified terminals of main switch connector with main switch button held in specified position. See MAIN SWITCH CONTINUITY TEST . SeeFig 1 . Replace main switch if continuity is not as specified.
MAIN SWITCH CONTINUITY TEST
| Switch Position | Terminals | |
|---|---|---|
| Driver | ||
| UP | F & N; H & L | |
| Off (Neutral) | F, L & N | |
| DOWN | F & L; H & N | |
| AUTO DOWN | F & L; H & N | |
| Passenger | ||
| UP | D & H; B & F | |
| Off (Neutral) | B, D & F | |
| DOWN | B & H; D & F | |
| Left Rear | ||
| UP | F & K; J & M | |
| Off (Neutral) | A, K & M | |
| DOWN | F & M; J & K | |
| Right Rear | ||
| UP | A & J; C & F | |
| Off (Neutral) | A, C & F | |
| DOWN | A & F; C & J | |
