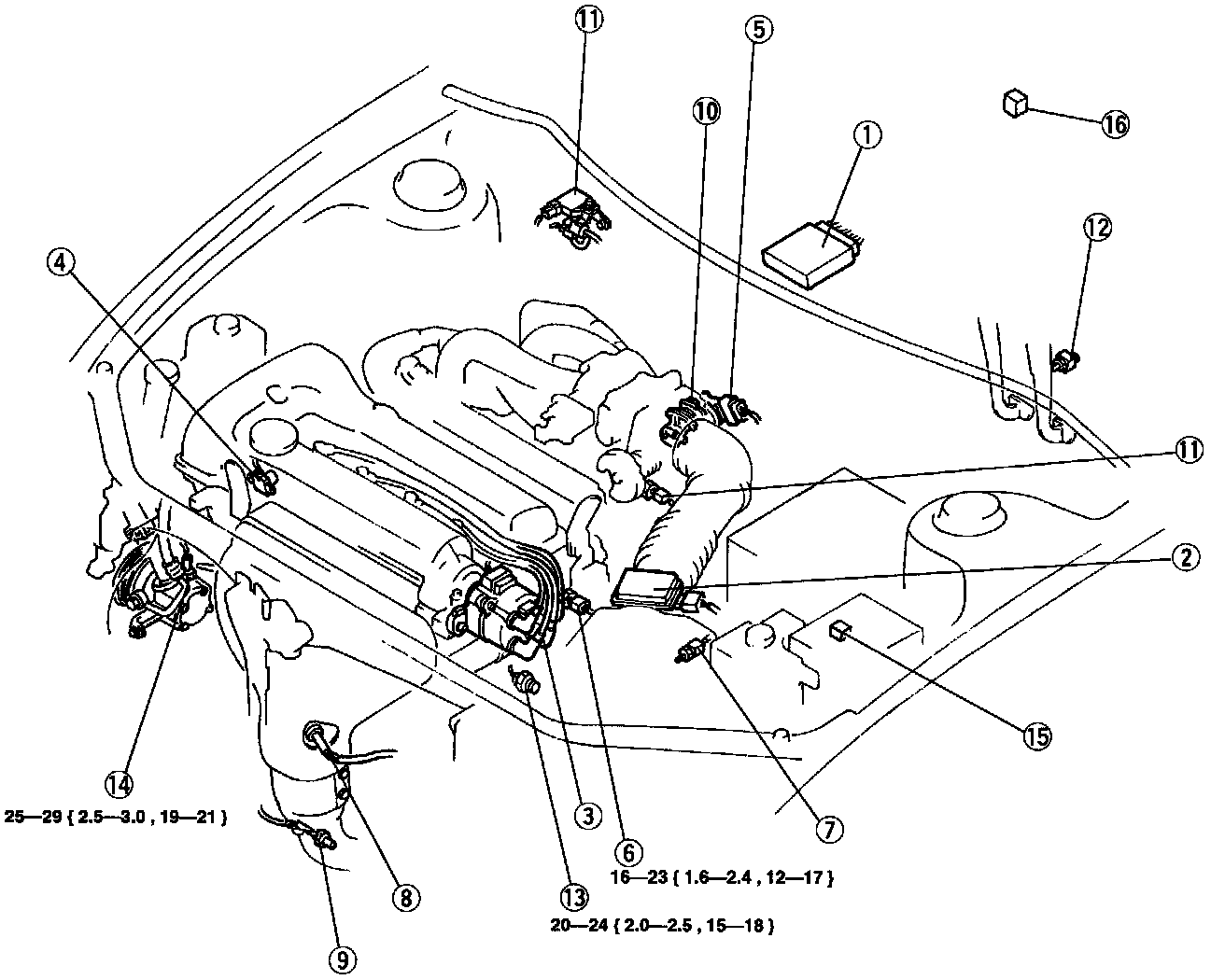

Air Flow Meter/Sensor: Locations

1. Powertrain control module (PCM)
2. Mass air flow sensor
3. Camshaft position sensor
4. Crankshaft position sensor
5. Throttle position sensor
6. Engine coolant temperature sensor
7. Intake air temperature sensor
8. Heated oxygen sensor (Front)
9. Heated oxygen sensor (Rear)
10. EGR valve position sensor
11. EGR boost sensor
12. Clutch switch
13. Neutral switch
14. Power steering pressure switch
15. Main relay
16. Fuel tank pressure sensor
