Engine Control System, EC-at Control System
>>
B-1B
>>
B1-01
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
B1-01

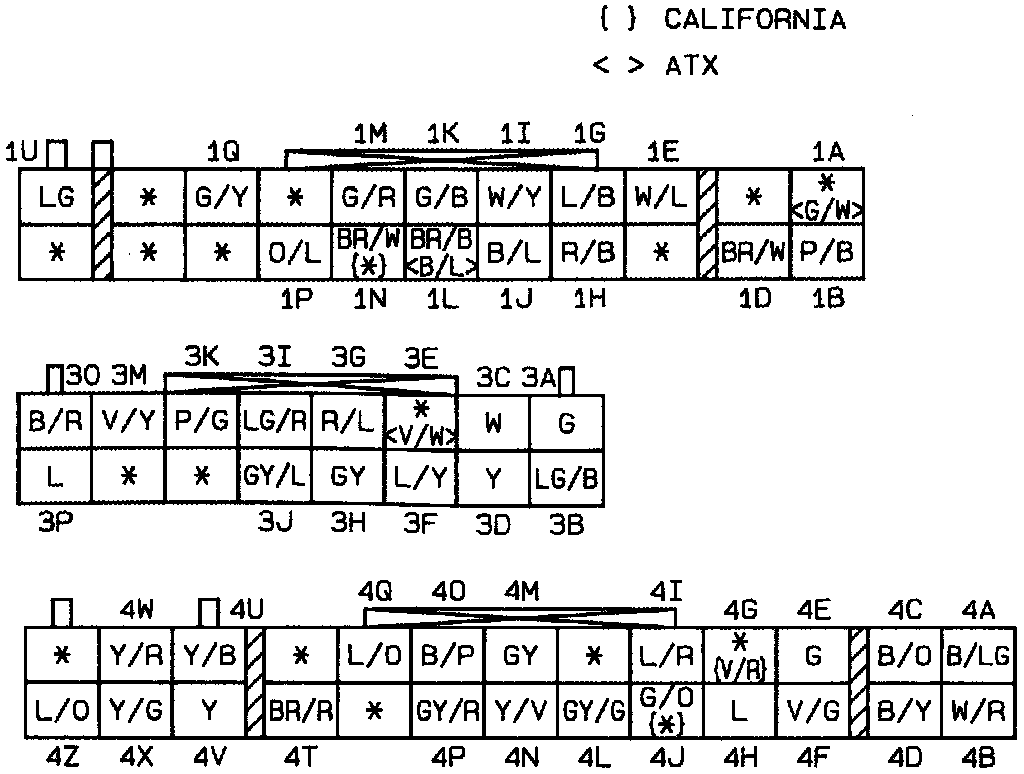

B1-01 PCM (EM):
