Barometric Pressure Sensor: Service and Repair

ENGINE COMPARTMENT AREA
- Disconnect the negative battery cable.

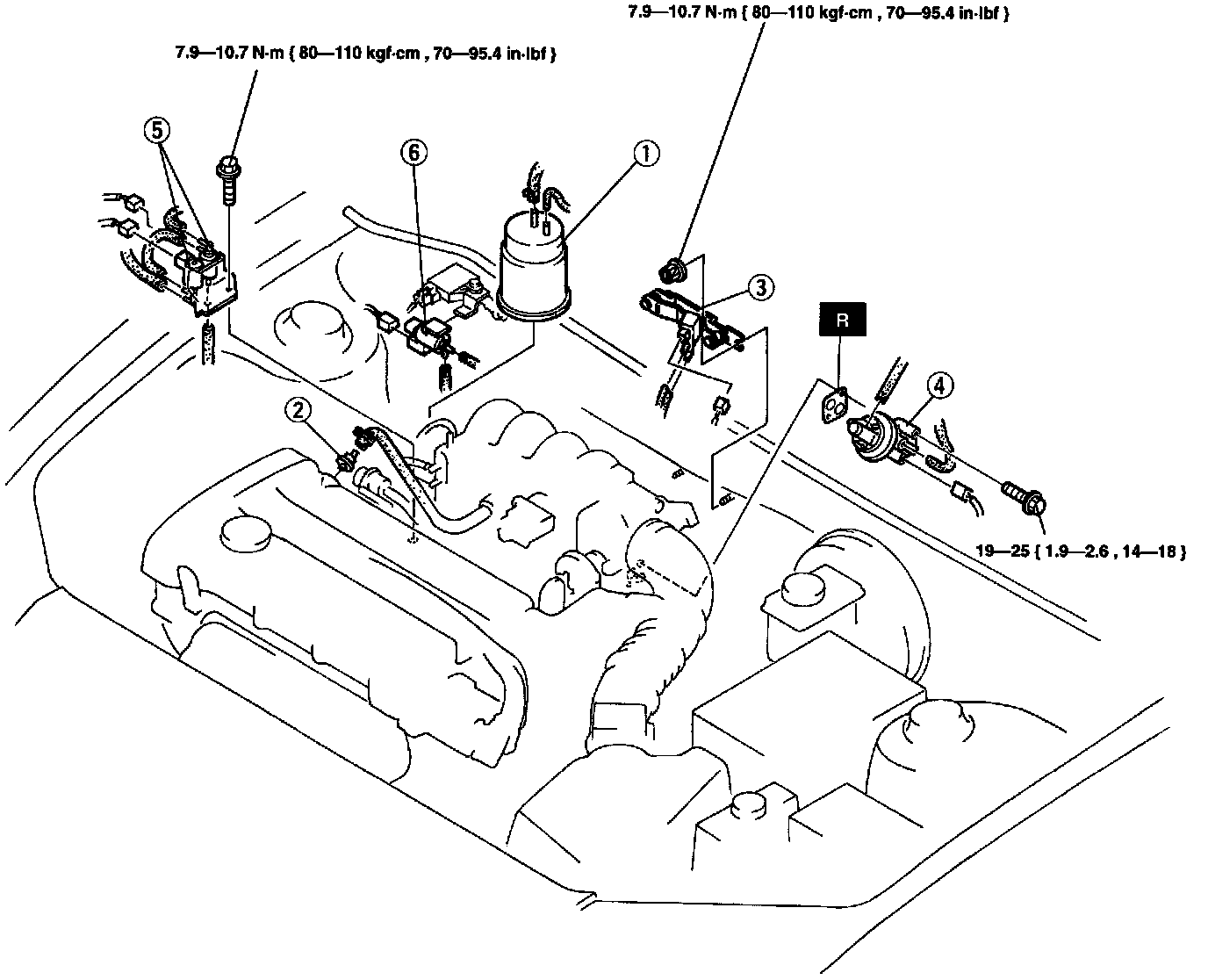

- Remove in the order shown in the figure.
- install in the reverse order of removal.




1. Catch tank
2. PCV valve
3. Purge solenoid valve
4. EGR valve
5. EGR solenoid valve
6. EGR boost sensor solenoid valve
