Oxygen Sensor: Service and Repair

REMOVAL/INSPECTION/INSTALLATION

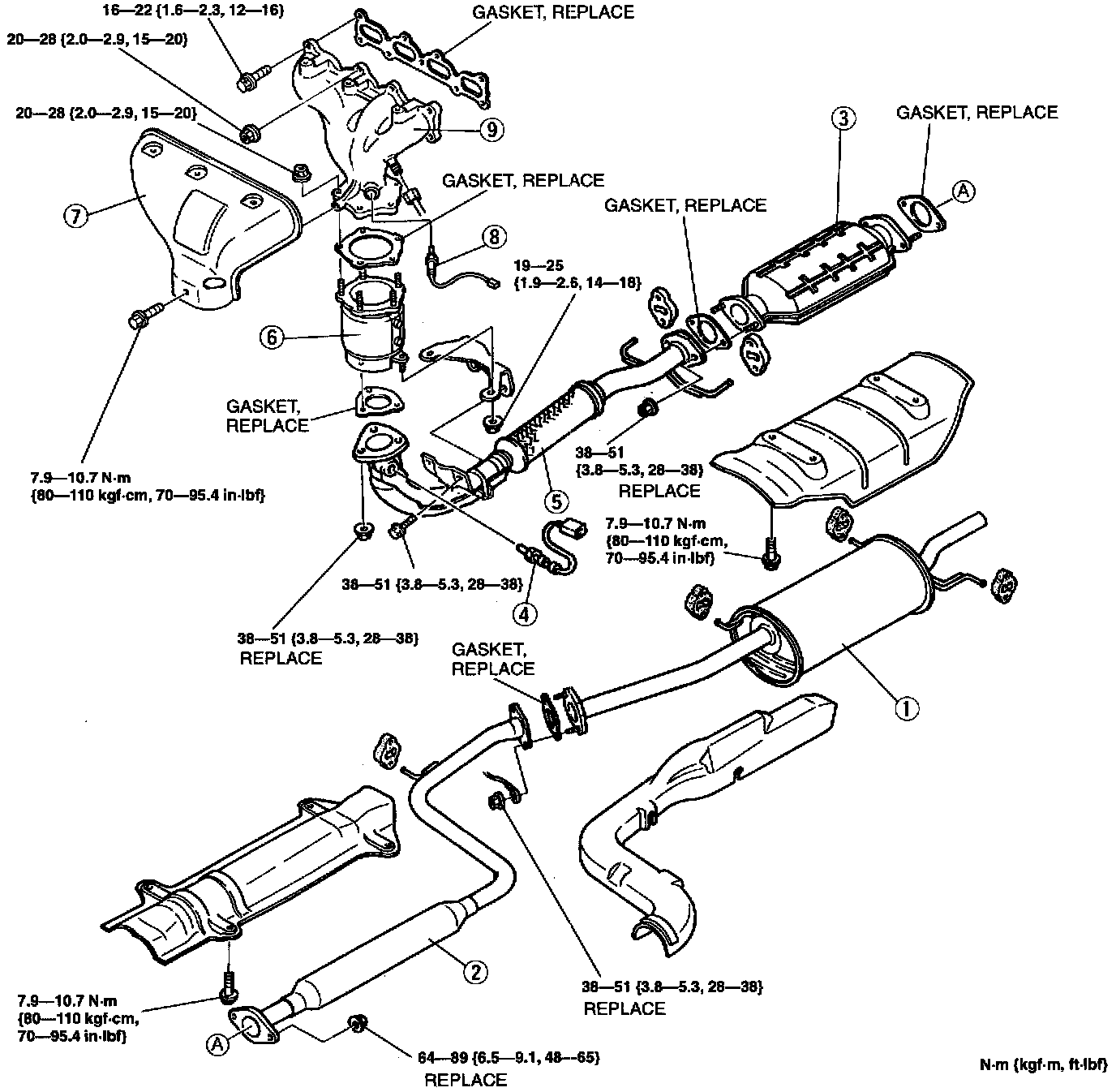

1. Remove in the order shown in the figure.
2. Inspect all parts and repair or replace as necessary.
3. Install in the reverse order of removal.




1. Main silencer
2. Presilencer
3. Three way catalytic convener
4. Heated oxygen sensor (rear)
5. Front pipe assembly
6. Warm up three way catalytic converter
7. Exhaust manifold insulator
8. Heated oxygen sensor (front)
9. Exhaust manifold
